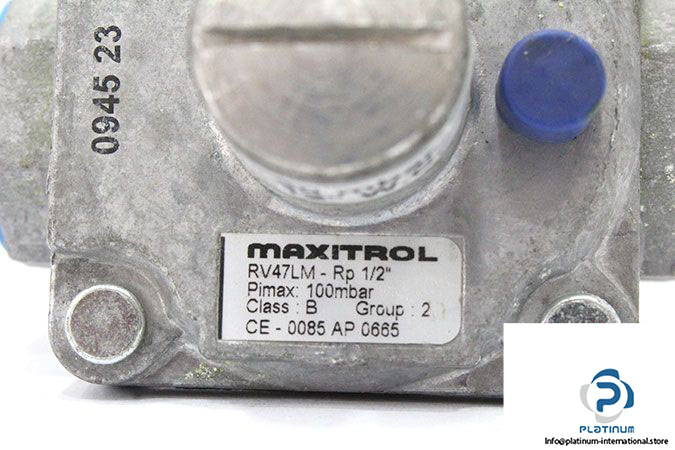

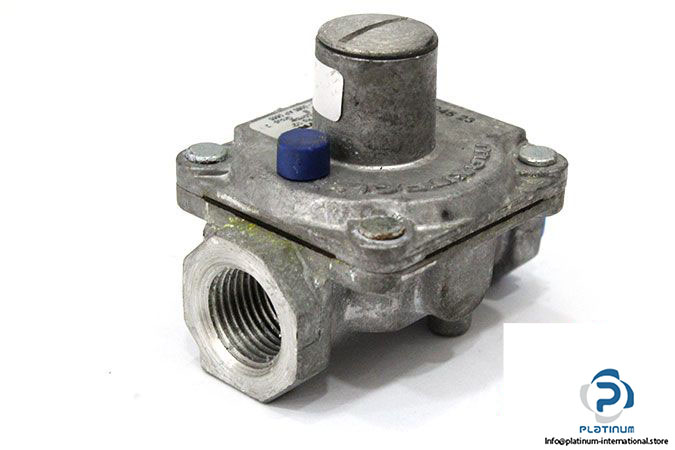

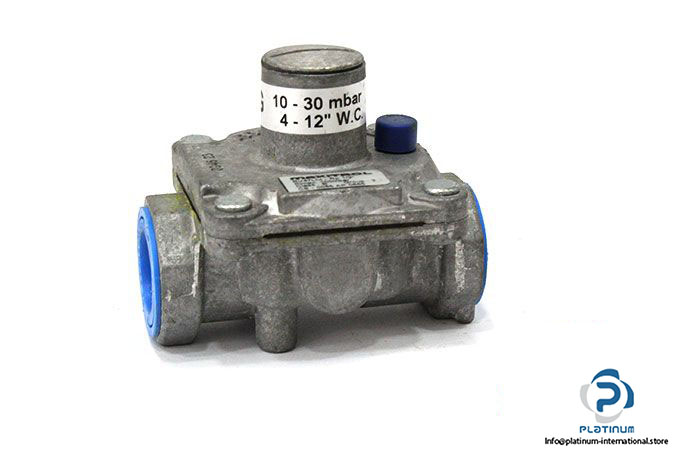

MAXITROL RV47LM-Rp1/2 POPPET REGULATOR

Manufacturer: MAXITROL

Type: Threaded Gas Filter

Model: RV47LM-Rp1/2”

Uses: Suitable for main burner and pilot load applications.

Applications: residential and commercial cooking appliances, hearth products, pilot lines, and residential water heaters.

Size: DN15 Rp ½

Connection: Rp internal thread connection to ISO 7-1/ EN 10226-1

Medium: Gas family 1,2 and 3 according to EN 437

Capacity: 2.2 m³/h air

Inlet pressure:  max. 100 mbar

Outlet pressure: 0.0025-0.03 bar

Housing material: Aluminum

Protection Class: IP 54

Ambient temp.: -15 °C … 80 °C

Weight: 0.17 kg
