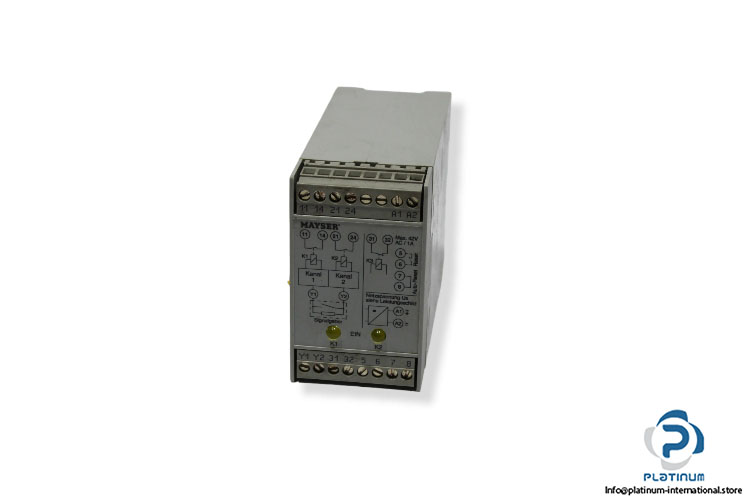

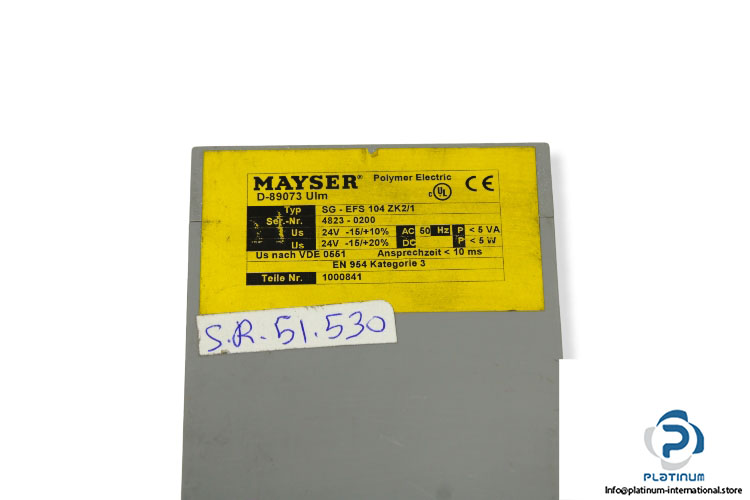

Mayser SG-EFS 104 ZK2/1 Control Unit

Manufacturer: MAYSER
Type: Control Unit
Model: SG-EFS104ZK2/1
Part No: 1000841

Nominal Voltage: 24 V AC/DC
Nominal Frequency: 50 Hz
Nominal Current: (AC) 220 mA / (DC) 112 mA
Power Consumption: 6 VA / 4 W
Reaction Time: 10 ms
No. of Channels: 2 Normally Open (NO)
Switching Ratting (NO): 250 VAC, 24 VDC, 2 A, 500 VA, 48 W
Signal Circuit: 1 Normally Closed (NC)
Switching Ratting (NC): 42 V AC/DC, 100 mA
Degree of Protection: IP20
Operating Temperature: -20 … 50 °C
Dimensions: 45 x 75 x 105 mm
