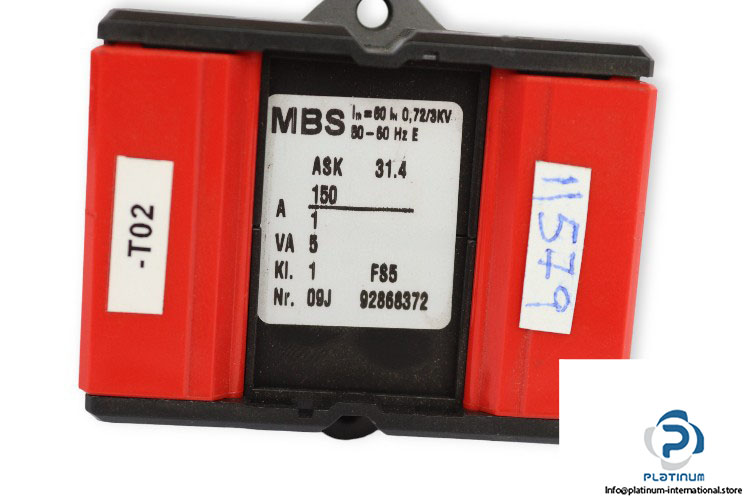

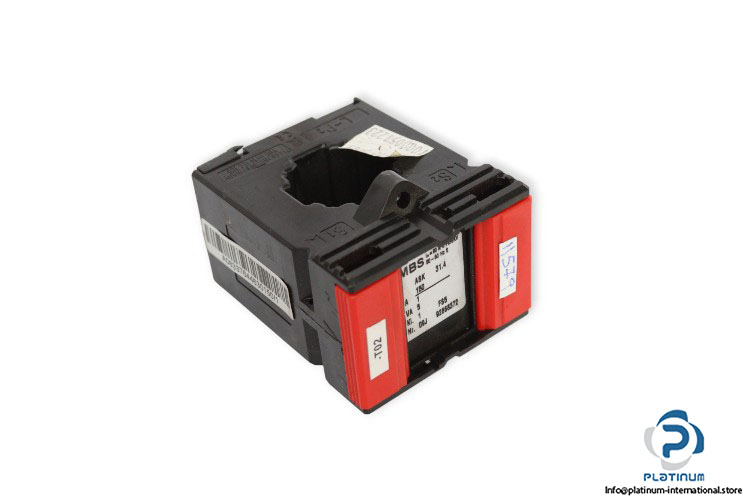

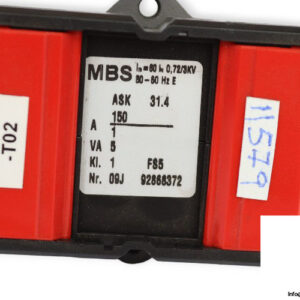

MBS ASK 31.4 150A Current Transformer

Manufacture: Mbs
Type: Current transformer
Model: ASK31.4
Part No.: 09J 92868372 / F85

Rated Power Burden: 5 VA
Rated Primary Current: 150 A
Rated Secondary Current: 1 A
Thermal nominal continuous current Icth: 1,0 x Ipr
Thermal nominal short-time current Ith: 60 x Ipr, 1 Sec.
Max. operating voltage Um: 0,72 kV
Isolation test voltage: 3 kV, Ueff, 50 Hz, 1 Min.
Nominal rated frequency: 50/60 Hz
Isolation class: E
Nickel-plated secondary terminals with plus-minus nickel-plated Screws: M5x10mm
Working temperature range: -5 … +50°C
Dimensions: 60 x 75.5 x 58 mm
