Mcmillan 111 Liquid Flow Meter
Gebraucht
Auf Lager1 EinheitVersandbereit
199,99$
Liquid Flow Meter
Compact liquid flow meter with integrated LCD display, analog 0“5 V DC output, and wide measuring range for industrial and laboratory flow monitoring applications.
Umfangreiches Lager
Weltweiter Versand
Experten-Support
Qualitätsgarantie

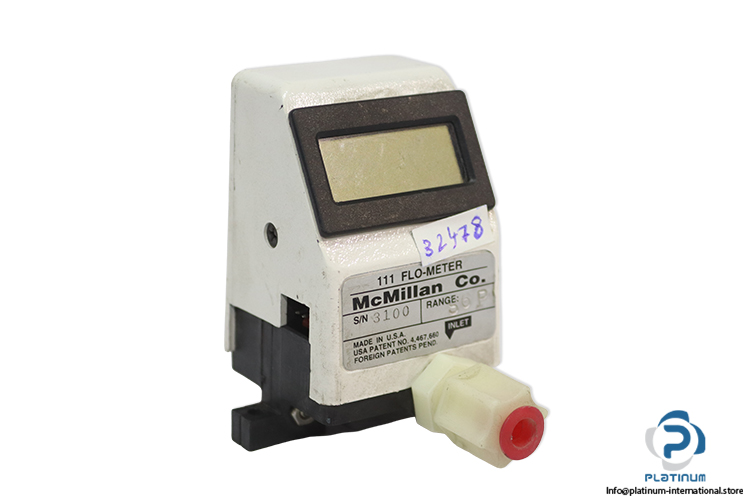

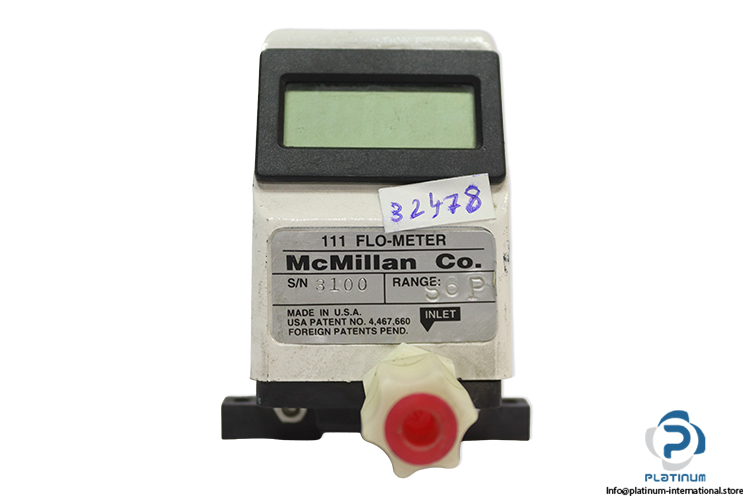

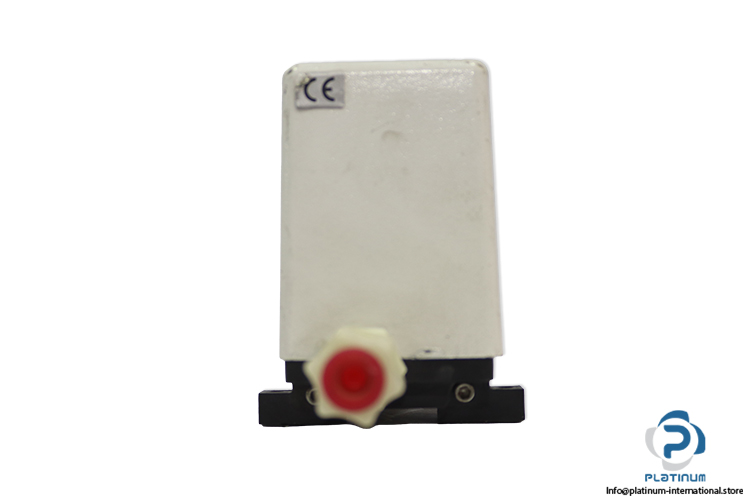

MCMILLAN 111 Liquid Flow Meter
The MCMILLAN 111 liquid flow meter is a compact and precise measurement device designed for monitoring low to medium liquid flow rates in industrial and laboratory applications. It features an integrated backlit LCD display and analog signal output for easy system integration and real-time flow monitoring.
Manufacturer: MCMILLAN
Type: Liquid Flow Meter
Model: 111
| Flow Measuring Range | 13 mL/min / 10 L/min |
| Maximum Pressure | 100 PSIG (6.9 barg) |
| Filtration Grade | 25 microns |
| Power Supply | 12 / 24 V DC |
| Signal Output | Analog 0“5 V DC |
| Integrated Display | 128 × 32 Pixel Backlit LCD |
| Electrical Connection | Integrated 4-Pin Male Connector |
| Protection Class | IP10 |
| Operating Temperature | 5 / 55 °C |
| Dimensions | 47.8 x 44.45 x 76.2 mm |
