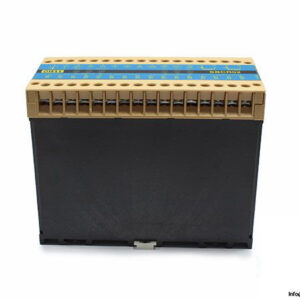

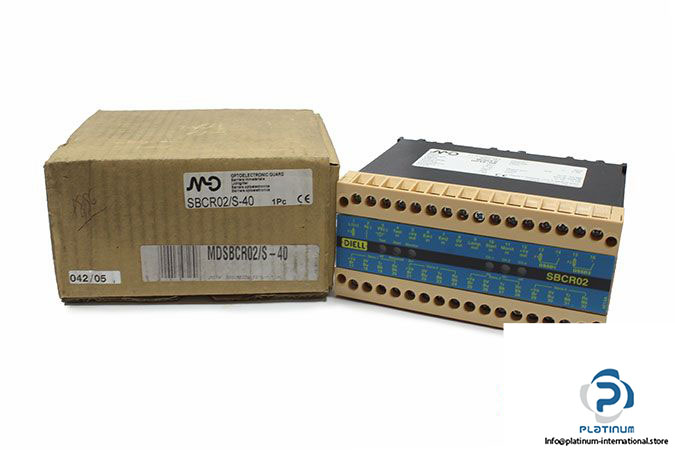

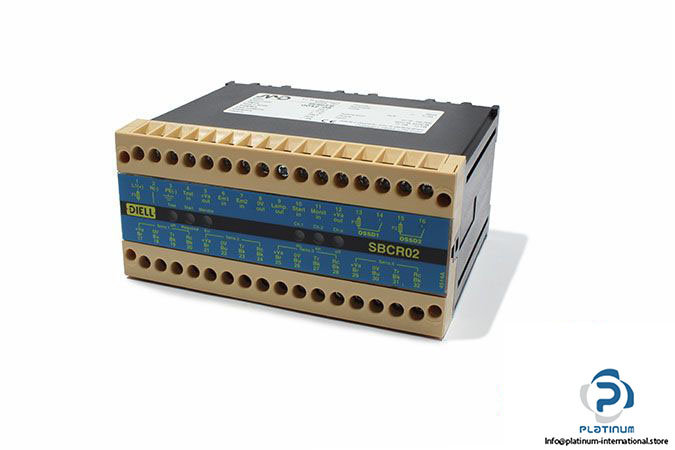

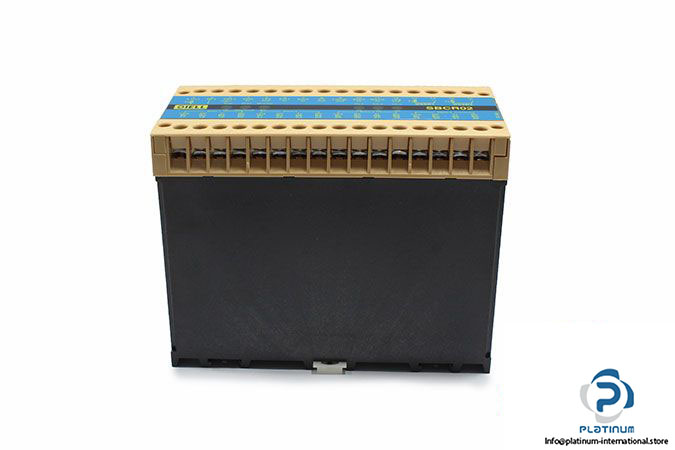

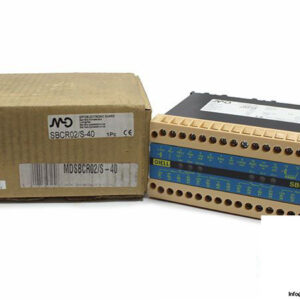

MD SBCR02/S-40 Multiple Beam Safety Control Unit

Manufacturer: MD – DIELL

Type: Multiple Beam Safety Control Unit

Model: SBCR02/S-40

Operating Voltage: 24 VAC

No-load Supply Current: 550 mA

Function Available: Automatic restart

Muting Sensors Type: 2 X PNP, NO

No. of Optics: four Optics

Safety Output: 2 forced contact relays is 2 contacts NO (gold)

Output Status: static output 50 mA

Response Time: ≤ 25 ms

Ambient Operating Temperature: 0 … 55 °C

Protection Degree: IP20

Dimensions: 152 X 118.2 X 73.2 mm

Weight: 0.6 Kg
