Mecman 166-03-0500-1 ISO Cylinder
Gebraucht
Auf Lager1 EinheitVersandbereit
ISO Cylinder
MECMAN ISO Cylinder 166-03-0500-1 is designed for efficient pneumatic systems, featuring an 80 mm bore diameter, 50 mm stroke, and a maximum pressure of 10 bar. The double-acting cylinder is ideal for compressed air applications with a square shape and male piston rod end.10166-03-0500-13/880AirbarboreCompressedconnectionCylinderdouble-actingEndGIndustrialISOmaleMecmanmmPistonPneumaticPressureRODSolutions
Umfangreiches Lager
Weltweiter Versand
Experten-Support
Qualitätsgarantie

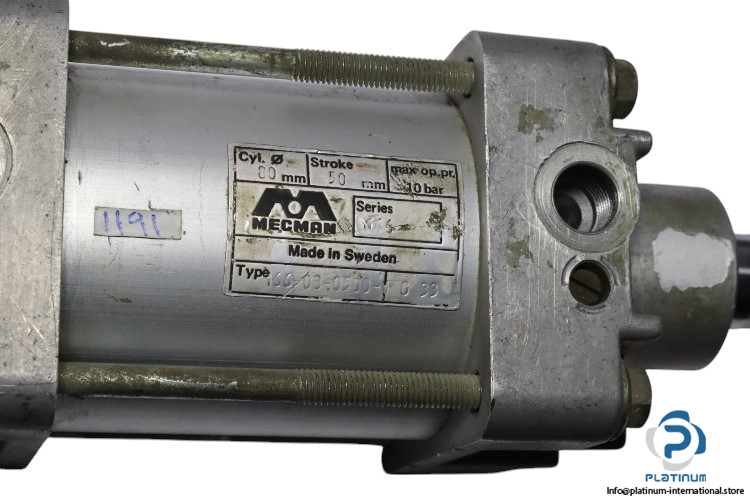

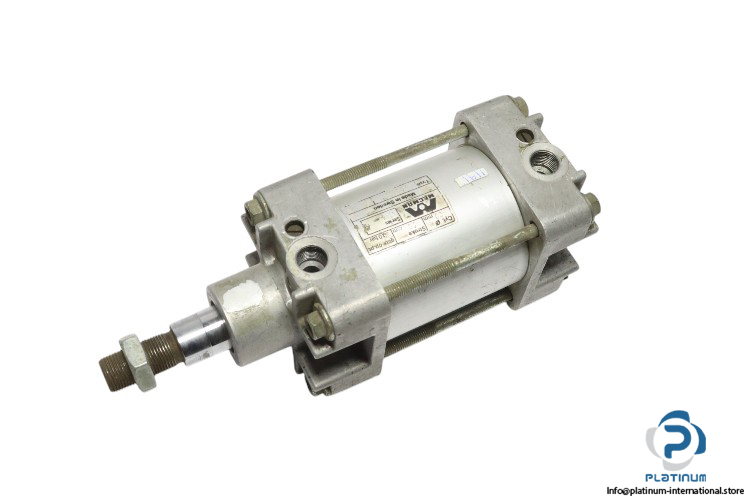

MECMAN ISO Cylinder 166-03-0500-1
The MECMAN ISO Cylinder 1660305001 is designed for reliable and efficient pneumatic applications, featuring a robust construction and precise operation. Ideal for use with compressed air, this double-acting cylinder ensures consistent performance under high pressure conditions.
Manufacturer: MECMAN
Model: 166-03-0500-1
Technical Specifications
- Media: Compressed Air
- Bore Diameter: 80 mm
- Stroke: 50 mm
- Bore x Stroke: 80 x 50 mm
- Rod Diameter: 25 mm
- Frame Dimensions: 95 x 210 mm
- Pneumatic Connection: G 3/8
- Pressure Max.: 10 bar
- Operation Mode: Double
- Piston Rod End: Male
- Shape: Square
- Rod Direction: One Side
