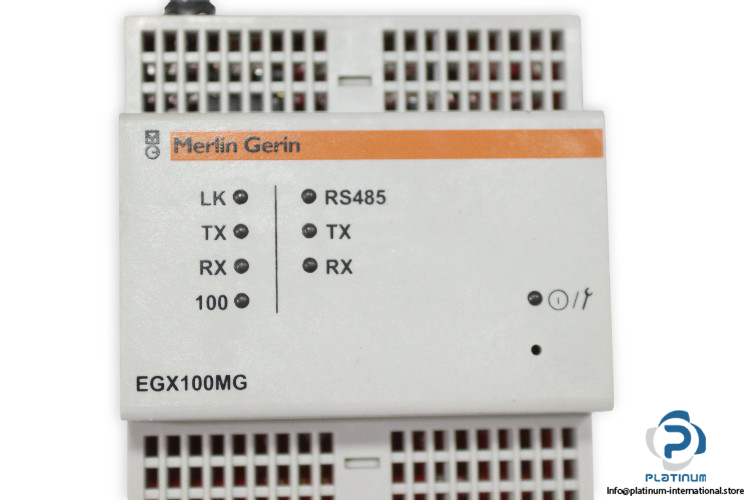

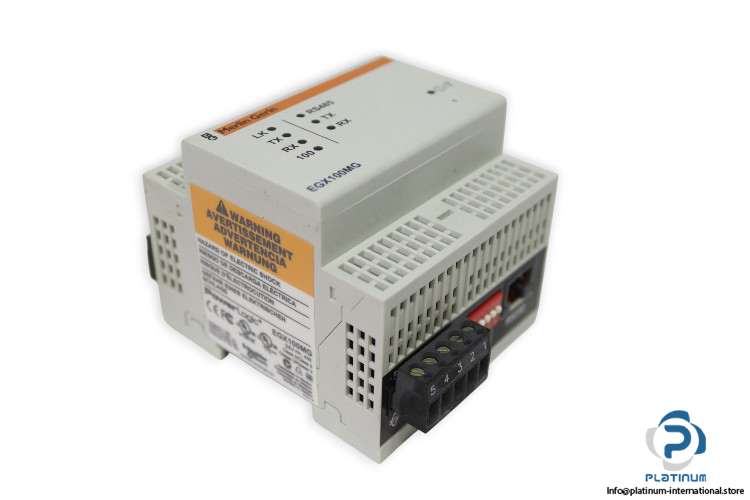

Merlin Gerin EGX100MG Ethernet Gateway Module
Ethernet Gateway Module
The Merlin Gerin EGX100MG Ethernet Gateway Module enables efficient data communication between serial and Ethernet networks, supporting Modbus and PowerLogic protocols with 24 V DC supply and IP30 protection.Merlin Gerin EGX100MG Ethernet Gateway Module
The Merlin Gerin EGX100MG Ethernet Gateway Module is a high-performance communication interface designed to integrate serial and Ethernet networks for industrial and power monitoring systems. It provides seamless data exchange between Modbus, PowerLogic, and TCP/IP devices, ensuring efficient and reliable connectivity.
Manufacturer: Merlin Gerin
Type: Ethernet Gateway Module
Model: EGX100MG
Part No.: ECU-1051TL-R10AAE
Range: PowerLogic EGX100
Short Name: EGX100
Device Connection:
Ethernet Port FTP 10/100 Mbit/s
Ethernet Port HTTP 10/100 Mbit/s
Ethernet Port Modbus TCP/IP 10/100 Mbit/s
Ethernet Port SNMP 10/100 Mbit/s
Serial Port Modbus RTU and ASCII RS232 38400/57600 Bauds
Serial Port Modbus RTU and ASCII RS485 38400/57600 Bauds
Serial Port PowerLogic (SY/MAX) RS232 38400/57600 Bauds
Serial Port PowerLogic (SY/MAX) RS485 38400/57600 Bauds
| Supply Voltage | 24 V DC |
| Power | 4 W |
| Connection | 1 x 3-Pin Terminal Block |
| Temperature | -25 / 70 °C |
| Protection Class | IP30 |
| Dimensions | 72 x 91 x 68 mm |
| Standards | AS/NZS25 60950 / IEC 60950 / EN 60950 / CSA C22.2 No. 60950 / UL 60950 / UL 508 |
