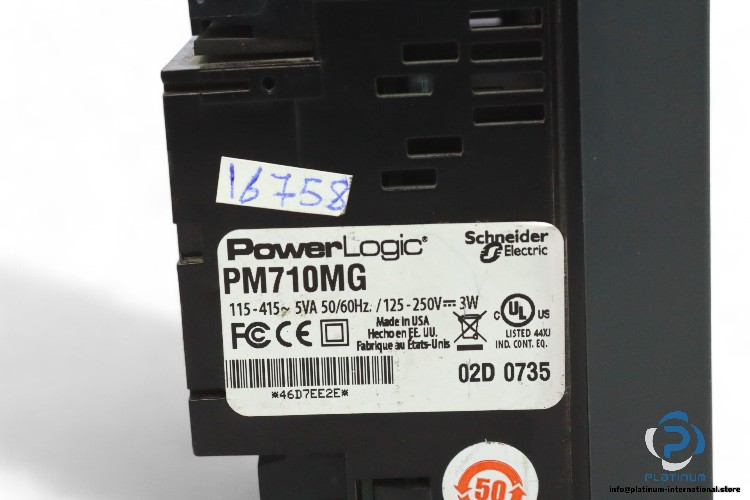

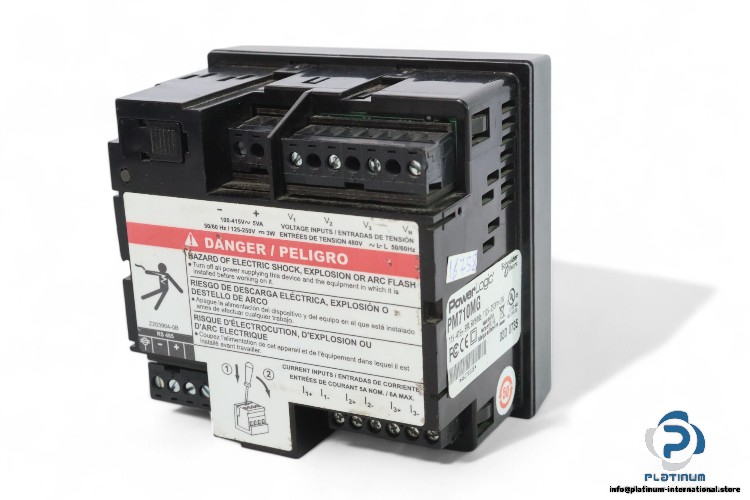

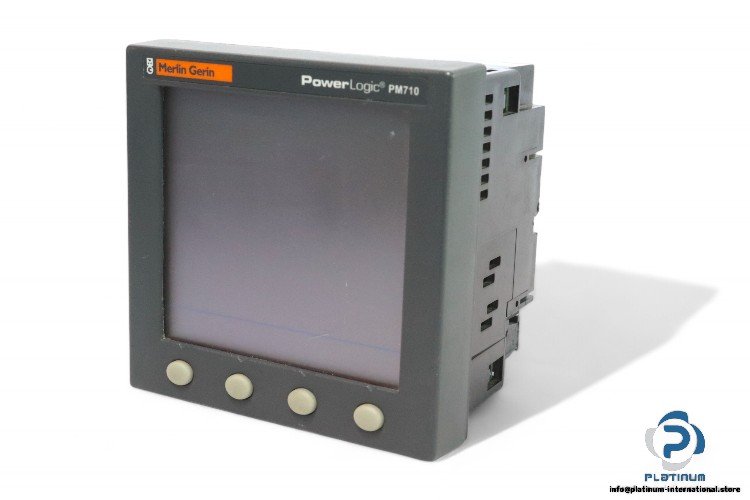

Merlin Gerin PM710MG Power Meter

Manufacturer: MERLIN GERIN SCHNEIDER
Type: Power Meter
Model: PM710MG

Range: PowerLogic PM700
Short Name: PM710
Measurement Type: (Current / Voltage / Frequency / Power Factor Total / Apparent Power Total / Active Power Total / Reactive Power Total / Apparent Power Per Phase / Active Power Per Phase / Reactive Power Per Phase / Energy)
Supply Voltage: 115 … 415 V AC / 125 … 250 V DC
Frequency: 45 … 65 Hz
Power Consumption: 5 VA
Sampling Rate: 32 Samples/Cycle
Measurement Current: 1 / 5 A
Measurement Voltage:
10…480 V AC 45…65 Hz Phase To Phase
10…277 V AC 45…65 Hz Phase To Neutral
Display Type: Backlit LCD
Display Resolution: 6 Lines
Communication Port Protocol: Modbus 19.2 KBauds
Communication Port Support: RS485
Protection Class: IP30/IP52
Temperature: -5 … 50 °C
Dimensions: 96 x 96 x 69 mm
