Metal Work 217Z40C030CP Compact Cylinder
Gebraucht
Auf Lager1 EinheitVersandbereit
Kompakter Zylinder Metallarbeit 217Z40C030CP kompakter pneumatischer Zylinder mit 40 mm Kolbendurchmesser, 30 mm Hub, doppeltwirkendem Betrieb und G1/8 Anschluss.
217Z40C030CP3040ActingActuatorAirAutomationboreCompactCylinderDoubleG1/8IndustrialMetalmmPneumaticStrokeWork
Umfangreiches Lager
Weltweiter Versand
Experten-Support
Qualitätsgarantie
Metal Work 217Z40C030CP Compact Cylinder

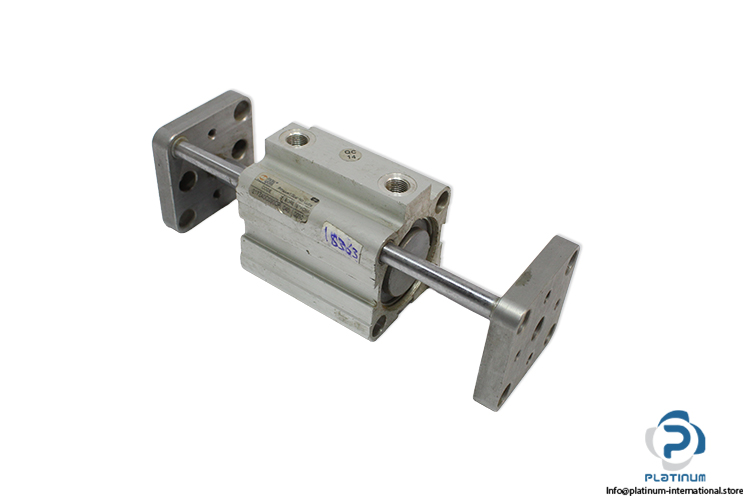

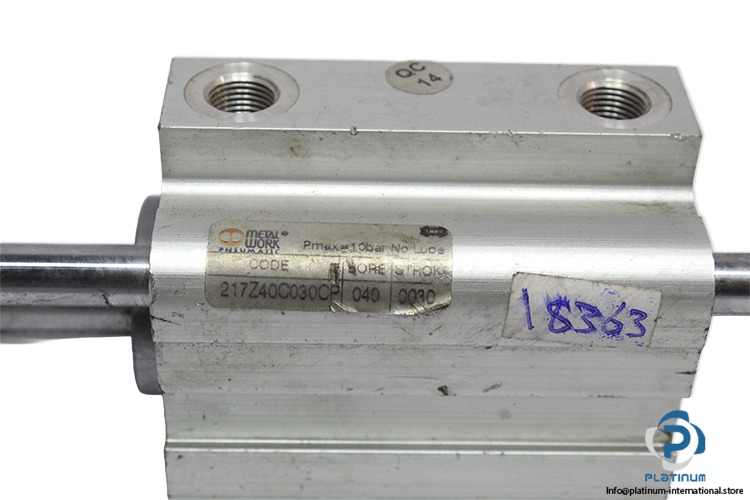

The Metal Work 217Z40C030CP is a compact pneumatic cylinder designed for precise linear motion in industrial automation systems. It operates using air and features a double-acting mechanism for controlled movement.
Manufacturer: METAL WORK
Type: Compact Cylinder
Model: 217Z40C030CP
| Fluid | Air |
| Stroke Length | 30 mm |
| Piston Diameter | 40 mm |
| Operating Pressure Max. | 10 bar |
| Operation Mode | Double Acting |
| Pneumatic Connection | G1/8 |
| Temperature | -20 / 80 °C |
