Metso Nove S22P0 Sampler Valve
Neu
Auf Lager1 EinheitVersandbereit
599,99$
Probenehmer-Ventil Metso NOVE S22P0 pneumatisches Konsistenz-Probenahmeventil mit integriertem Zylinder und manuell betriebenem Ventil, entwickelt für präzise Probenahme in industriellen Prozessanwendungen.
Umfangreiches Lager
Weltweiter Versand
Experten-Support
Qualitätsgarantie

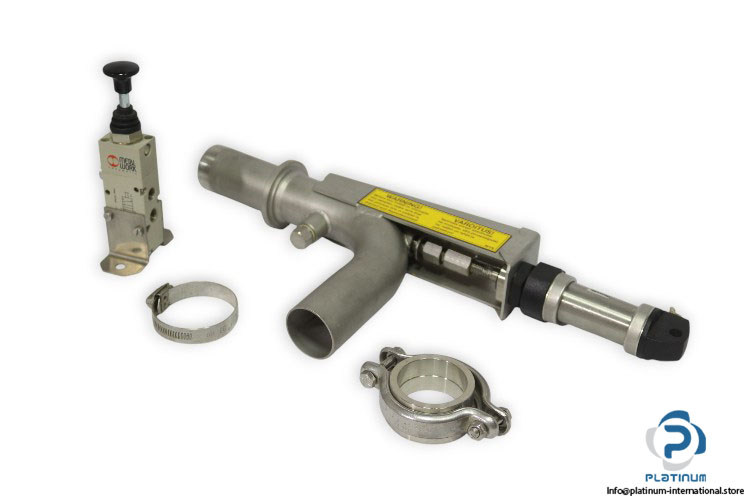

Metso NOVE S22P0 Sampler Valve
The Metso NOVE S22P0 is a pneumatic consistency sampler valve designed for accurate and reliable sampling in industrial process environments. It is engineered for demanding applications and supports a wide range of pulp consistency levels, ensuring stable operation and precise control.
Manufacturer: Metso
Type: Sampler Valve

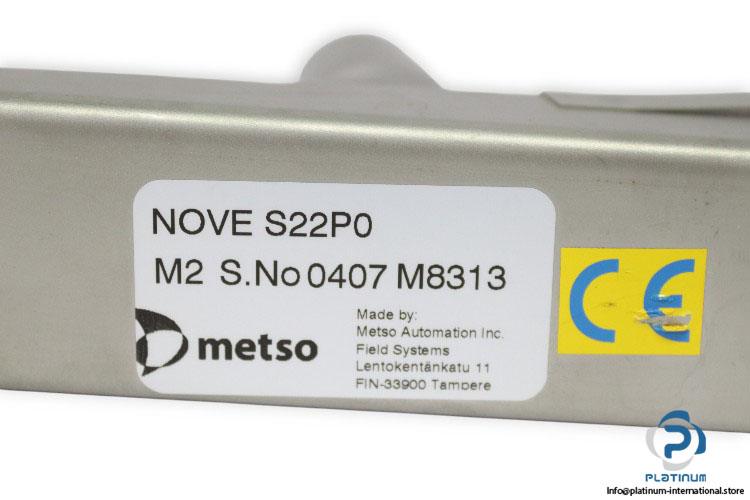

Model: NOVE S22P0
Serial No.: 0407 M8313

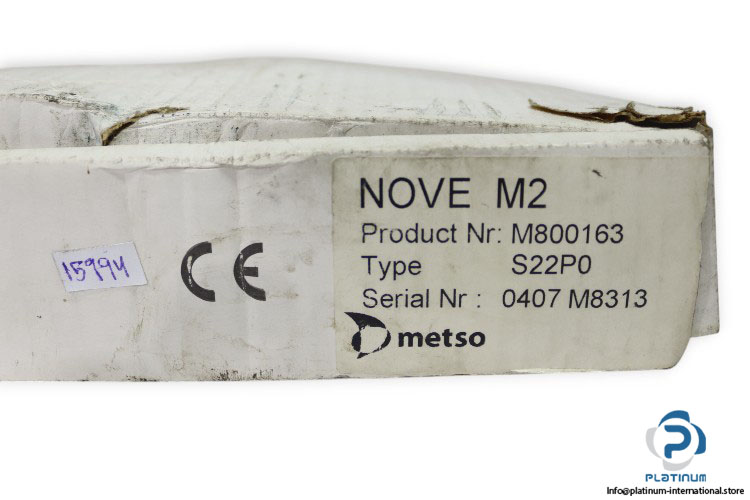

ID No.: M800163
MNR: NOVE M2
Series: NOVE S
Attached Components
| Design | Pneumatic consistency sampler valve |
| Connection | 34 mm |
| Application Range | Suitable for pulp consistency from 0 to 8% (standard Nove) and up to 18% |

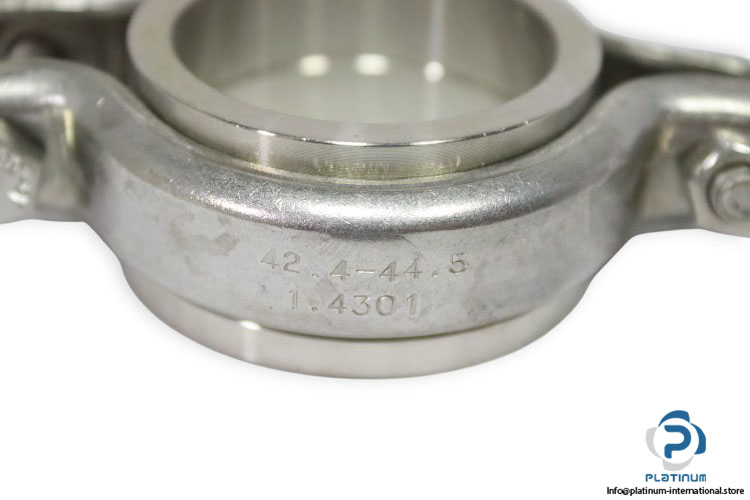

| Marking on Clamp | 1.4301 / 42.4“44.5 (AISI 304 Stainless Steel) |

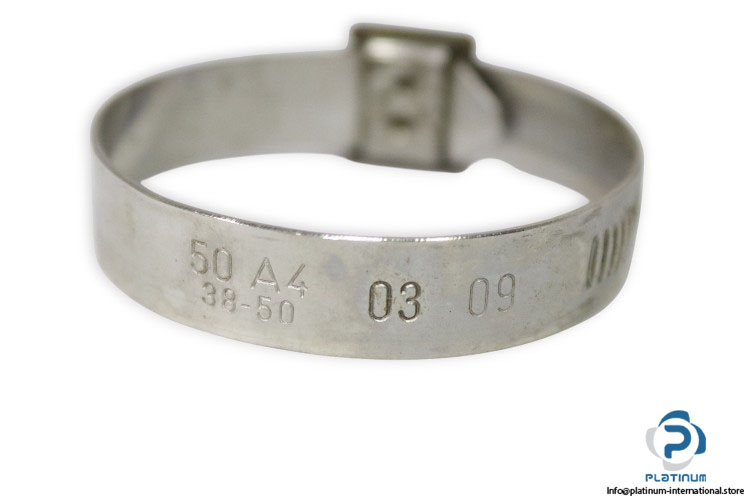

| Marking on Hose Clamp | 50 A4, 03“09, 38“50 |
| Applications | Pulp & Paper, Chemical & Petrochemical, Water Treatment, Food & Beverage (if sanitary certified) |

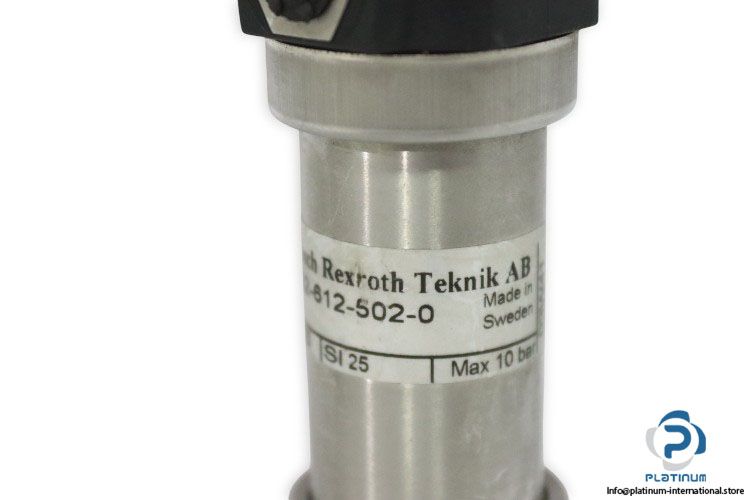

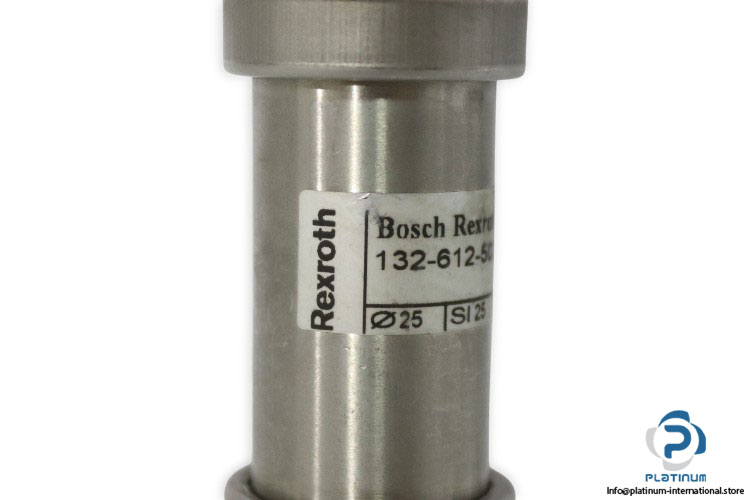

| Attached With | Rexroth 132-612-502-0 Mini Cylinder |
| Piston Diameter | 25 mm |
| Stroke | 25 mm |
| Medium | Compressed Air |
| Pneumatic Connection | G1/8 |
| Mode of Operation | Double Acting |
| Operating Pressure Max. | 10 bar |
| Piston Rod End | Male |

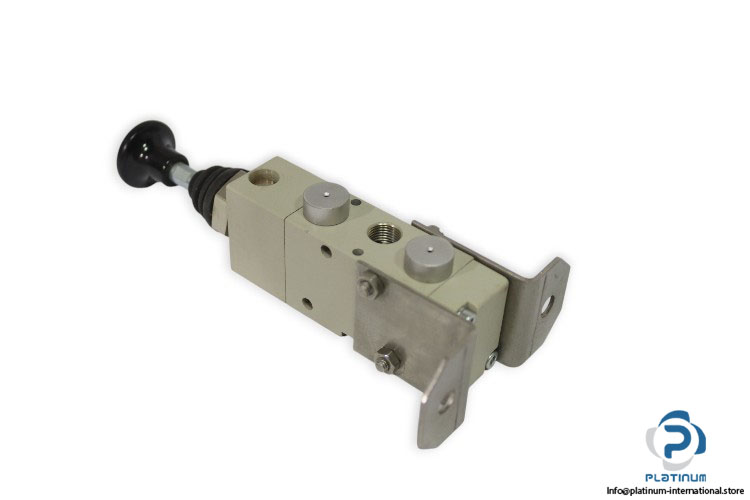

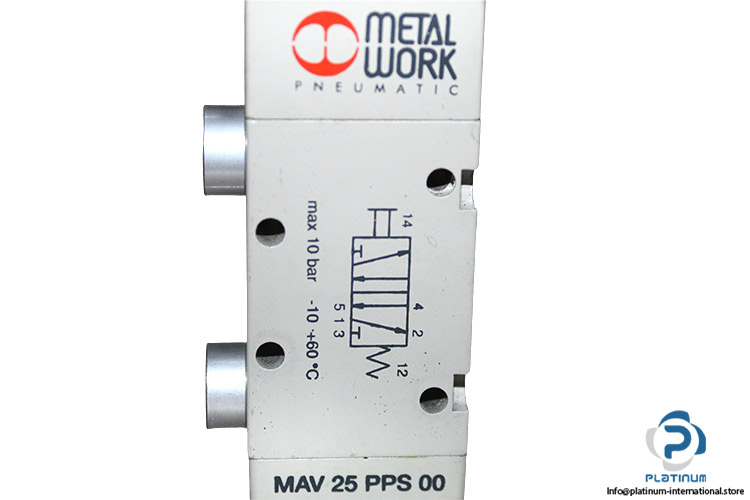

| Attached With | Metal Work MAV 25 PPS OO Hand Operated Valve |
| Fluid | Air |
| Type of Actuation | Manually |
| Max Operating Pressure | 10 bar |
| Ambient Temperature | -10 / 60 °C |
| Connection | G1/8 |
| Function | 5/2 Way Valve |
