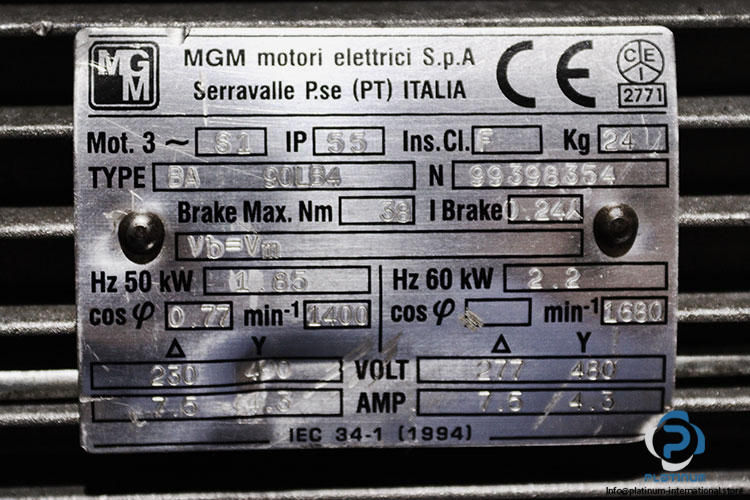

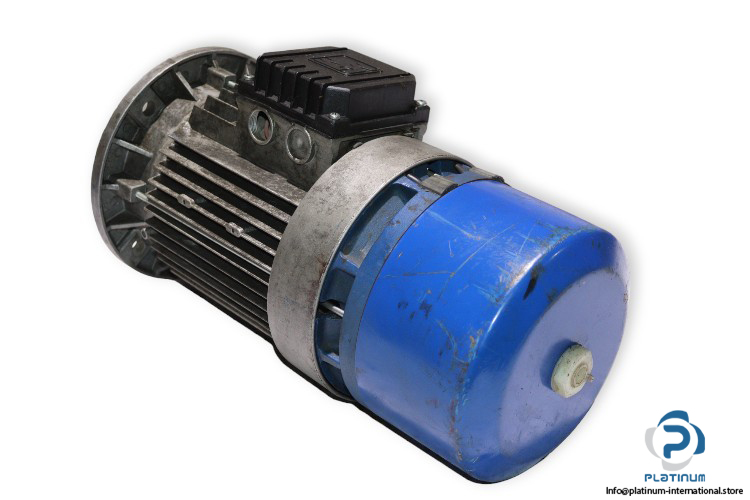

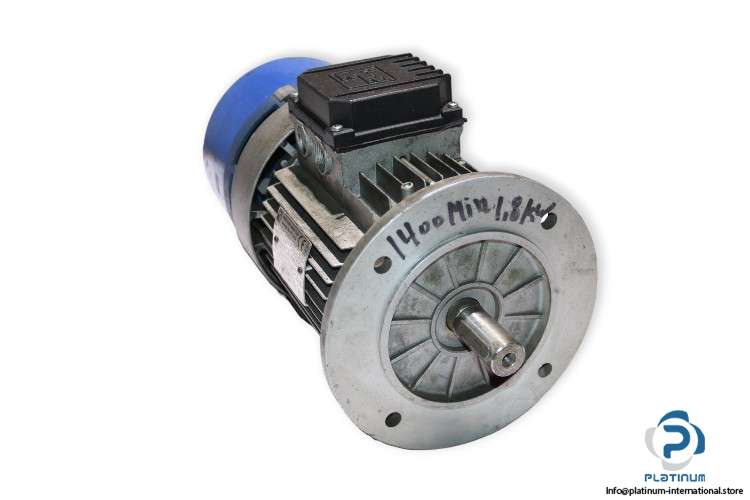

MGM BA 90LB4 Brake Motor
Manufacturer: MGM
Type: Brake Motor
Model: BA90LB4
Rated Power [kW]: 1.85/2.2
Rated Voltage [V]: 230-400/277-480
Rated Current [A]: 7.5-4.3/7.5-4.3
Rated Speed [min-1]: 1400/1680
Frequency [Hz]: 50/60
Protection Class [IP]: 55
Thermal Class: F
Duty: S1
Power Factor [cos]: 0.77
Brake Current [A]: 0.24
Brake Torque [Nm]: 38
