MICROSONIC pico+25/F/A ULTRASONIC SENSOR
Gebraucht
Auf Lager4 EinheitenVersandbereit
Ultrasonic Sensor
The Microsonic pico+25/F/A is a cylindrical M18 ultrasonic sensor with IO-Link, 30“350 mm measuring range, and IP67 protection for industrial object detection.
Umfangreiches Lager
Weltweiter Versand
Experten-Support
Qualitätsgarantie

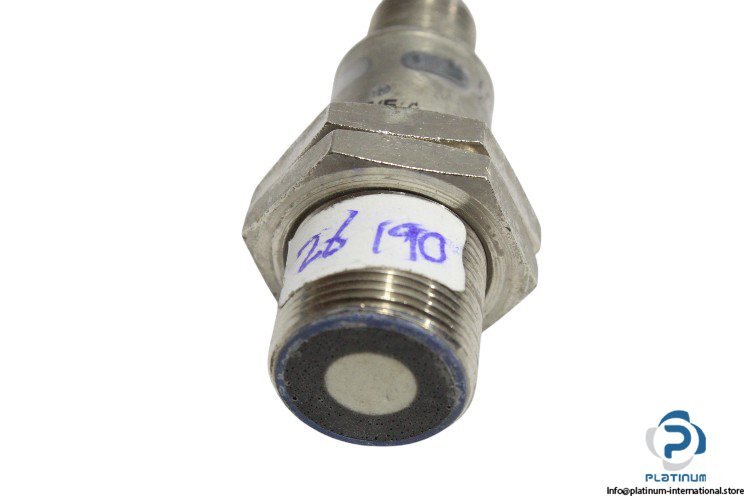

Microsonic pico+25/F/A Ultrasonic Sensor
The Microsonic pico+25/F/A is a compact M18 cylindrical ultrasonic sensor designed for precise distance measurement and object detection. With versatile operating modes and IO-Link compatibility, it is ideal for a wide range of industrial automation applications.
Manufacturer: Microsonic
Type: Ultrasonic Sensor
Model: pico+25/F/A
| Operating Voltage (UB) | 10“30 V DC |
| No-load Current Consumption | 40 mA |
| Type of Connection | 5-pin M12 initiator plug |
| Input 1 | com input, synchronisation input, teach-in input |
| Output 1 | Switching output (Push-Pull, UB-3 V, -UB+3 V, Imax = 100 mA) |
| Class of Protection | IP67 |
| Operating Temperature | -25°C to 70°C |
| Measuring Range | 30 “ 350 mm |
| Design | Cylindrical M18 |
| Operating Modes | IO-Link, proximity switch/reflective mode, reflective barrier, window mode |
