Midland-ACS 2REGSN122 Directional Valve
Gebraucht
Auf Lager1 EinheitVersandbereit
Richtungsventil aus Edelstahl MIDLAND-ACS Richtungsventil der Serie 4500 mit 12 bar Betriebsdruck, Cv 1 Durchflusskapazität und G1/4 Anschluss, geeignet für Gas- und Niederdruckflüssigkeitsanwendungen.
1124500barControlCVDirectionalG1/4GasHydraulicIndustrialMidland-ACSPneumaticProcessSeriesstainlessSteelValve
Umfangreiches Lager
Weltweiter Versand
Experten-Support
Qualitätsgarantie

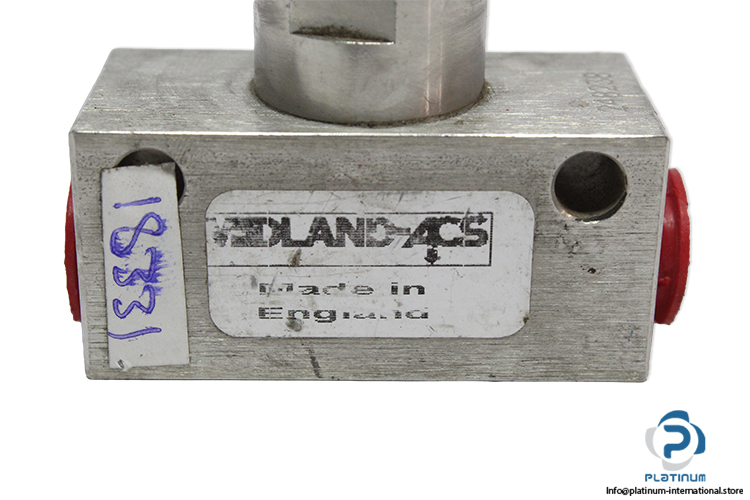

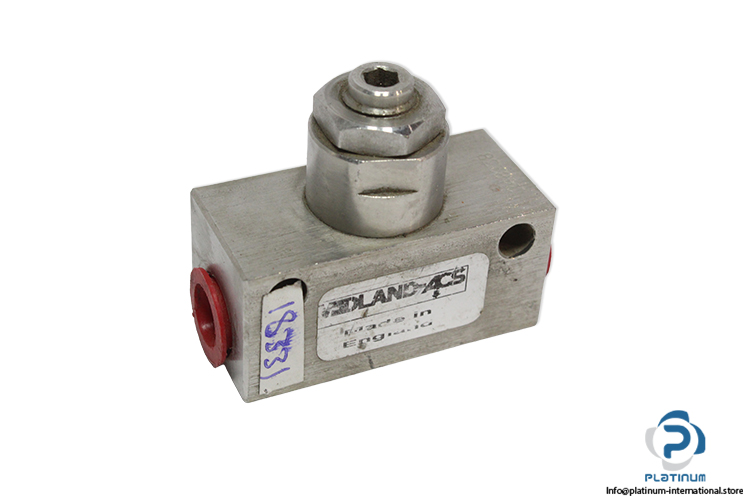

MIDLAND-ACS 2REGSN122 Directional Valve
The MIDLAND-ACS 2REGSN122 directional valve from the 4500 Series is designed for precise control of gases and low-pressure liquids in industrial systems. Manufactured from high-grade stainless steel, it ensures reliable performance in demanding environments.
Manufacturer: MIDLAND-ACS
Type: Directional Valve
Model: 2REGSN122

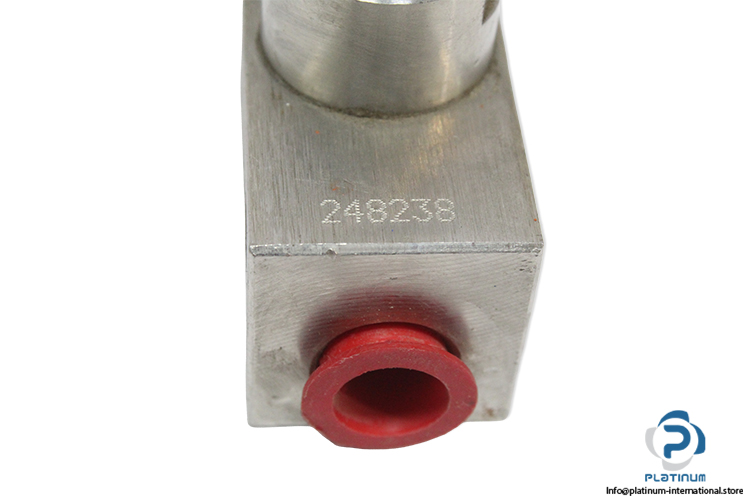

Code: 248238

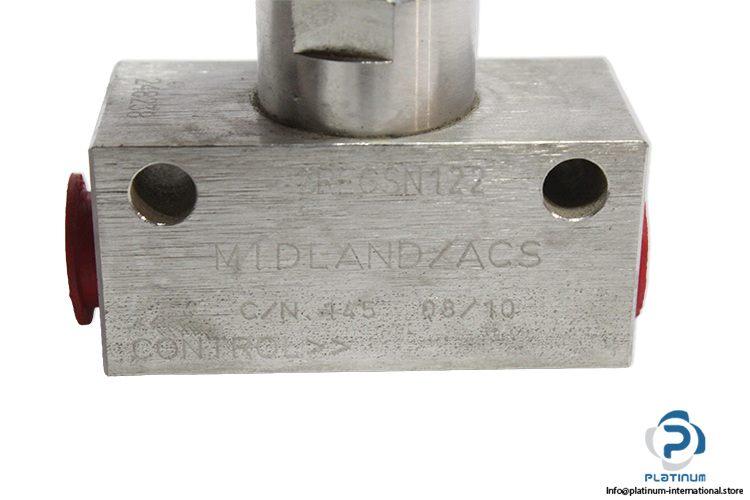

C/N: 145 08/10
Series: 4500 Series
| Working Pressure | 12 bar maximum |
| Operating Media | Gases “ Filtered lubricated or non-lubricated air, inert gas, sweet (natural) gases “ Sour gas option available |
| Liquids | Low pressure hydraulic, mineral oil or water |
| Flow Coefficient (Cv) | 1 |
| Body Material | 316L Stainless Steel |
| Spring Material | 316 Stainless Steel |
| Seals | Nitrile (EPDM option for low temperature) |
| Connection | G1/4 |
| Temperature Range | -20 to +70 ºC |
