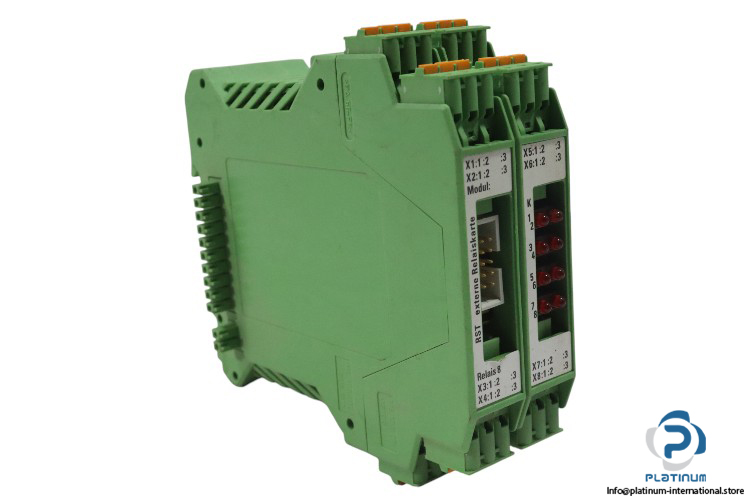

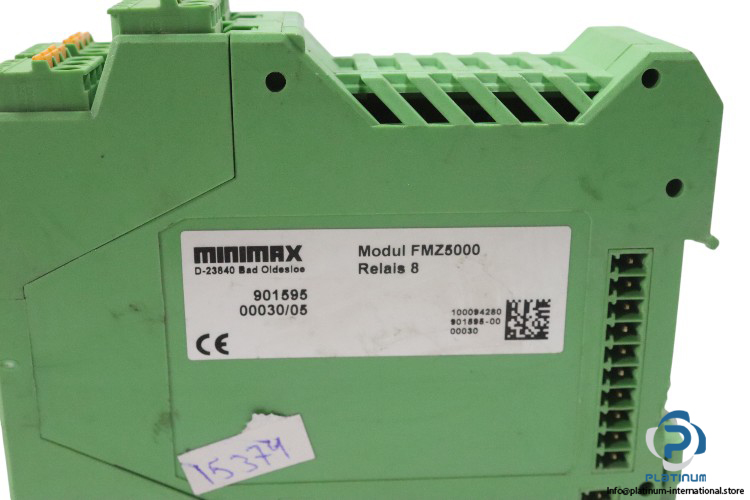

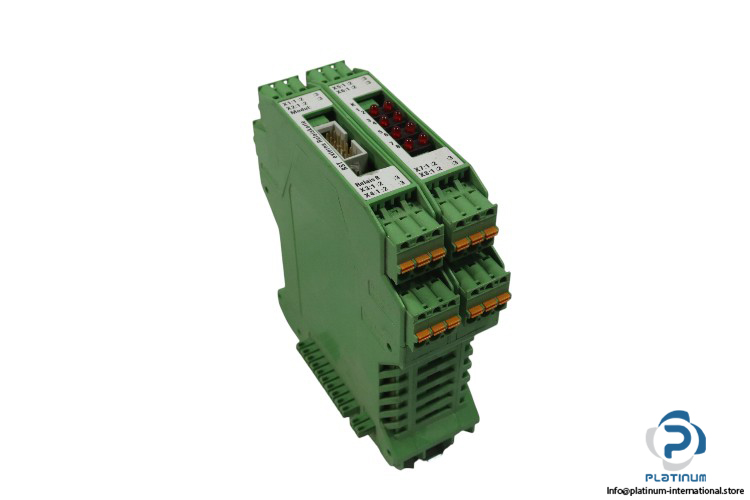

Minimax FMZ5000 / 901595 Conventional Detector Module
Gebraucht
Auf Lager1 EinheitVersandbereit
149,99$
Conventional Detector Module
The MINIMAX FMZ 5000 is a compact and efficient detector module for conventional fire alarm systems. With DIN rail mounting and robust PA6.6 housing, it offers reliable functionality and ease of integration.00030/05901595alarmConventionalDetectionDetectorDINEquipmentFireHousingIndustrialIP20MinimaxModulePA6.6railSafety
Umfangreiches Lager
Weltweiter Versand
Experten-Support
Qualitätsgarantie
MINIMAX FMZ 5000 Conventional Detector Module
The MINIMAX FMZ 5000 is a reliable conventional detector module engineered for precision fire detection systems. With low power consumption and rail mounting capability, it offers dependable performance in various industrial and commercial applications.
Manufacturer: MINIMAX
Type: Conventional Detector Module
Model: FMZ 5000
Art. No.: 901595 / 00030/05
Technical Data:
- Operating Voltage: 19 to 29V DC
- Current: 2 mA “ 50 mA DC
- Line Voltage: 9 V “ 20 V DC
- Alarm Current: 5 mA “ 80 mA DC
- Ambient Temperature: -5 °C to +40 °C
- Protection Class: IP20
- Housing: Polyamide PA6.6
- Mounting: Rail 35 DIN 46277
- Dimensions: 115 x 100 x 17.5 mm
