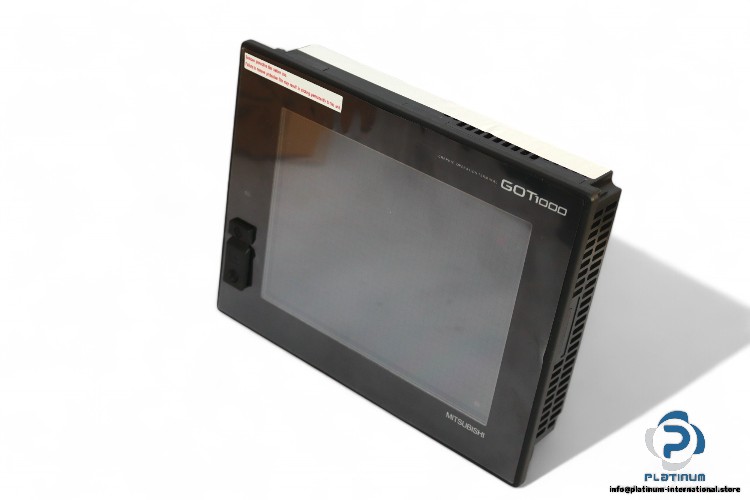

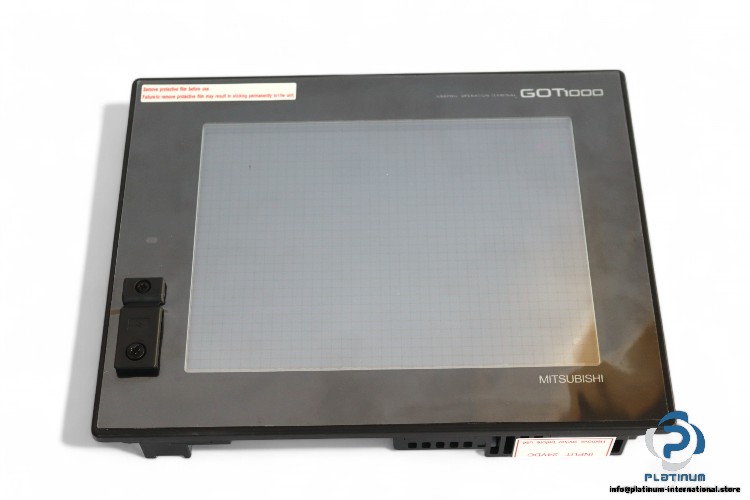

Mitsubishi GT1562-VNBD Touch Screen HMI

Manufacturer: MITSUBISHI
Type:  TOUCH SCREEN
Model: GT1562VNBD

Display: TFT (Thin-Film Transistor) color liquid crystal display
Size: 8.4 inches
Resolution: 640 × 480 pixels
Color Support: 16 colors
Power Supply: 24VDC (24 Volts Direct Current)
Display color: 16 color
Outside the enclosure: IP67
Power consumption: 41W
Current: 1710mA
Insulation resistance: 10MΩ or more
Applicable wire size: 0.75 to 2 mm²
Applicable tightening torque:  0.5 to 0.8 N•m
Memory: Built-in Flash Memory 5 MB
Life (Number of Write Cycles): 100,000 times
Display Size: 171 mm (Width) × 128 mm (Height)
Display Character:
16-dot standard font: 40 characters × 30 lines
12-dot standard font: 53 characters × 40 lines
Built-in Interface:
RS-232
USB
CF card
Multi-color display board
Communication unit/Option unit
The external dimensions (W x H x D) :241 × 190 × 52 mm.
