Moeller DILR31-G Contactor Relay
Neu
Auf Lager2 EinheitenVersandbereit
66,66$
Moeller / Eaton Schützrelais DIL R31G mit 24 V DC Spulenspannung, 16 A thermischer Stromstärke und 3 normalerweise offenen Kontakten. Zuverlässige Leistung für industrielle Steuerkreise.
Umfangreiches Lager
Weltweiter Versand
Experten-Support
Qualitätsgarantie

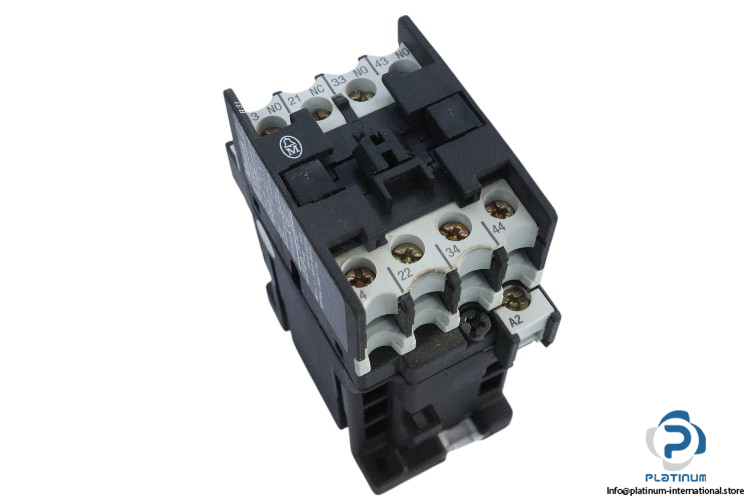

Moeller / Eaton Contactor Relay DIL R31G
Moeller / Eaton Contactor Relay DIL R31G is designed for controlling circuits and motors in industrial applications. It offers high-performance contactor relay functionality with reliable features and efficient operation. Below are the key technical specifications:
- Manufacturer: Moeller / Eaton
- Type: Contactor Relay
- Model: DIL R31G
- Series: DILR
- EAN No.: 4015080485322
- Part No.: 048532 035

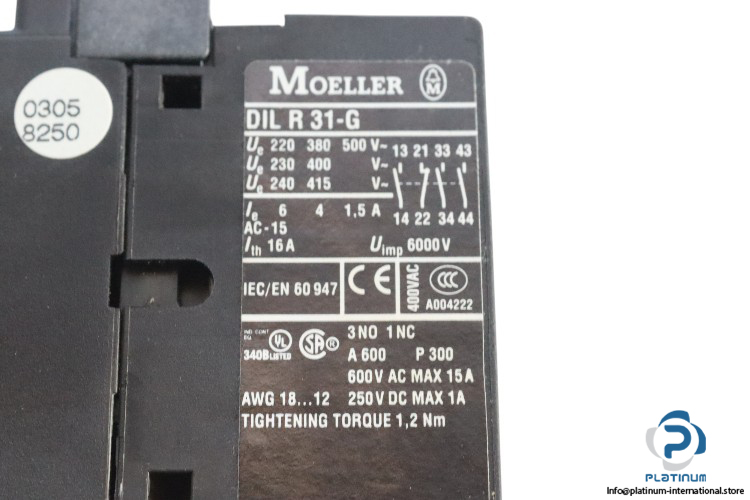

Technical Data:
- Coil Voltage: 24 V DC
- Conventional Thermal Current (Ith): 16 A
- Rated Operational Current (Ie) at AC-15: 4 A (380 V, 400 V, 415 V)
- Rated Impulse Withstand Voltage (Uimp): 6000 V AC

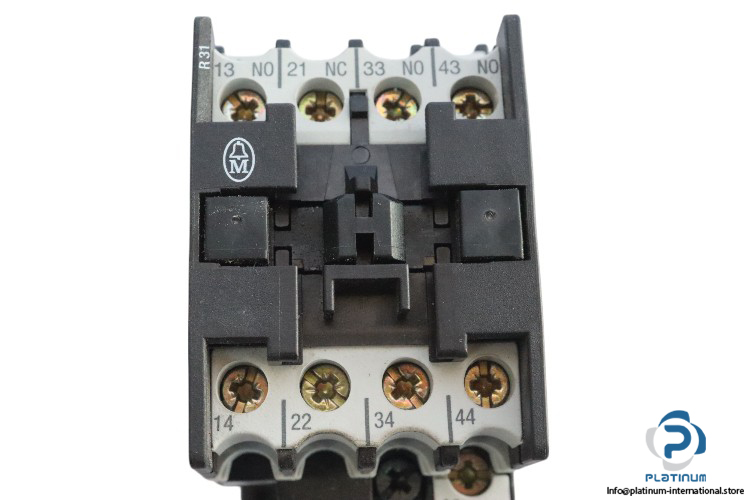

- Contact: 3 Normally Open, 1 Normally Close
- Standard: IEC/EN 60947
- Dimensions: 54 x 58 x 45 mm
