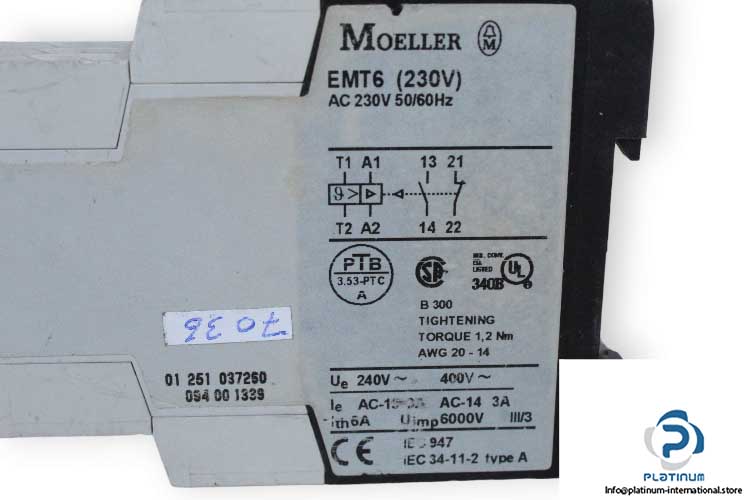

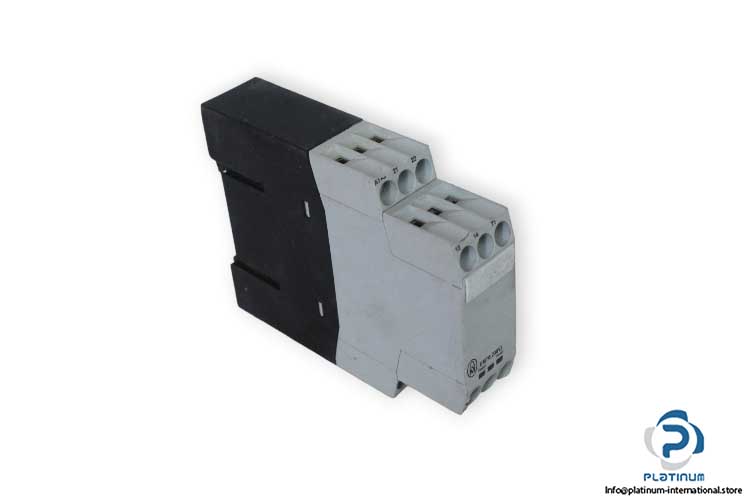

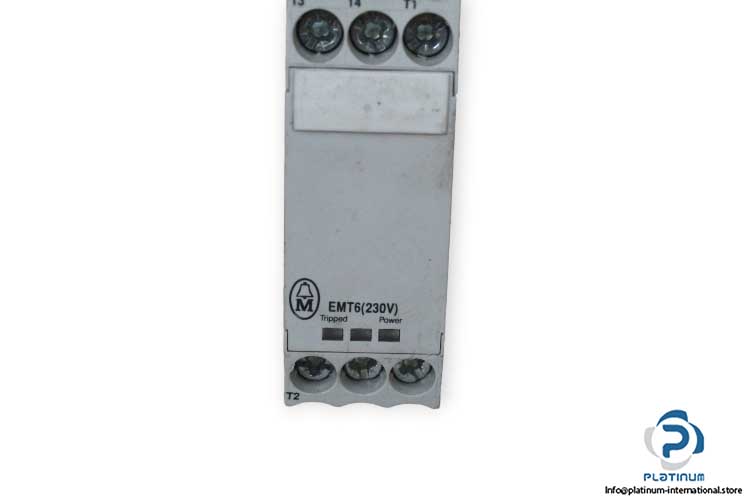

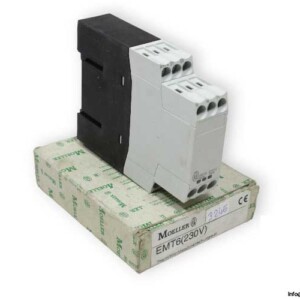

Moeller EMT6 (230V) Thermistor Overload Relay

Manufacturer: Moeller
Type: Thermistor overload relay for machine protection
Model: EMT6 (230V)

Rated control voltage: 230 V AC, 50/60 Hz
Rated operational current: 3 A
Output: 1 Normally open,1 Normally closed (250 V AC)
Thermal current Ith: 6 A
Rated impulse with stand voltage Uimp: 6000 V
Rated operational voltage: 240 … 400 V AC
Overvoltage category/pollution degree: III/3
Tightening torque: 1.2 N.m
Ambient temperature operation: -25 … +60°C
Degree of Protection: IP20
Dimensions: 103 x 23 x 83 mm
