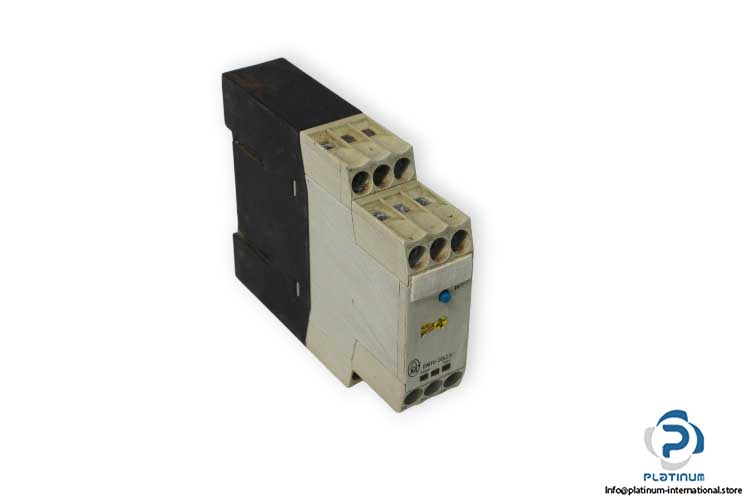

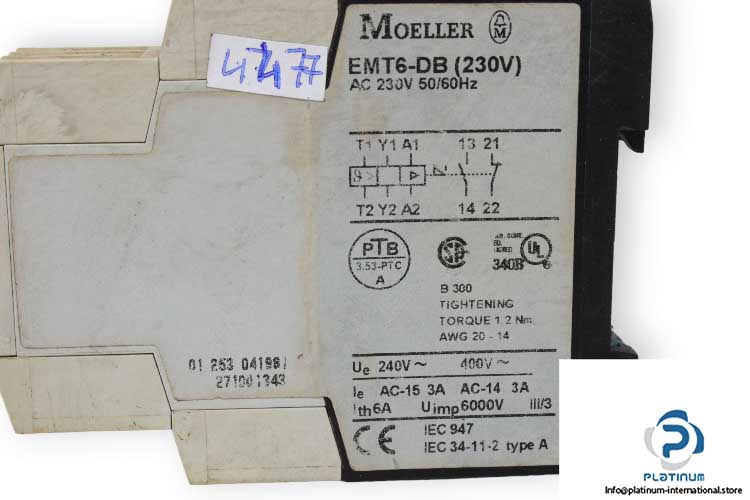

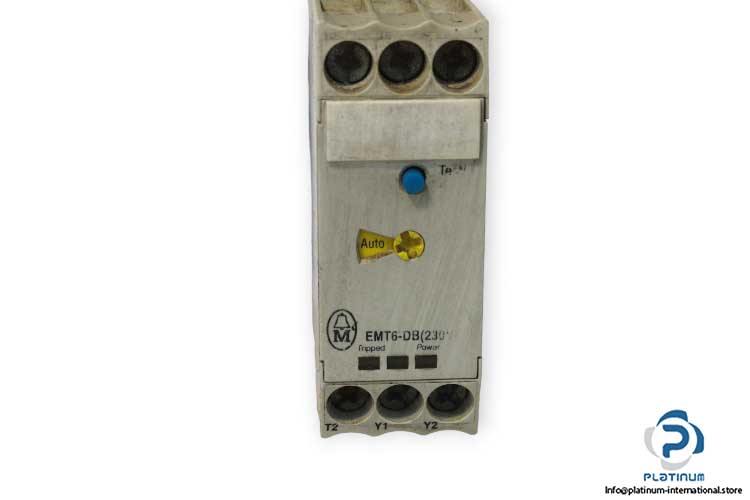

Moeller EMT6-DB (230V) Thermistor Overload Relay

Manufacture: Moeller
Type: Thermistor Overload Relay
Model: EMT6-DB(230V)

Supply voltage: 230 V AC
Rated voltage Ue: 240 … 400 V AC
Frequency: 50/60 Hz
Conventional thermal current Ith: 6 A
Rated impulse withstand voltage Uimp: 6000 V
Contact rating: 1N.O, 1N.C
Rated operational current Ie: 3 A
Tightening torque: 1.2 Nm
Terminal capacities Solid or stranded: 20 … 14 AWG
Type of electric connection: Screw connection
Pollution degree: 3
Operating ambient temperature: -25 … +60 °C
Degree of protection: IP20
Dimensions: 23 x 83 x 103 mm
