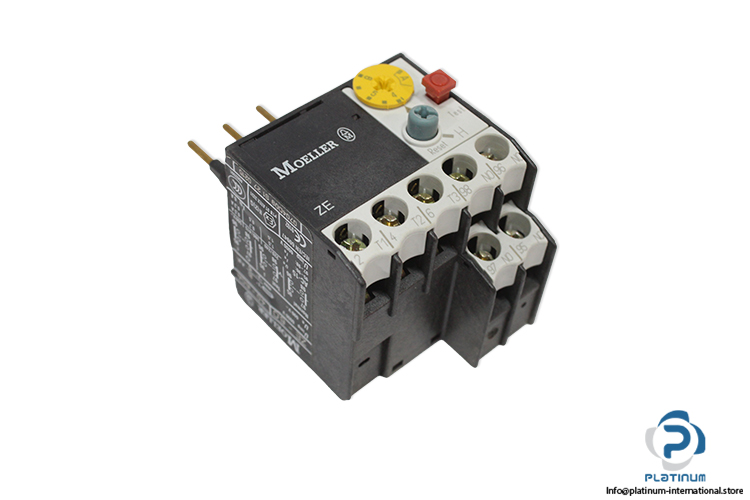

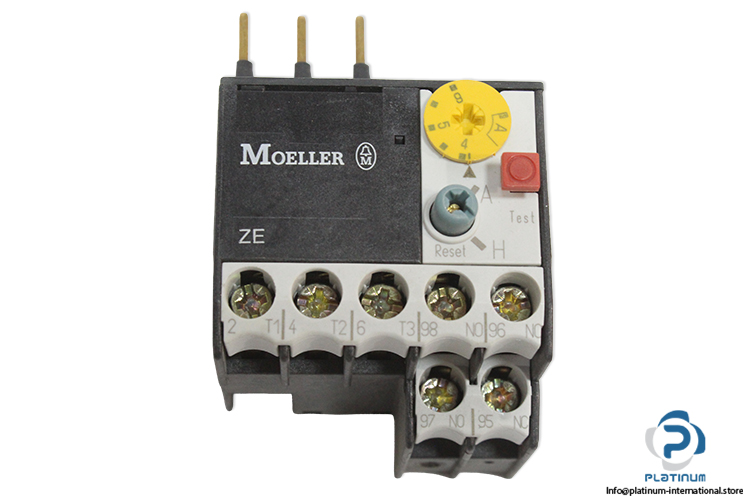

Moeller ZE-6 Overload Relay
Neu
Auf Lager1 EinheitVersandbereit
The Moeller ZE-6 Overload Relay provides reliable motor overload protection with an adjustable current range of 4 to 6 A, 690 V AC rated operational voltage, integrated NO/NC auxiliary contacts, and IEC/EN 60947 compliance for industrial control applications.
Umfangreiches Lager
Weltweiter Versand
Experten-Support
Qualitätsgarantie
| Code | 014565 074 |
| Rated operational voltage (Ue) | 690 V AC |
| Rated impulse withstand voltage (Uimp) | 6000 V AC |
| Current | 4 to 6 A |
| Conventional thermal current (Ith) | 6 A |
| Tightening torque | 1.2 N.m |
| Auxiliary contacts | 1 Normally open, 1 Normally closed |
| Standard | IEC/EN 60947 |
| Condition | New |
| Stock key | CON003 |
| SKU | 1093244 |
| Weight | 0,09 |
