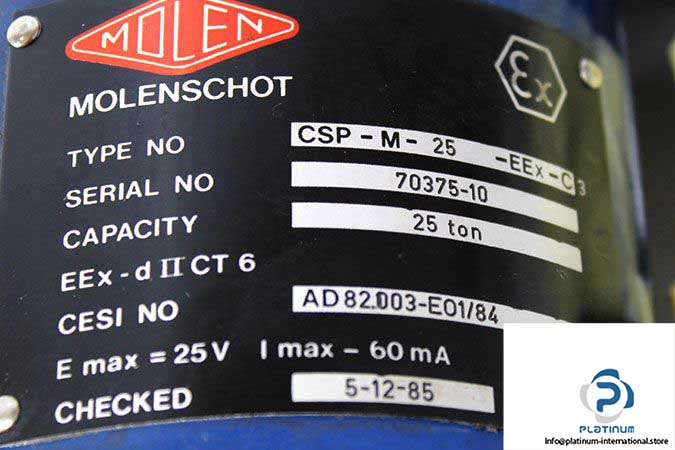

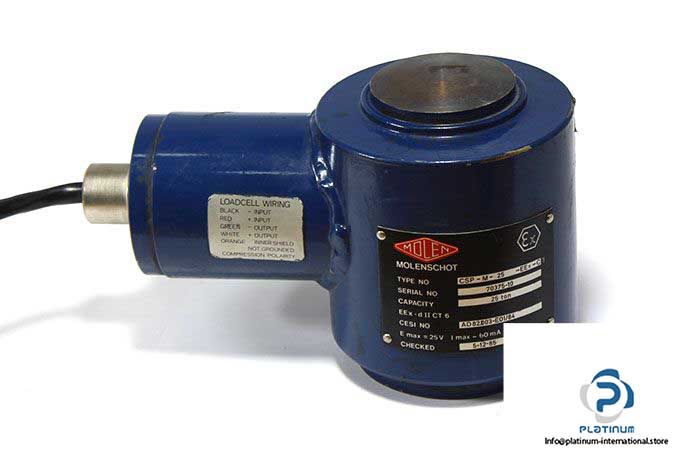

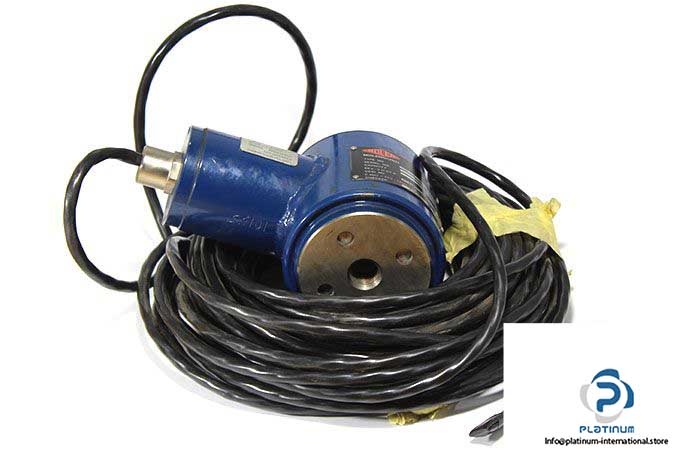

Molenschot CSP-M-25-EEX-C3 MAX 25000 KG Compression Load Cell

Manufacturer: MOLENSCHOT BREDA HOLLAND

Type: Compression Load Cell

Model: CSP-M-25-EEX-C3

Features

• Capacities: 25 T
• Low Profile, Multi-Column Stainless Steel Construction
• Hermetically Sealed, IP66 And IP68
• Certified to OIML R-60, 4000d And NTEP Class IIIL 10000 Divisions
• Built-In Surge Protection Tubes (Gdts)
• Current Calibration Output (SC Version) Ensures Easy and Accurate Parallel Connection of Multiple Load Cell

APPLICATIONS

• Truck and Rail Weighbridges
• Silo and Hopper Weighing
• Process Weighing

Maximum weight limit (E max): 25000 kg (25 t)

Excitation Voltage: 5…20 V

Rated Output: 2 ±mV/V

Max. Current: 60 mA

Input Resistance: 450±4.5 Ω

Output Resistance: 480±4.8 Ω

Operating Temperature: -40…80 °C

Class: C3

Protection Class: IP66 & IP68

Weight: 9.66 kg
