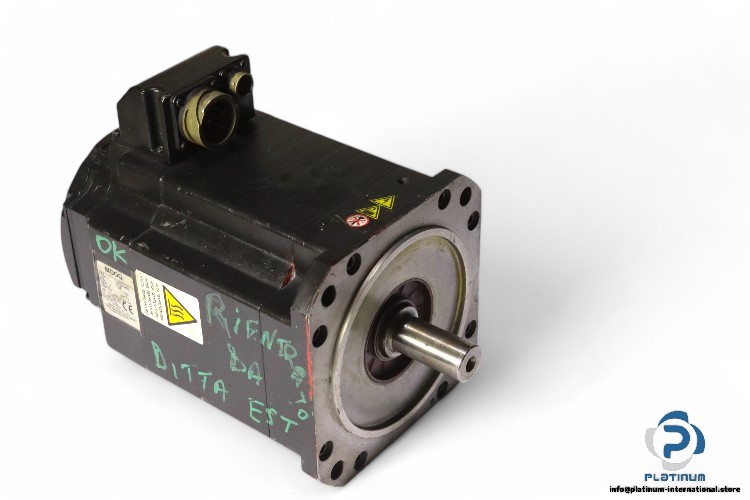

MOOG CR82309050 SERVO MOTOR

The MOOG CR82309050 Servo Motor offers outstanding performance with high torque and precision for industrial applications. With a rated power of 3.35 kW, rated speed of 4000 RPM, and robust design, this motor ensures reliable operation under demanding conditions.

Manufacturer: MOOG

Type: Servo Motor

Code no.: C2900391

MNR: CR82309050

Technical Specifications

• Rated Voltage: 325 VAC
• Rated Speed: 4000 RPM
• Stall Torque: 30 Nm
• Rated Power: 3.35 kW
• Rated Current: 5 A
• Stall Current: 18.75 A
• Torque Constant: 1.6 Nm/A
• Insulation Class: F
• Protection Class: IP65
• Ambient Temperature: -25 to 55 °C
• Brake Voltage: 24 V
• Brake Torque: 41 Nm
• Brake Current: 1.03 A
