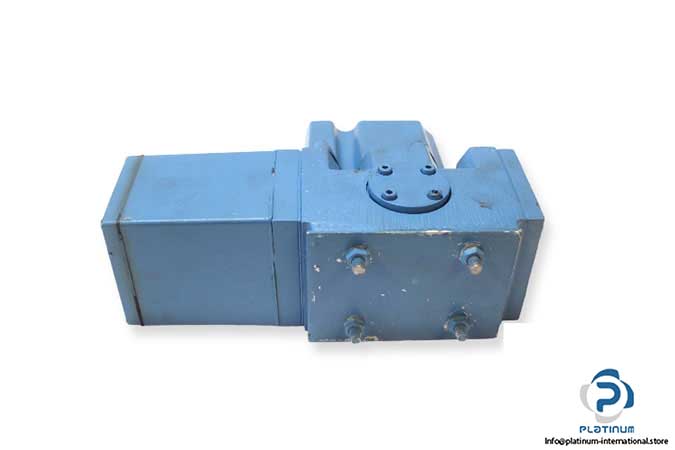

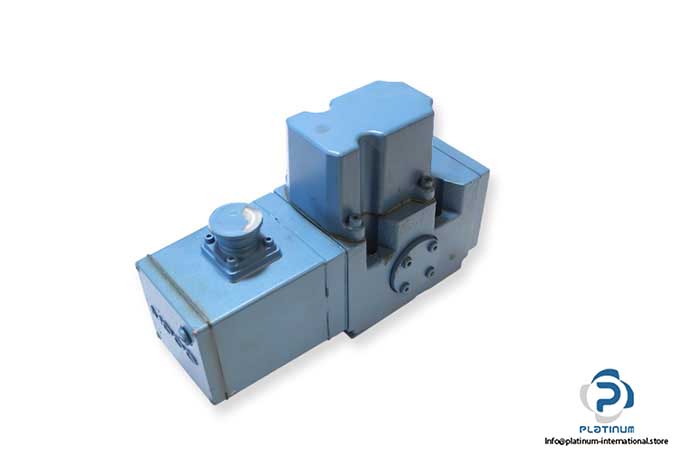

Moog D641-355 Proportional Control Valve

Manufacturer: MOOG

Type: Proportional Control Valve

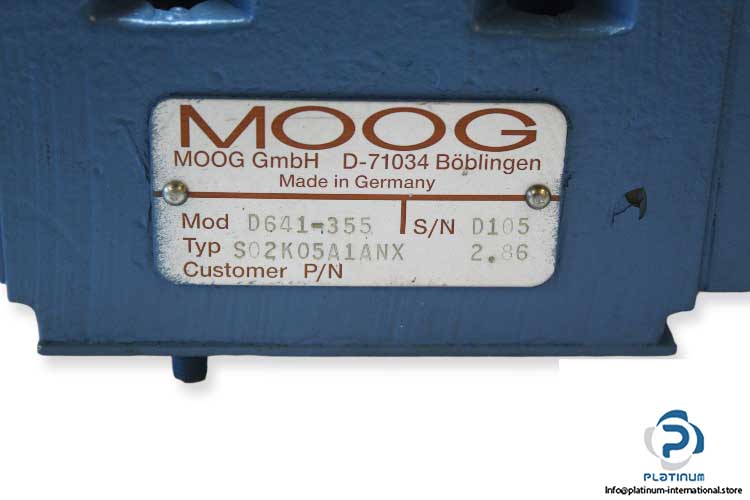

Model: D641-355

Type Designation: S02K05A1ANX

Size: 05

Max. Operating Pressure Port P: 350 bar

Max. Operating Pressure Port X: 280 bar

Temperature Range Ambient: -20°C to +60°C

Temperature Range Fluid: -20°C to +80°

Viscosity: 15 to 100 mm²/s

Rated Flow: 60 l/min

Electric Supply: 15 V DC

Signal: -/+ 10 mA
