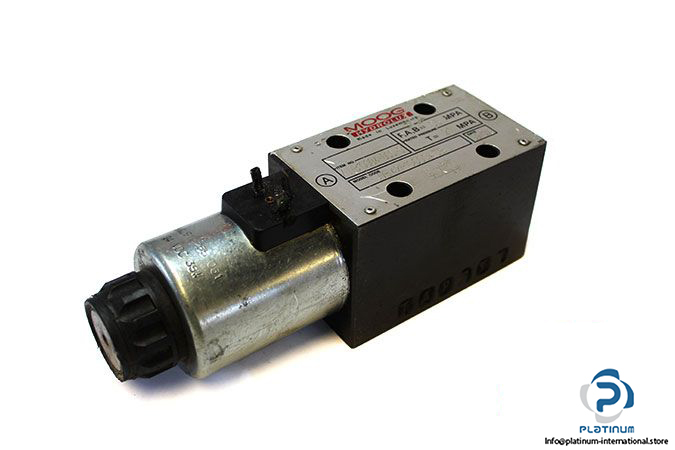

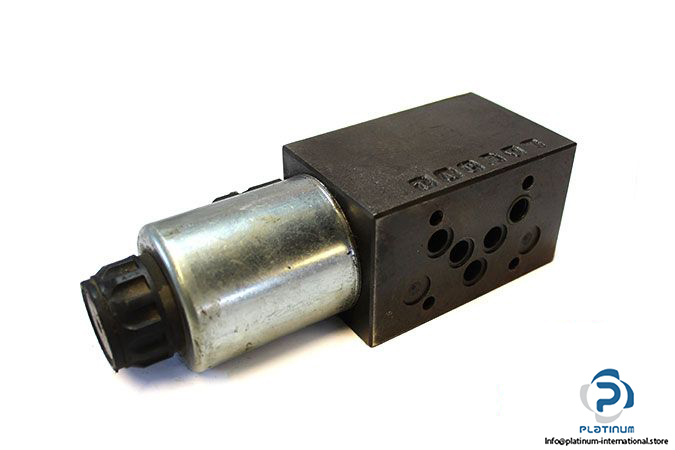

Moog WE42P10C03A0BN Directional Control Valve

Manufacturer: MOOG HYDROLUX

Type: Directional Control Valve

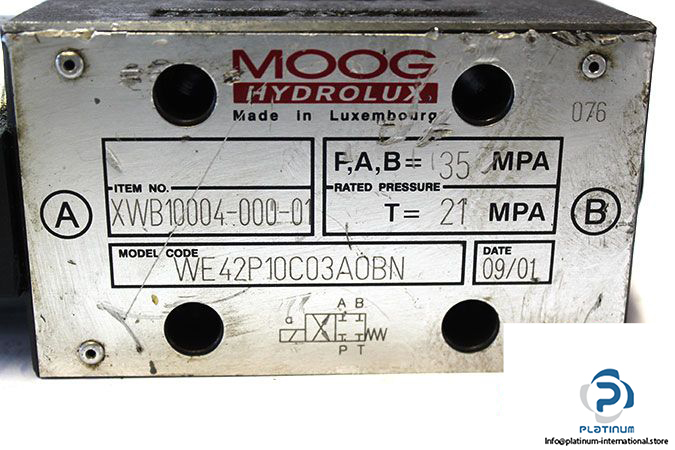

Model: WE42P10C03A0BN

Part. No: XWB10004-000-01

Nominal Size: NG 10

Ambient Temperature Range: -20 ^oC……+60 ^oC

Max. Working pressure Port P, A , B : 35 MPa

Max. Working pressure Port  T : 21 MPa

Hydraulic Connection: Sub-Plate

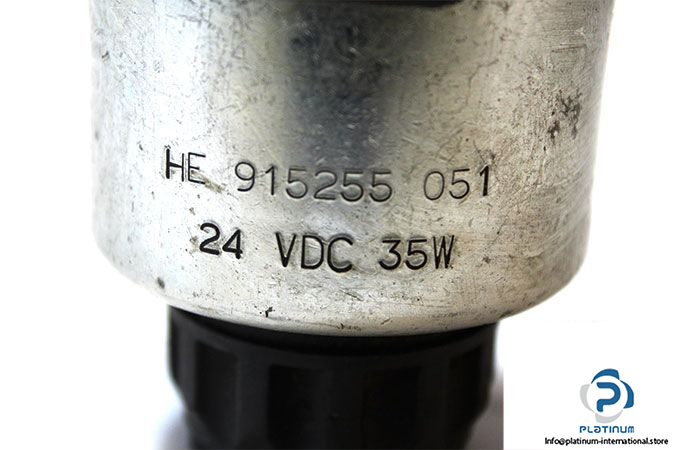

Attachment: MOOG HE 915255 051 SOLENOID COIL

Manufacturer: MOOG HYDROLUX

Type: Solenoid Coil

Model: HE 915255 051

Nominal Voltage per Coil: 24 VDC

Power: 35 W

Weight: 5.35 kg
