Moxa TCF-142-M-ST Media Converter
Gebraucht
Auf Lager1 EinheitVersandbereit
69,99$
Medienkonverter Der Moxa TCF-142-M-ST ist ein Multi-Mode-Faser-Medienkonverter mit RS-232/422/485-Unterstützung, konzipiert für störungsfreie Langstreckenkommunikation bis zu 5 km mit ST-Steckern und Faser-Ring-Schutz.
AutomationConnectorConverterFiberIndustrialMediaMoxaMulti-modeOpticalRingRS-232RS-422RS-485SerialSTTCF-142-M-STto
Umfangreiches Lager
Weltweiter Versand
Experten-Support
Qualitätsgarantie

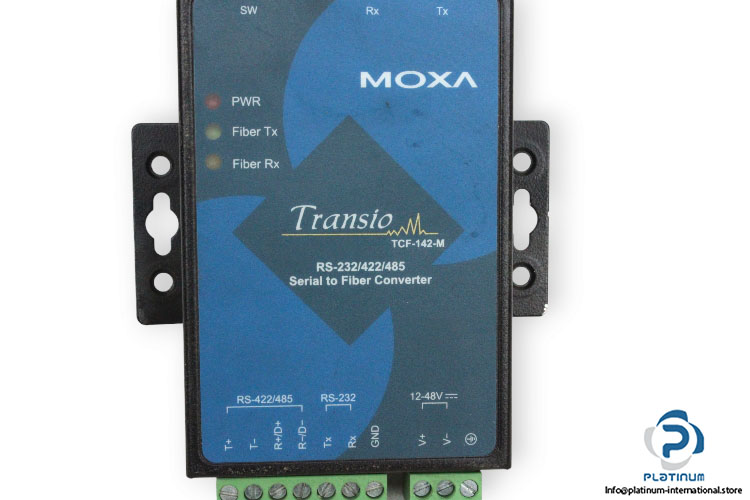

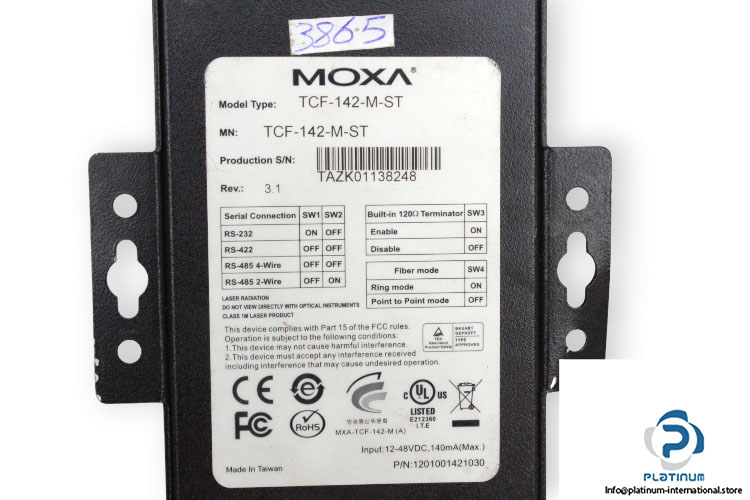

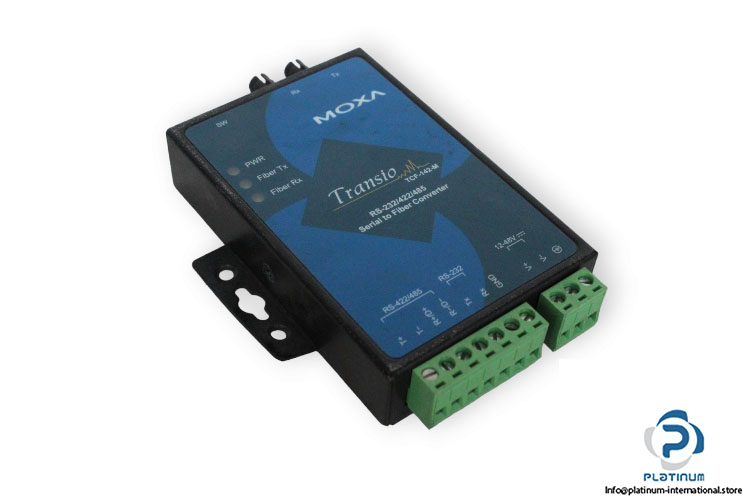

Moxa TCF-142-M-ST Media Converter
The Moxa TCF-142-M-ST is a high-performance industrial media converter designed to extend serial communication over optical fiber. Supporting RS-232, RS-422, and RS-485 interfaces, it ensures secure and interference-free data transmission across long distances. Featuring ST connectors and fiber ring redundancy, this multi-mode converter is ideal for automation, transportation, and process control systems.
Manufacturer: Moxa
Type: Media Converter
Model: TCF-142-M-ST
| Input Current | 70 / 140 mA |
| Input Voltage | 12 / 48 VDC |
| Interface Type | RS-232 / RS-422 / RS-485 |
| Function | Multi-Mode Optical Fiber Media Converter With Fiber Ring Support And ST Connector |
| Typical Distance | 5 km |
| Installation | Wall Mounting |
| Typical Wavelength | 850 nm |
| TX Range | 840 / 860 nm |
| RX Range | 800 / 900 nm |
| Connector | 7-Pin Terminal Block |
| No. of Ports | 2 |
| Protection Degree | IP30 |
| Housing Material | Metal |
| Operating Temperature | 0 / 60 °C |
| Dimensions | 90 × 100 × 22 mm |
