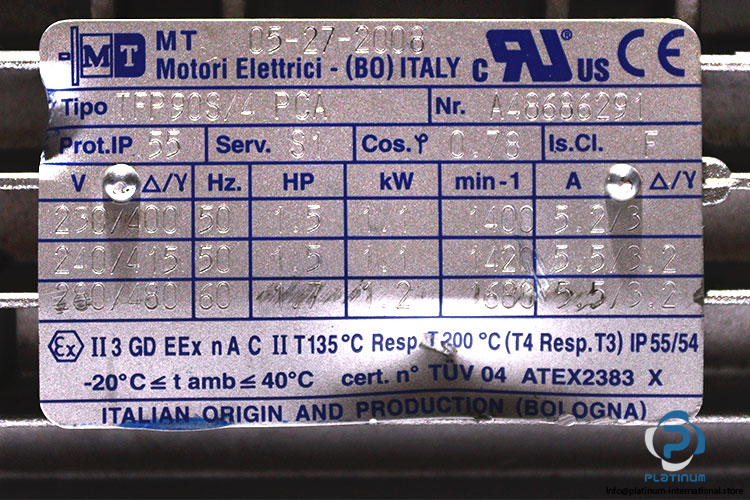

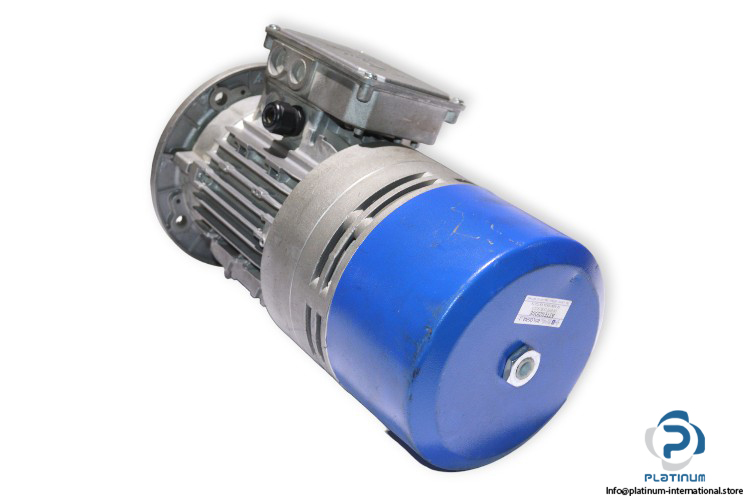

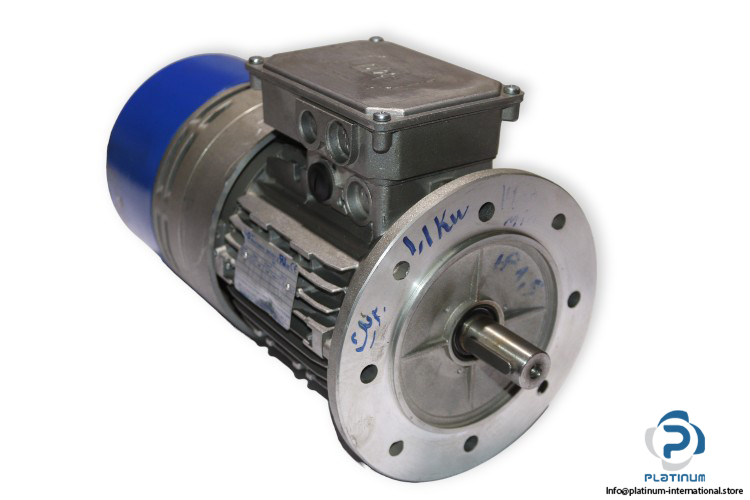

MT TFP90S/4 PCA Brake Motor

Manufacturer: MT
Type: Brake Motor
Model: TFP90S/4PCA

Rated Power [kW]: 1.5/1.7
Rated Voltage at 50Hz [V]: 230-400/240-415
Rated Voltage at 60Hz [V]: 280-480
Rated Current [A]: 5.2-3/5.5-3.2
Rated Speed [min^-1]: 1400/1420/1680
Frequency [Hz]: 50/60
Protection Class [IP]: 55
Temp. [C°]: -20 … 40
Duty: S1
Thermal Class: F
Power Factor [cos]: 0.78
