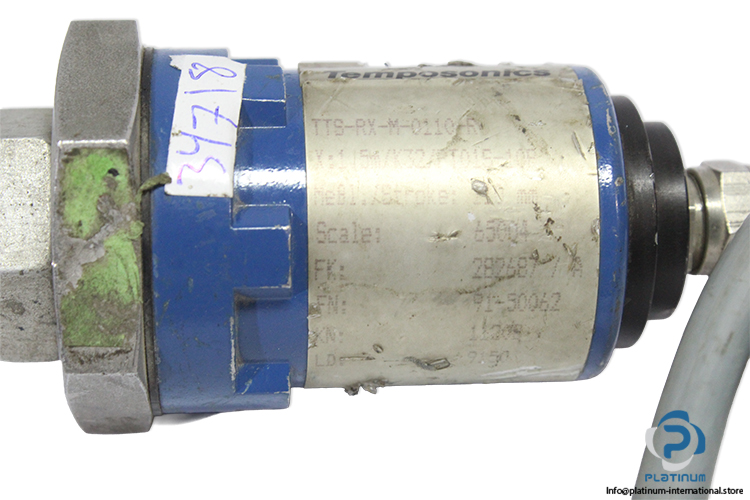

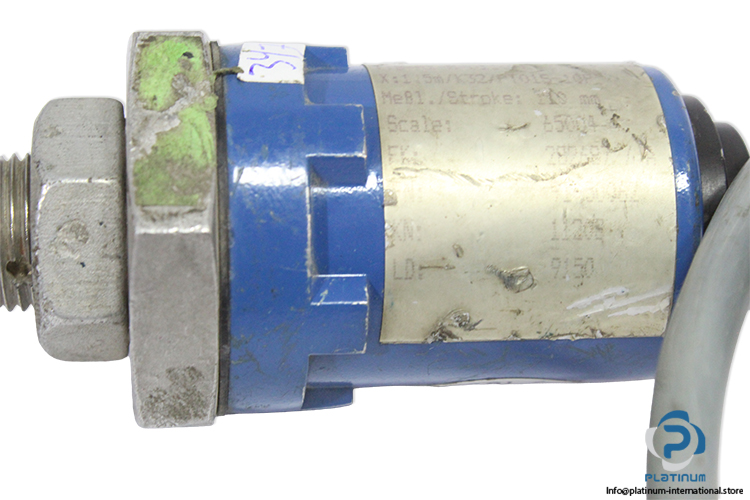

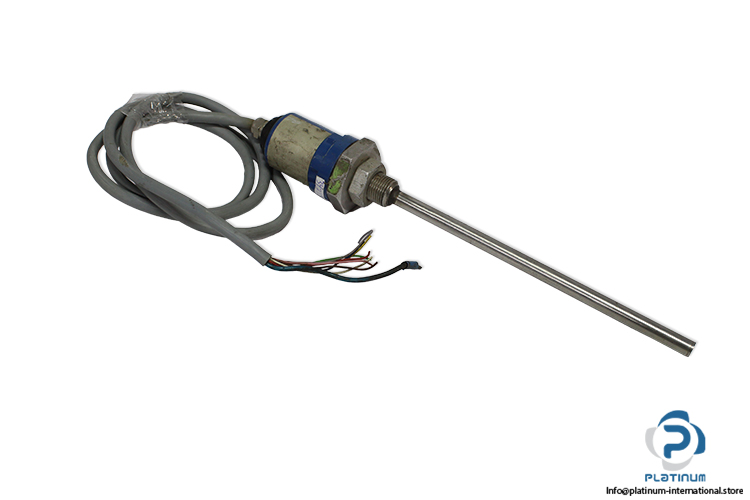

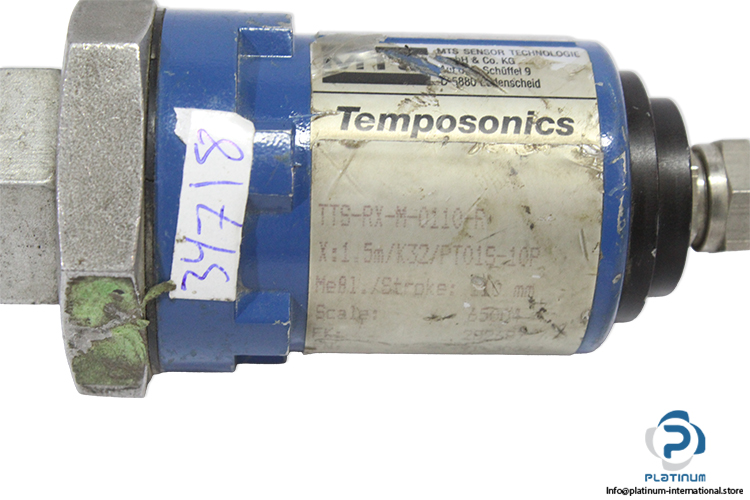

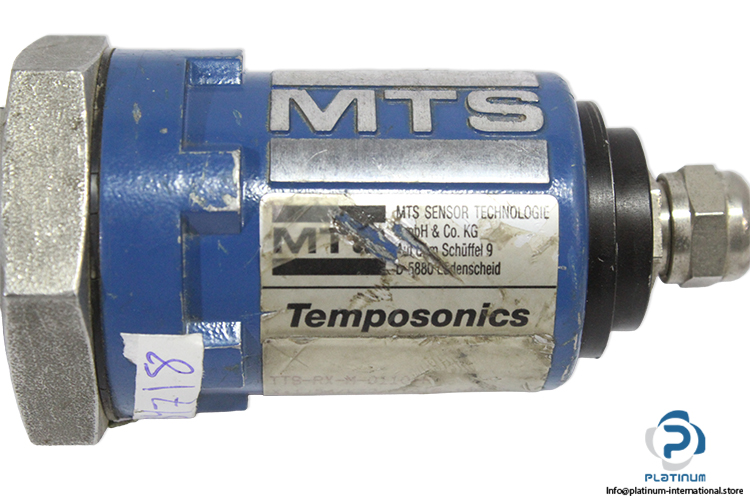

MTS TTS-RX-M-0110-R Linear Position Sensor
Linearer Wegaufnehmer magnetostriktiv MTS Temposonics TTS R-Serie linearer Positionssensor mit 110 mm Messbereich, Stabsonde und hochpräzisem Feedback für industrielle Automatisierung und Hydraulikzylinderanwendungen.
MTS TTS-RX-M-0110-R Linear Position Sensor
The MTS TTS-RX-M-0110-R is a high-precision magnetostrictive linear position sensor designed for accurate position feedback in industrial automation and hydraulic cylinder applications. As part of the Temposonics TTS R-Series, this sensor provides reliable and contactless position measurement with excellent repeatability and long service life.
Manufacturer: MTS
Type: Magnetostrictive Linear Position Sensor
Model: TTS-RX-M-0110-R
Product Line: Temposonics TTS
Series: R-Series
Additional Code: 1.5m / K32 / PT01S / 10P
FK: 282687
FN: 91-50062
LD: 9150
| Technology | Magnetostrictive Linear Position Transducer |
| Measuring Range / Stroke | 110 mm |
| Scale | ±650 µm |
| Probe Type | Rod-Style Sensing Probe |

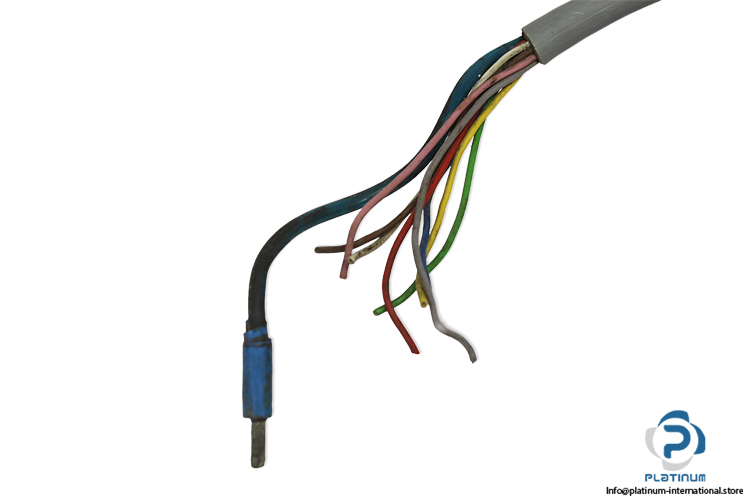

| Connection | Bottom Cable Entry With 8 Single Wires And Flat Connector, Suitable For Internal Cylinder Mounting |
| Recommendation | Ideal for hydraulic cylinders, industrial automation systems, and precision motion control applications where reliable linear position feedback is required. |
