Murr 57280 DI8XDC24V Input Relay
Murr Eingang Relais 57280 DI8XDC24V „Ein kompakter 8-poliger Relais mit 24 V DC Versorgung, PNP Eingangstyp und IP20 Schutz. Ideal für industrielle Anwendungen mit einer Stromkapazität von 0,5 A und Kunststoffgehäuse.“

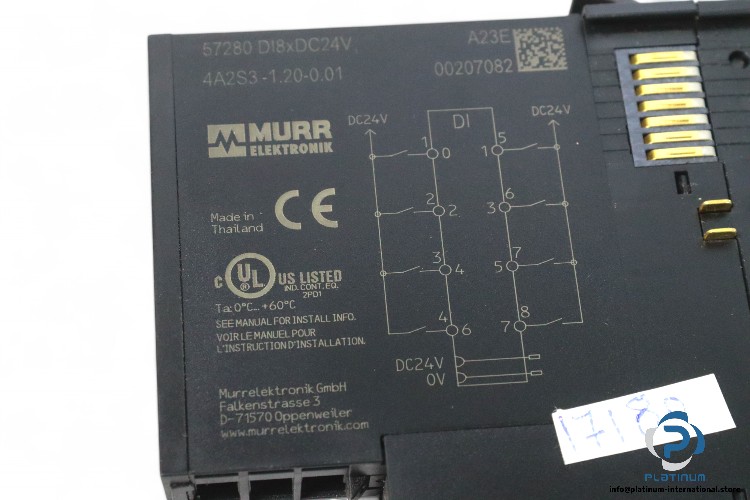

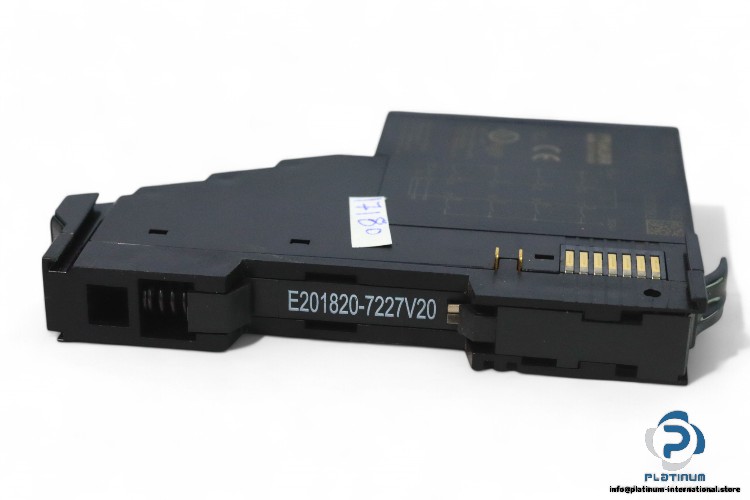

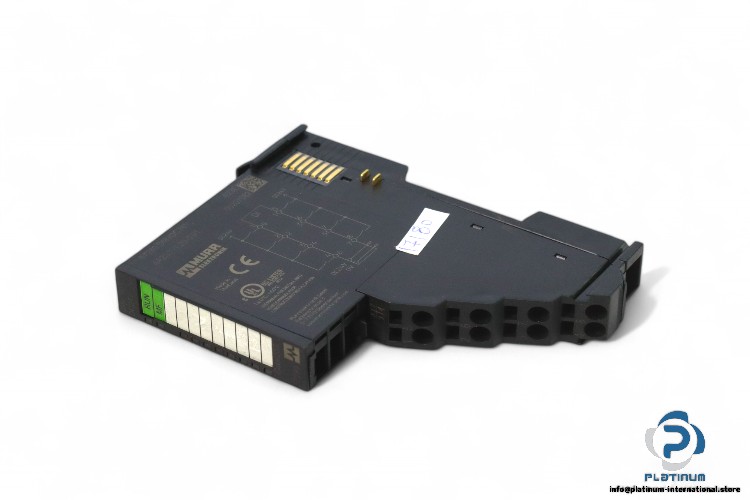

INPUT RELAY 57280 DI8XDC24V by Murr
The Murr Input Relay 57280 DI8XDC24V is a reliable and efficient component designed for industrial applications. With its compact cube design, this input relay offers high-performance switching with a 24 V DC supply voltage and PNP input type, making it ideal for controlling and monitoring electrical circuits.
Key features include:
- Supply Voltage: 24 V DC
- Maximum Current Carrying Capacity: 0.5 A
- Maximum Current Consumption: 60 mA
- Input Type: PNP
- Number of Poles: 8
- Protection Class: IP20
- Housing Color: Black
- Material Housing: Plastic
- Operating Temperature Range: 0 / 60 °C
- Dimensions: 109 x 12.9 x 76.5 mm
Designed for durability and reliability, the Murr Input Relay is the perfect solution for switching and controlling circuits in a wide range of industrial environments, offering ease of integration and efficient performance.
