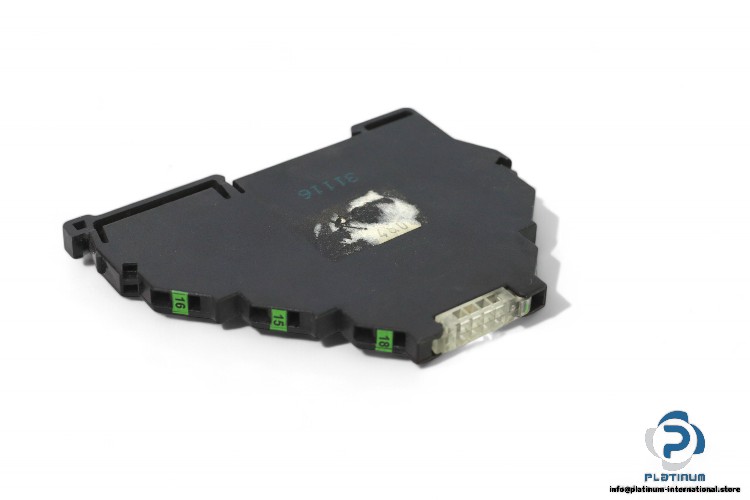

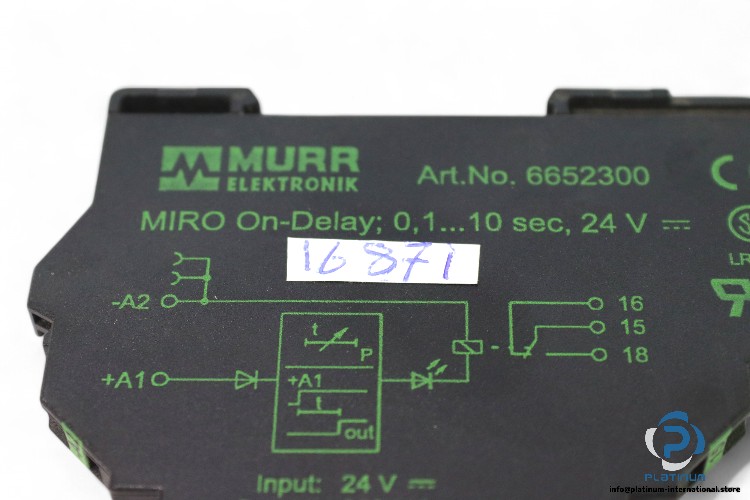

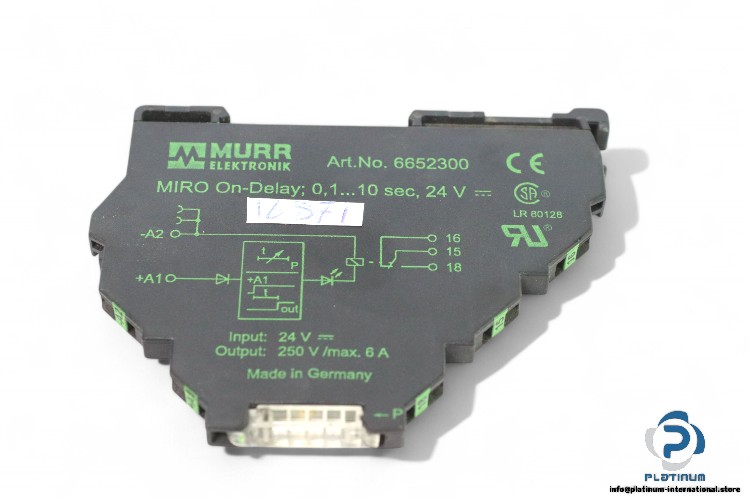

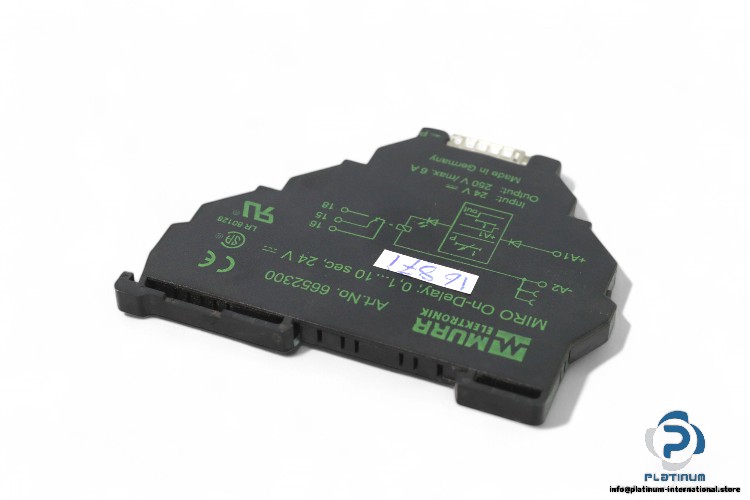

Murr 6652300 Input Relay

Manufacturer: Murr
Type: INPUT RELAY
Part No.: 6652300

Switch on delay: 0.1…10 s
Input data
Voltage: 24 V DC
Current: 16 – 20 m A DC
Output data
Switching voltage: max. 250 V AC/DC
Switching current DC: 100 m A
Frequency: 10 Hz
Rated surge voltage: 4 kV
Power rating AC: max. 1500 VA
Power rating DC:  max. 120 W
Output current max.: Max. 6 A
Connection  type: Spring clamp terminals FK ,Female, black
Contact material: Ag Sn O2
Mounting method: geschnappt, mounting rail, (EN 60715)
Operating Temperature: 0 – 55 °C
Dimension: 91 x 6.2 x 70 mm
