Murr 7000-29541-0000000 Valve Plug
Neu
Auf Lager2 EinheitenVersandbereit
Valve Plug
The MURR 7000-29541-0000000 is a robust valve plug with IP65 protection, 24“230 V AC/DC operation, and yellow LED status indicator for reliable use in industrial automation systems.24“230V561227000-29541-0000000AutomationCableConnectorEntryIndicatorIndustrialIP65LEDMurrPG9PlugsolenoidValve
Umfangreiches Lager
Weltweiter Versand
Experten-Support
Qualitätsgarantie

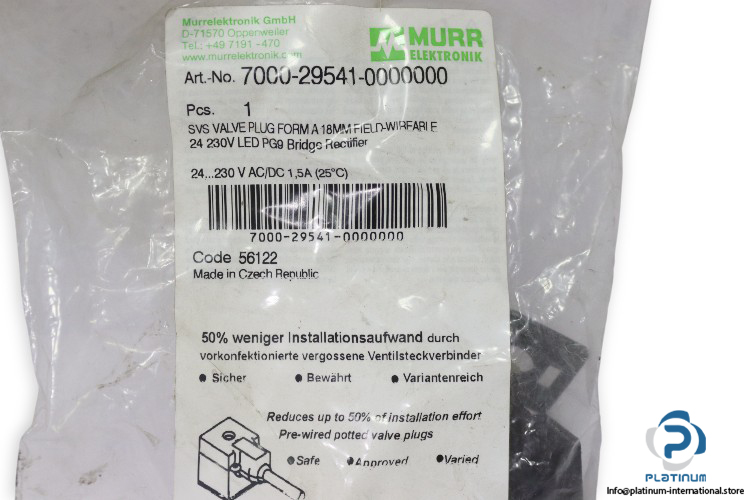

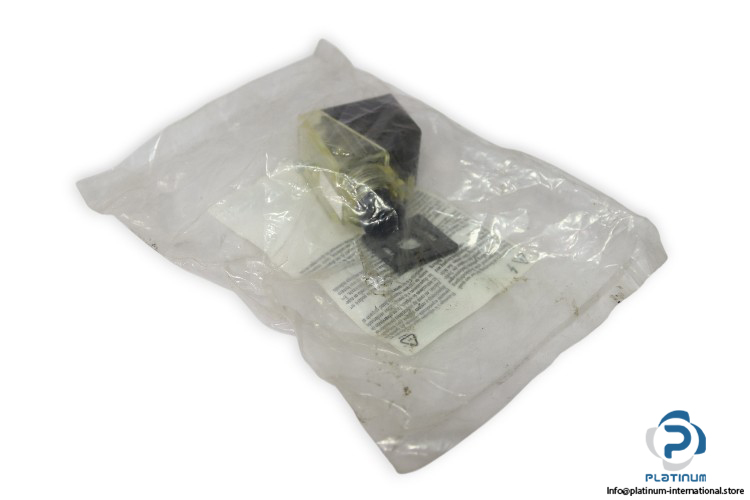

MURR 7000-29541-0000000 Valve Plug
The MURR 7000-29541-0000000 Valve Plug provides secure electrical connection for solenoid valves and sensors. Designed for durability and easy installation, it offers reliable signal transmission in demanding industrial environments.
Manufacturer: MURR
Type: Valve Plug
Model: 7000-29541-0000000
Code No.: 56122
| Mounting Method | Inserted, Screwed |
| Form | A |
| Degree of Protection | IP65 |
| Operating Voltage | 24...230 V AC/DC |
| Current Operating Per Contact Max. | 1.5 A |
| Status Indication LED | Yellow |
| Tightening Torque | 0.4 Nm |
| Mounting Set | M3 |
| No. of Poles | 2 + PE |
| Cable Entry | PG9 |
| Clamping Range Min. | 5 mm |
| Clamping Range Max. | 9.5 mm |
| Operating Temperature | -20 / 60°C |
| Dimensions (W x H x D) | 28 x 45 x 41 mm |
