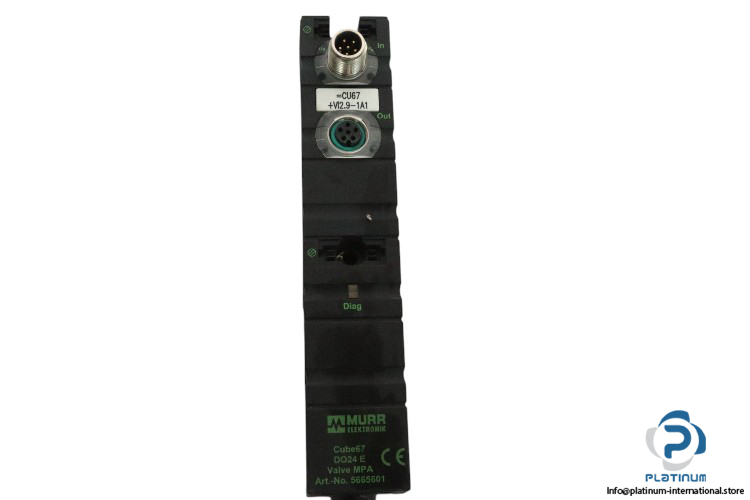

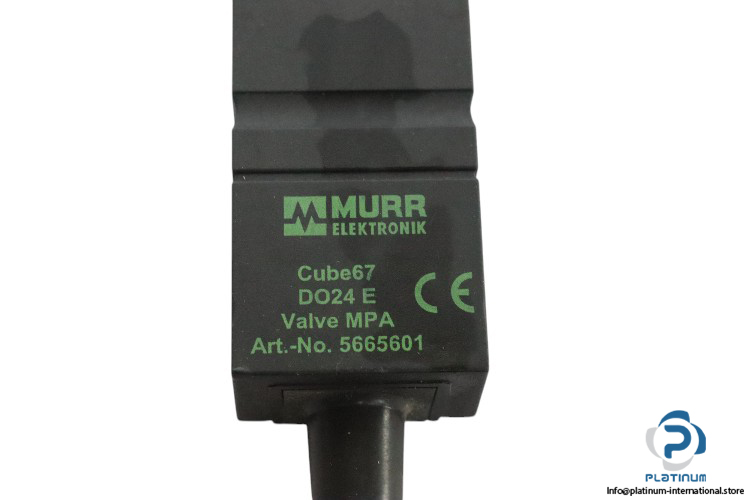

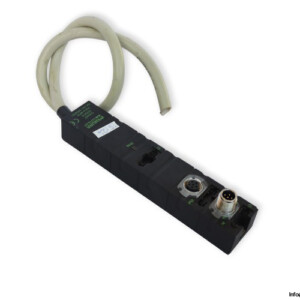

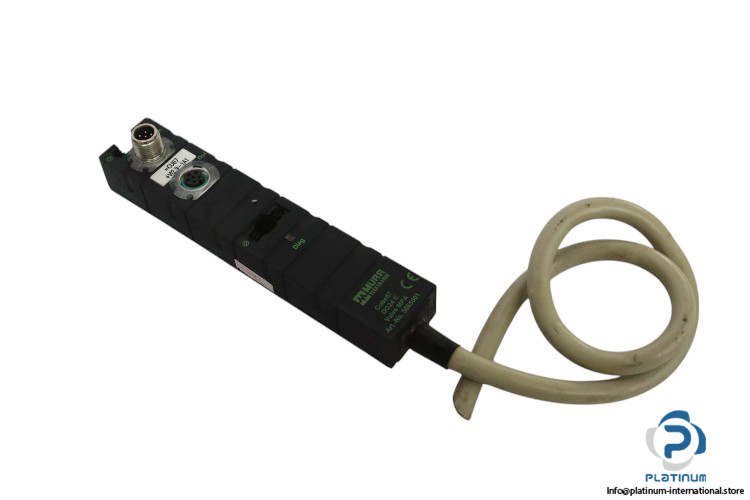

Murr Elektronik CUBE67 DO24 E Valve Interface Module

Murr Elektronik Valve Interface Module CUBE67 DO24E

Murr Elektronik Valve Interface Module CUBE67 DO24E is designed to provide high-performance and reliable control for industrial applications. Offering robust features such as a wide operating temperature range and a high degree of protection, it ensures optimal performance even in challenging environments. Below are the key technical specifications:

• Manufacturer: Murr Elektronik
• Type: Valve Interface Module
• Model: CUBE67 DO24E
• Art. No.: 5665601

Technical Data:

• Operating Voltage (US): 24 V DC
• Current Consumption Max.: 50 mA
• Total Current Max.: 4 A
• Number of Digital Outputs (DO): 24
• Degree of Protection: IP67
• Suitable for Mounting Type: 2-hole screw mounting
• Operating Temperature: 0 / 55°C
• Dimensions: 150 x 30 x 34.5 mm
