Nachi Ucfk 204 ONE Side Flange Housing Unit
Neu
Auf Lager1 EinheitVersandbereit
Einseitige Flansch-Gehäseeinheit Die Nachi UCFK204 Gehäseeinheit verfügt über ein robustes FK 204 Gehäuse und ein UC 204 Lager, das Präzision und Stabilität für anspruchsvolle industrielle Anwendungen bietet.
20204bearingboreCapacityCylindricaldiameterFKFlangeHighHousingIndustrialLoadlockingmmNachiOnescrewSetsideUCUCFK204Unit
Umfangreiches Lager
Weltweiter Versand
Experten-Support
Qualitätsgarantie

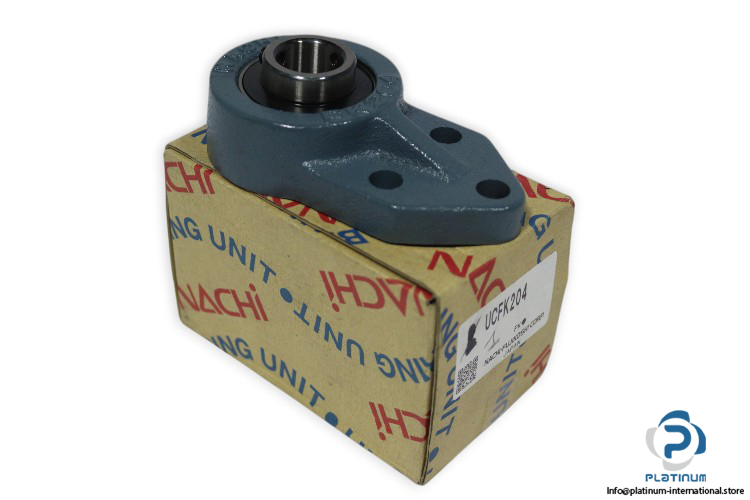

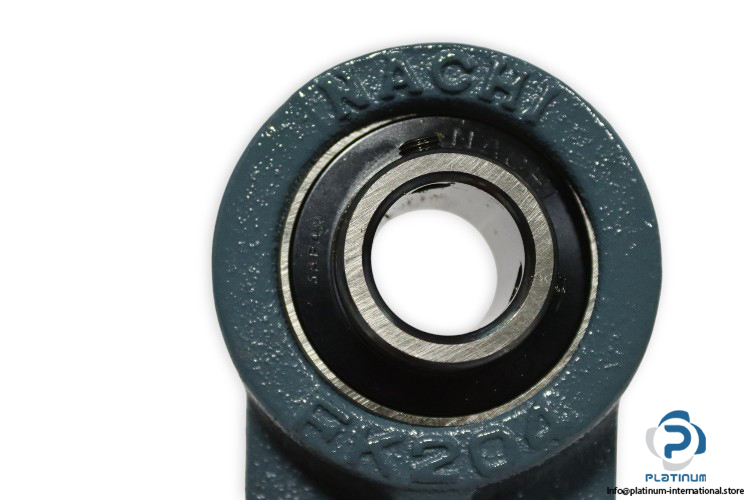

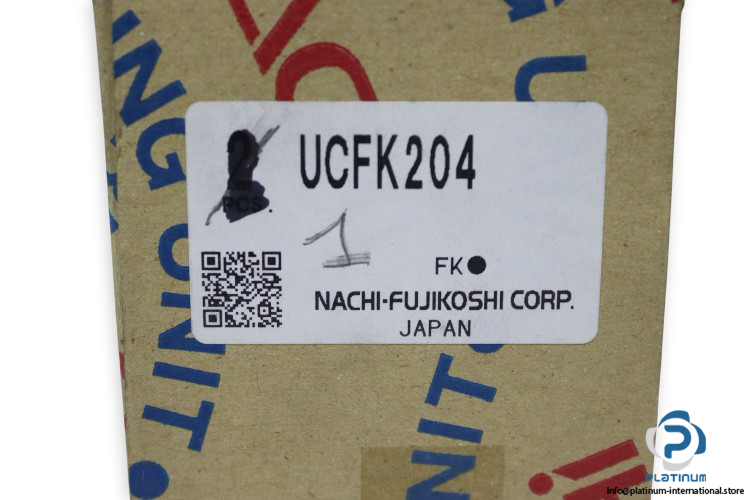

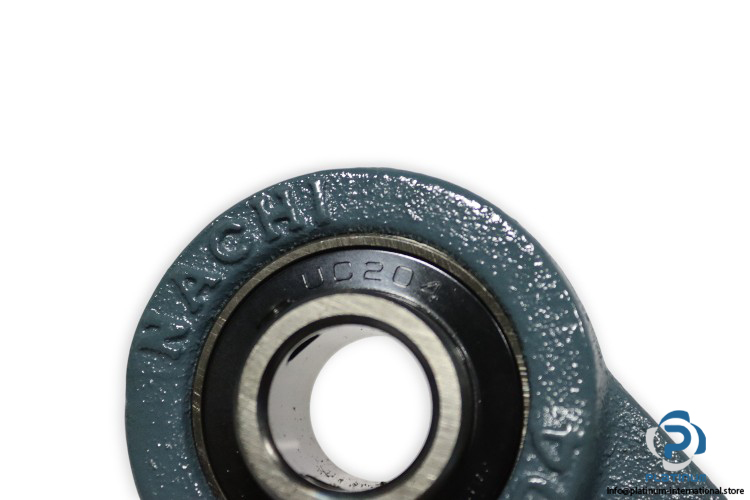

Nachi UCFK204 One Side Flange Housing Unit
The Nachi UCFK204 One Side Flange Housing Unit is a precision-engineered and reliable solution for industrial applications. Featuring the FK 204 housing and UC 204 bearing, this unit offers durability, stability, and efficient operation for demanding environments.
Manufacturer: Nachi
Type: ONE SIDE FLANGE HOUSING UNIT
Model: UCFK204
The Nachi UCFK204 is an ideal choice for machinery requiring accurate alignment, robust construction, and reliable performance in industrial systems.

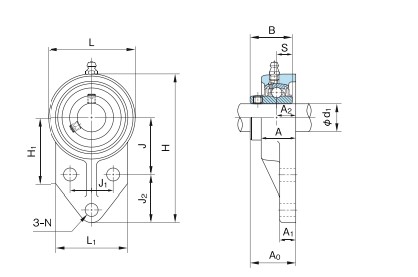

| Bearing No. | UC 204 |
| Housing No. | FK 204 |
| Bore Diameter (d) | 20 mm |
| Overall Length (L) | 62 mm |
| Overall Height (H) | 110 mm |
| Width of Inner Ring (B) | 31 mm |
| J | 42 mm |
| J1 | 32 mm |
| J2 | 27 mm |
| H1 | 52 mm |
| Overall Unit Width (A0) | 33.3 mm |
| Basic Load Rating (Dynamic Cr) | 12800 N |
| Basic Load Rating (Static C0r) | 6600 N |
| Bore Type | Cylindrical Bore |
| Locking Device | Set Screw |
