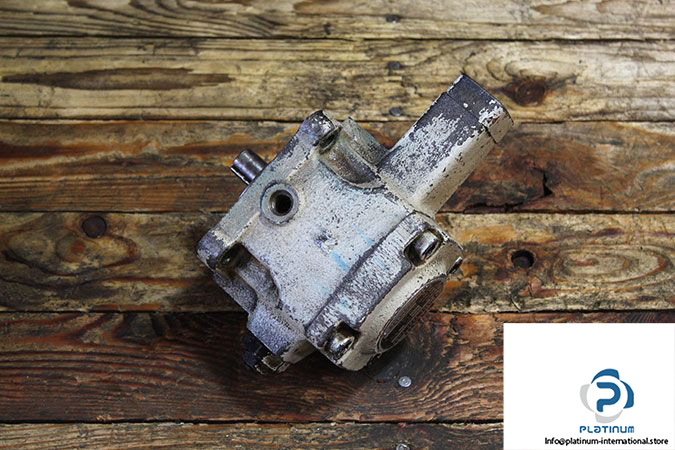

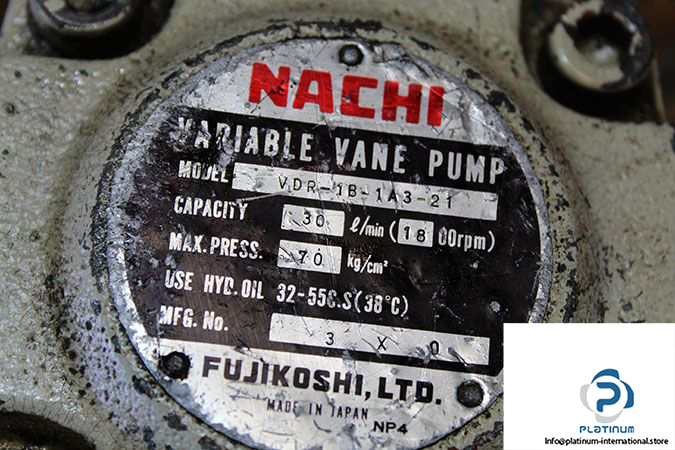

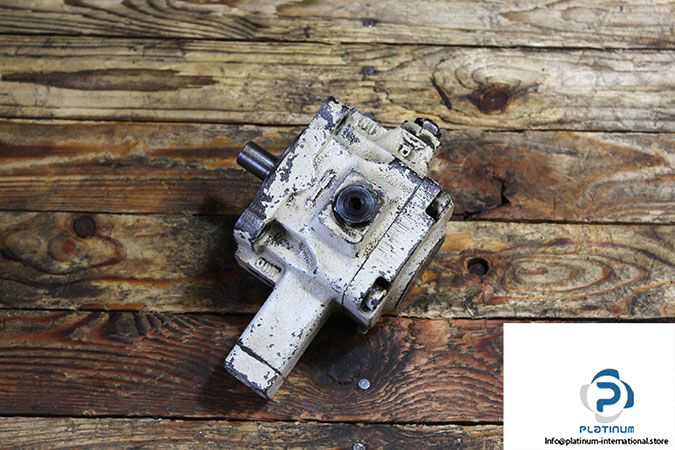

Nachi VDR-1B-1A3-21 Variable Vane Pump

Manufacturer: Nachi

Type: Variable Vane Pump

Model: VDR-1B-1A3-21

size: 1B

Displacement: 11.1 cm³

Direction of Rotation: Clockwise

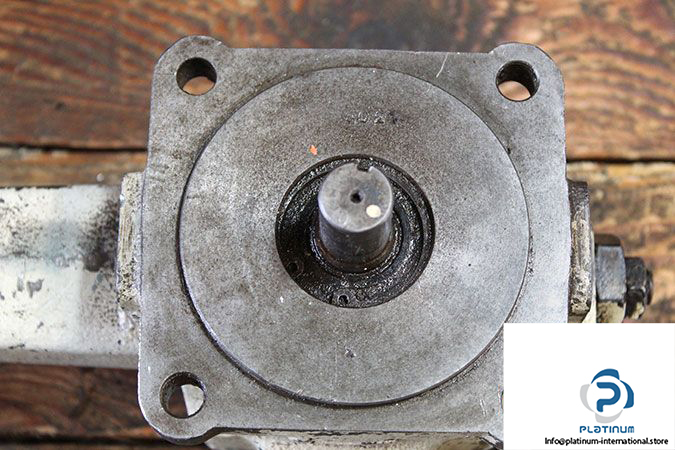

Shaft Diameter: 19 mm

Max. pressure: 70 bar

Speed Range: 800 …. 1800 rpm

Flow Rate at 1800 rpm: 30 l/m

Viscosity Range: 20 ….  150 mm²/s

Weight: 9 Kg
