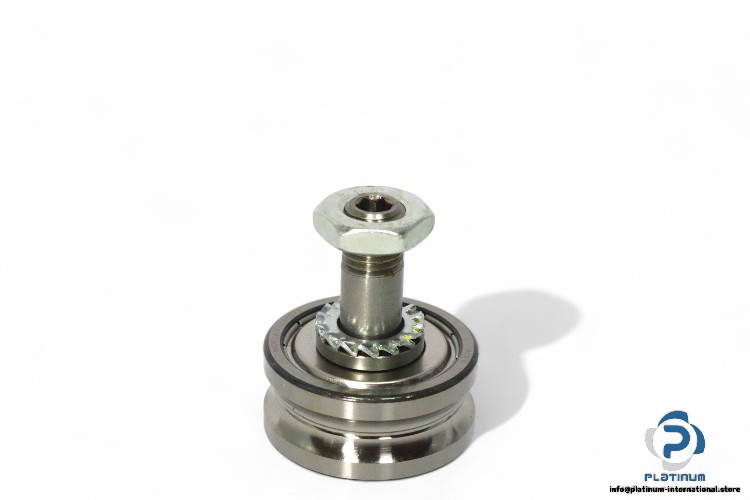

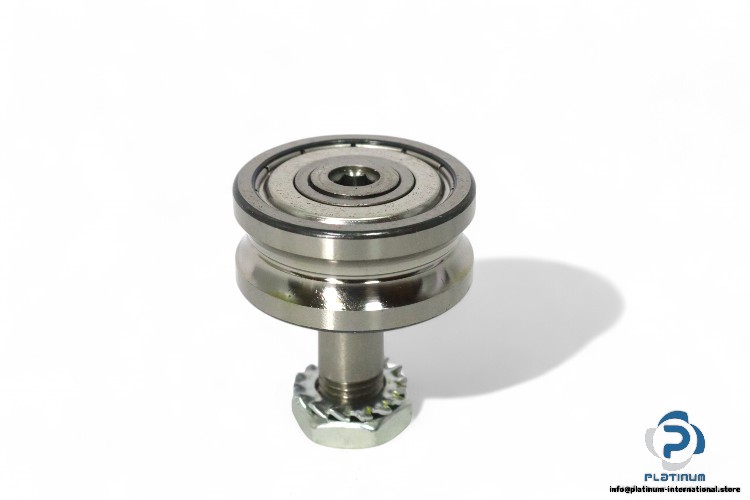

Nadella Rclr 35.10 Eccentric Guide Roller Bearing

Manufacturer: Nadella
Type: ECCENTRIC GUIDE ROLLER BEARING
Model: RCLR 35.10

Type: RCLR (Guide roller with gothic arch profile, based on angular contact ball bearing.), ECCENTRIC

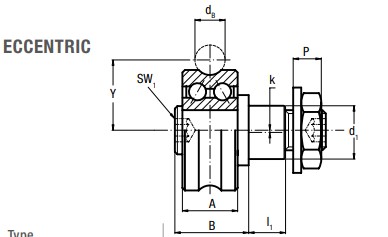

Dimensions
Outside diameter De: 35 mm
Stud diameter d_B: 10 mm
d1: 10 mm
B: 20.5 mm
Y: 20.65 mm
P: 7 mm
Total length L: 43 mm
Width outer ring A: 15.9 mm
Thread stud d: M10 x 1.25
Basic load ratings Dynamic:  7800 N
Limit loads:
Radial F_r: 2400 N
axial F_a: 650 N
Torque wrench settings: 20 Nm
Pressure angle α: 60°
