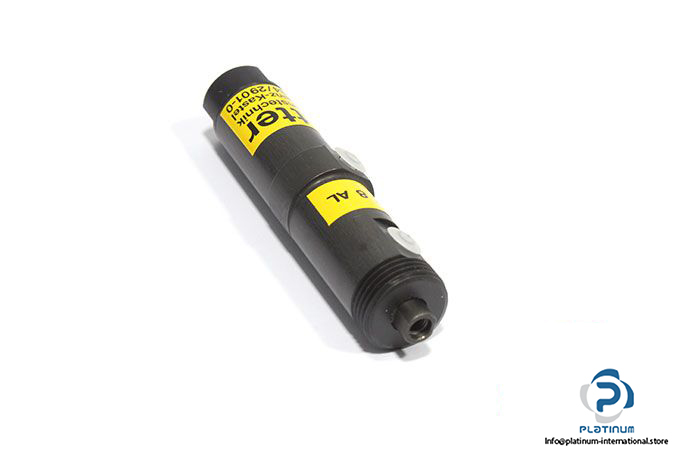

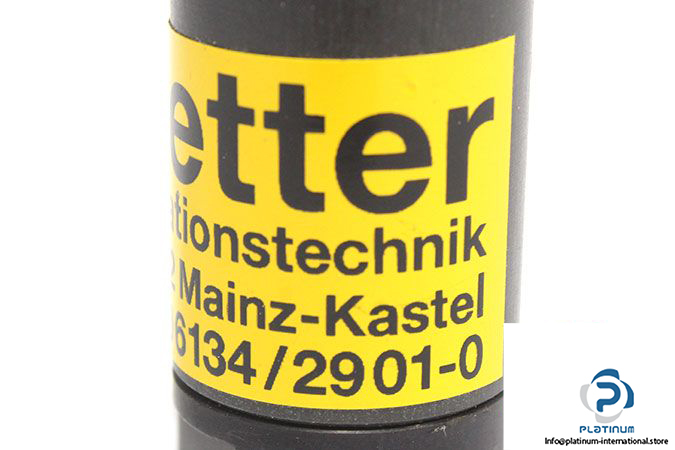

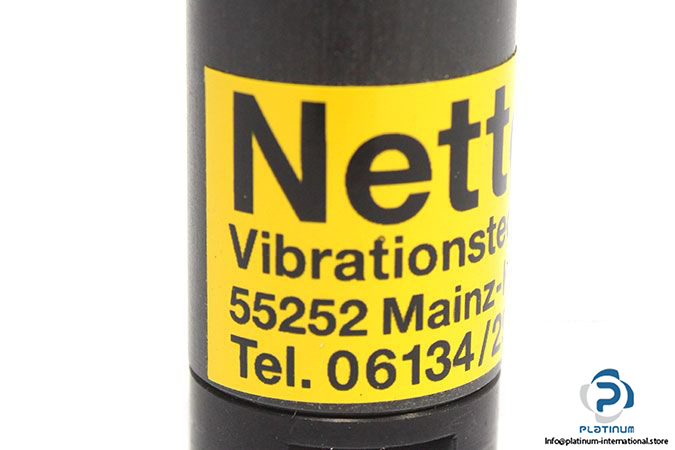

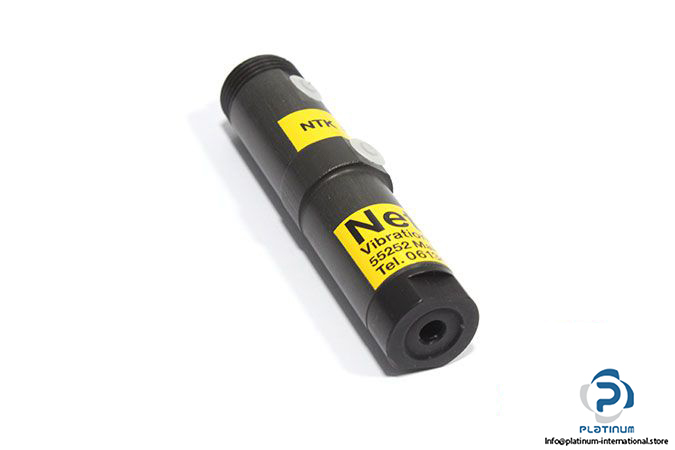

Netter NTK 8 AL Pneumatic Linear Vibrator

Manufacturer: Netter

Type: Pneumatic Linear Vibrator

Model: NTK 8 AL



Operating Pressure: 2…6 bar

Air Consumption

• At 2 bar: 7 l/min
• At 6 bar: 32 l/min

Frequency

• At 2 bar: 2,440 min^-1
• At 6 bar: 3,657 min^-1

Centrifugal Force

• At 2 bar: 15 N
• At 6 bar: 44 N

Unbalance

• At 2 bar:05 cmkg
• At 6 bar:06 cmkg

Connection

• Housing: M5
• Piston: M5

Stroke: 32 mm

Piston Diameter: 8 mm

Ambient Temperature: 5…60 °C

Weight: 0.09 kg
