Norgren RA/28063/50 ISO Cylinder
Neu
Auf Lager2 EinheitenVersandbereit
ISO Cylinder
NORGREN ISO Cylinder RA/28063/50 is designed for single operation mode with compressed air media. Featuring a 63 mm bore diameter, 50 mm stroke, and male piston rod end, it offers reliable performance in industrial pneumatic applications.3/863boreconnectionCylinderGIndustrialISOmalemmNorgrenOperationPistonPneumaticRA/28063/50RODSingleSquare
Umfangreiches Lager
Weltweiter Versand
Experten-Support
Qualitätsgarantie

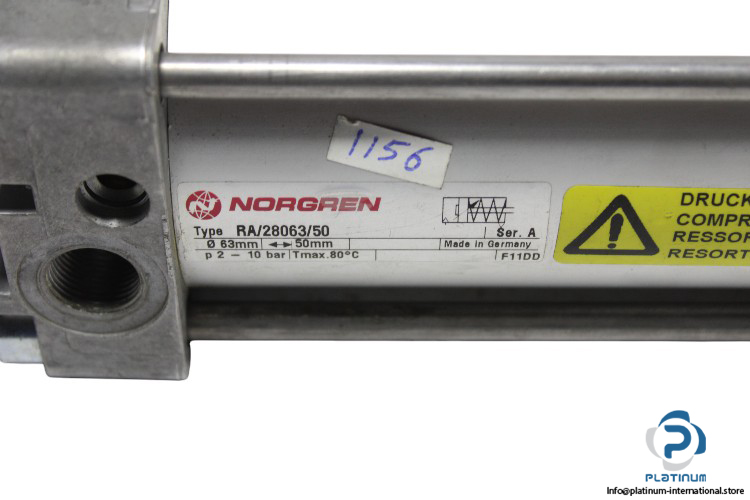

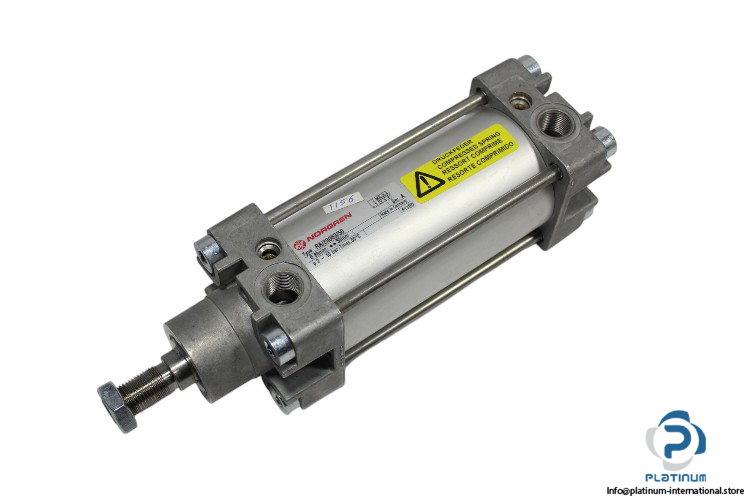

NORGREN ISO Cylinder RA/28063/50
The NORGREN ISO Cylinder RA/28063/50 is designed for reliable and efficient pneumatic operations. This ISO standard cylinder is ideal for use with compressed air systems and offers excellent performance in industrial applications.
Manufacturer: NORGREN
Model: RA/28063/50
Technical Specifications
- Media: Compressed Air
- Bore Diameter: 63 mm
- Stroke: 50 mm
- Bore x Stroke: 63 x 50 mm
- Rod Diameter: 20 mm
- Frame Dimensions: 75 x 235 mm
- Pneumatic Connection: G 3/8
- Pressure: 2 / 10 bar
- Operation Mode: Single
- Piston Rod End: Male
- Shape: Square
- Rod Direction: One Side
