ISO Cylinder
The IMI Norgren RM/8026/M/100 ISO Cylinder features a 25 mm piston diameter, 100 mm stroke, and double acting operation with stainless steel barrel and rod, built to ISO 6432 standards for reliable pneumatic motion control.100256432ActingAdjustableCushioningCylinderDoubleIMIIndustrialISOMagneticmmNorgrenpPistonPneumaticRangeRM/8000/MRM/8026/M/100stainlessSteelStroke
Umfangreiches Lager
Weltweiter Versand
Experten-Support
Qualitätsgarantie

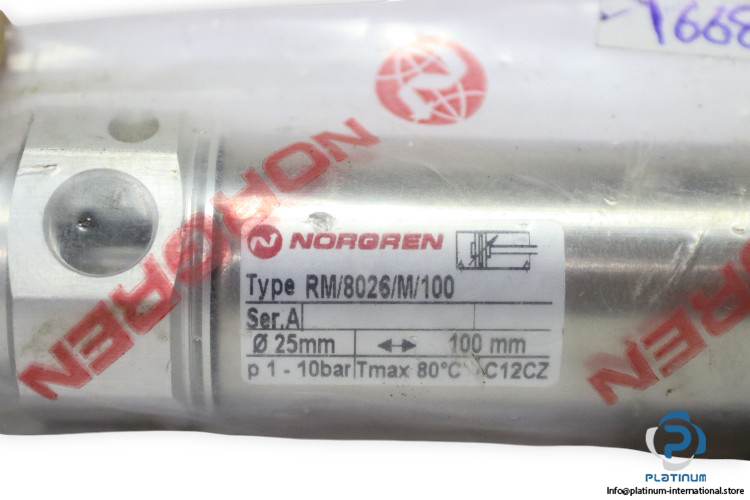

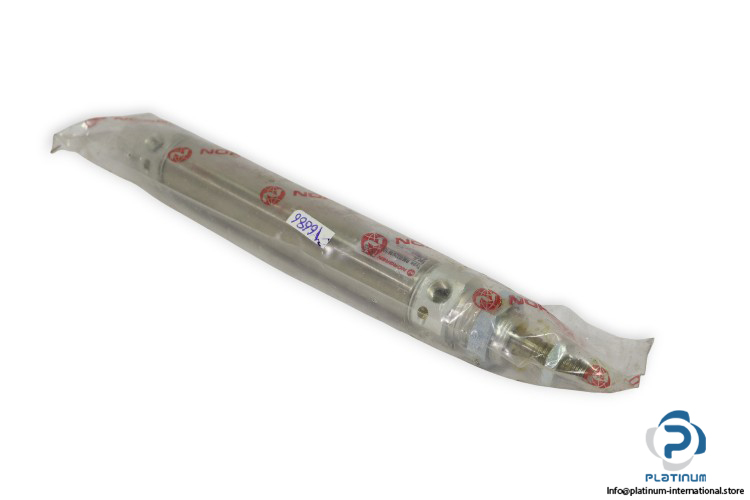

IMI Norgren RM/8026/M/100 ISO Cylinder
The IMI Norgren RM/8026/M/100 ISO Cylinder from the RM/8000/M range is a durable and efficient pneumatic cylinder built to ISO 6432 standards. Designed for precision motion and reliability, it features a stainless steel barrel and rod, ensuring long-lasting performance in demanding automation environments.
Manufacturer: IMI Norgren
Type: ISO Cylinder
Model: RM/8026/M/100
Series: ISO Roundline
Range: RM/8000/M
Ser: A
| Piston Diameter | 25 mm |
| Stroke | 100 mm |
| Port Size | G1/8 |
| Operating Medium | Compressed air, filtered, lubricated or non lubricated |
| Mode of Operation | Double Acting |
| Maximum Operating Pressure | 10 bar |
| Shape | Circular |
| Piston Rod Thread | Male |
| Rod Direction | One Side |
| Operating Temperature | minus 5 to plus 80 degree Celsius |
| Medium | Compressed air |
| Standard | ISO 6432 |
| Cushioning | Adjustable cushioning |
| Magnetic or Non Magnetic | Magnetic |
| Theoretical Force | 294 N |
| Materials - Barrel | Stainless steel austenitic |
| Materials - Piston Head Seals | Nitrile rubber NBR |
| Materials - Piston Rod | Stainless steel austenitic |
| Dimensions - Height | 30 mm |
| Dimensions - Length | 235 mm |
| Dimensions - Width | 30 mm |
