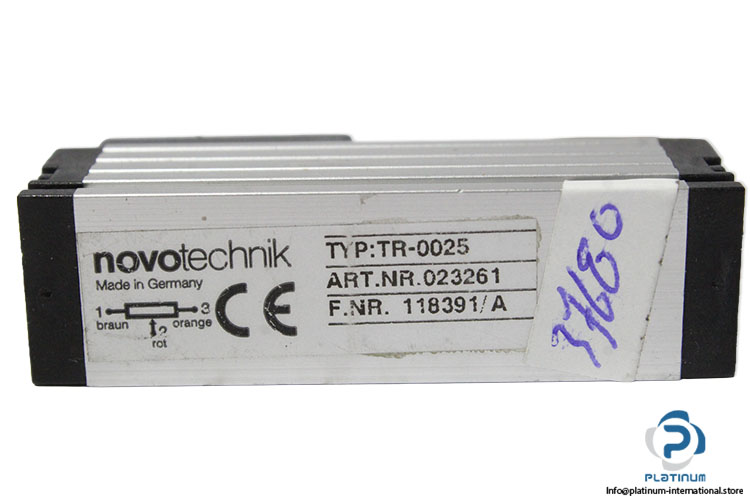

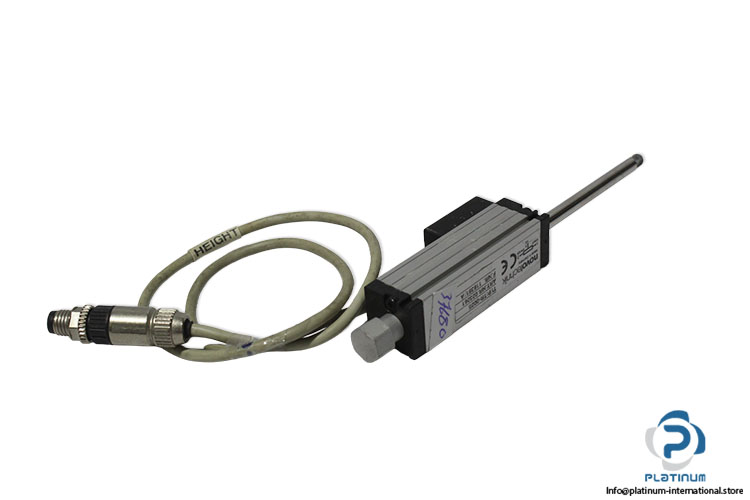

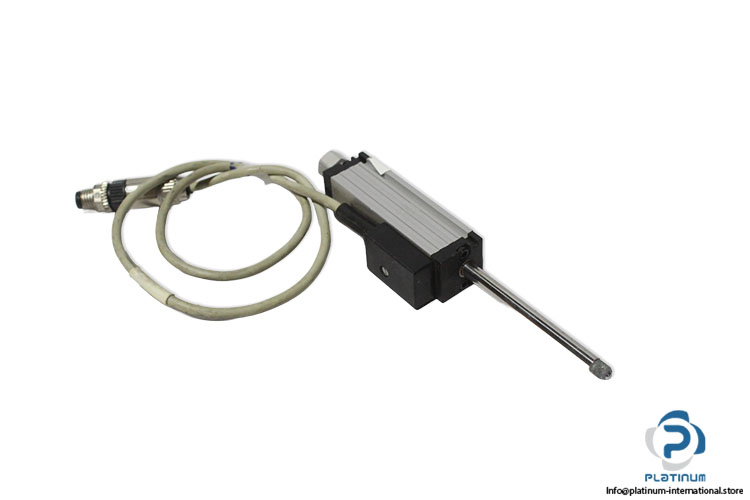

Novotechnik TR-0025 Position Transducers Potentiometric
Gebraucht
Auf Lager1 EinheitVersandbereit
The NOVOTECHNIK TR-0025 is a potentiometric linear position transducer featuring a 25 mm electrical range, 27 mm stroke, 1,000 ohm nominal resistance, and anodized aluminum housing. Designed for accurate position measurement in industrial automation and motion control applications.
Umfangreiches Lager
Weltweiter Versand
Experten-Support
Qualitätsgarantie
| Housing Material | aluminum, anodized |
| Nominal resistance | 1,000 ohms |
| Electrical stroke | 27 mm |
| Defi¬ned electrical range | 25 mm |
| Voltage | max. 42V |
| Operating frequency | max. 18 Hz |
| Independent linearity | 0.2% |
| Recommended operating wiper current | max, 1 mA |
| Temperature range | -30 .... 100 °C |
| Protection Degree | IP40 (DIN EN 60529) |
| Condition | Used |
| Stock key | JO-004 |
| SKU | 1093410 |
| Weight | 0,07 |
