NSK LAH20BNZ Linear Guideway Block
Gebraucht
Auf Lager1 EinheitVersandbereit
Linearführung Block NSK LAH20BNZ / LH20BNZ Größe 20 quadratischer Linearführungsblock mit leichtem Vorspann (Z), hoher Tragfähigkeit und präziser Montage für industrielle Automatisierungssysteme.
Umfangreiches Lager
Weltweiter Versand
Experten-Support
Qualitätsgarantie

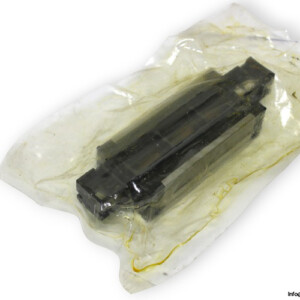

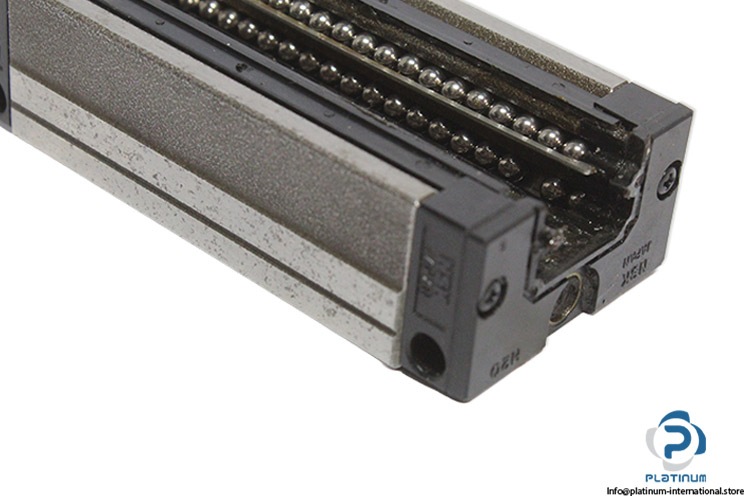

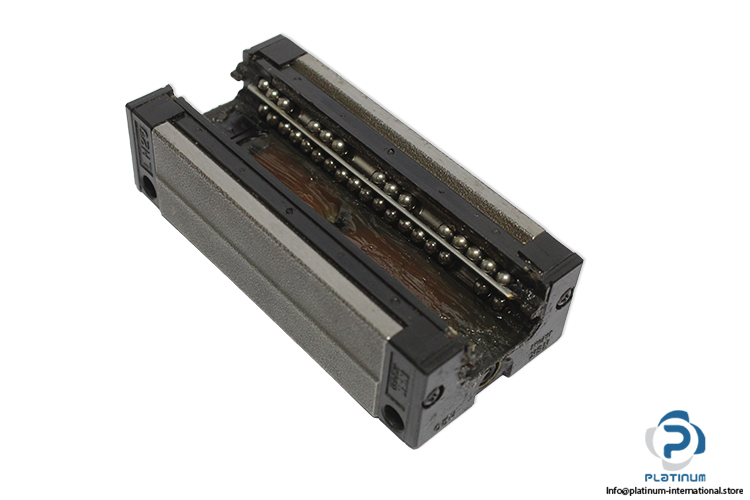

NSK LAH20BNZ / LH20BNZ Linear Guideway Block
The NSK LAH20BNZ and LH20BNZ linear guideway blocks are precision square-type motion components designed for smooth linear movement and high load capacity in industrial automation systems.
Manufacturer: NSK
Type: Linear Guideway Block
Model: LAH20BNZ , LH20BNZ
Size: 20
Recommended for CNC machines, automation systems, precision positioning equipment, and high-accuracy linear motion applications.
Please contact us via Ask for assistance with any inquiries.

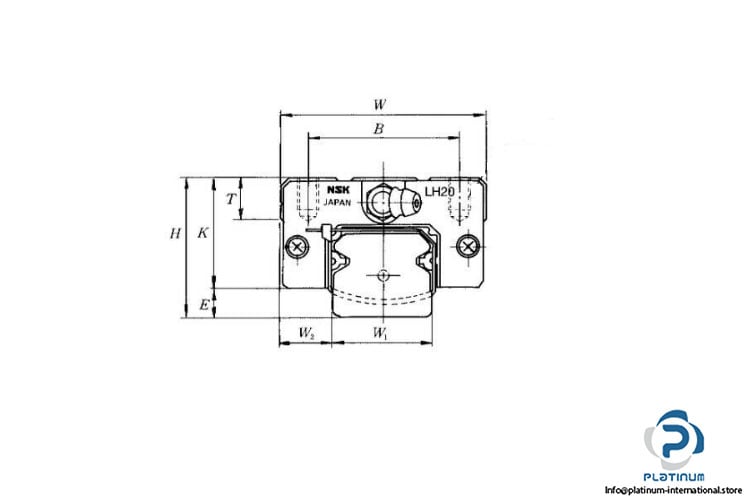

| Total Height (H) | 30 mm |
| Block Height (K) | 25 mm |
| Width (W) | 44 mm |

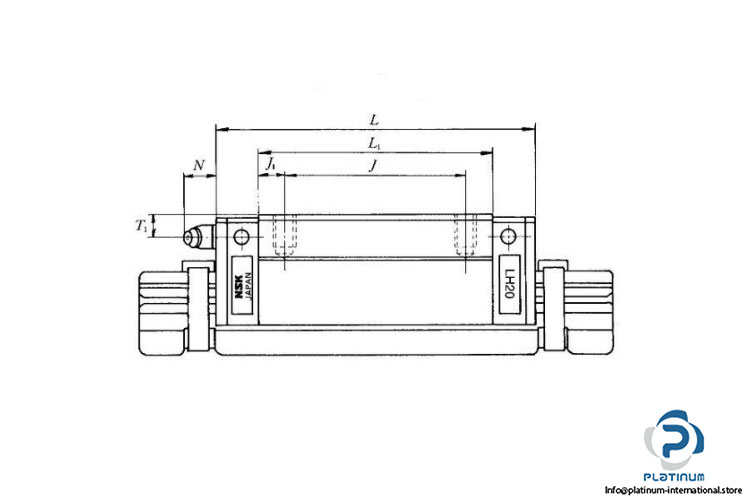

| Block Length (L) | 91.8 mm |
| B | 32 mm |
| J | 50 mm |
| L1 | 72 mm |
| Preload Code | Z; Slight preload |
| Block Type | Square Type |
| Mounting Hole | 4 Tapped holes |
| Hole Size | M6 x 0.75 |
| Basic Dynamic Load Rating | 1860 kgf |
| Basic Static Load Rating (C0) | 4020 kgf |
