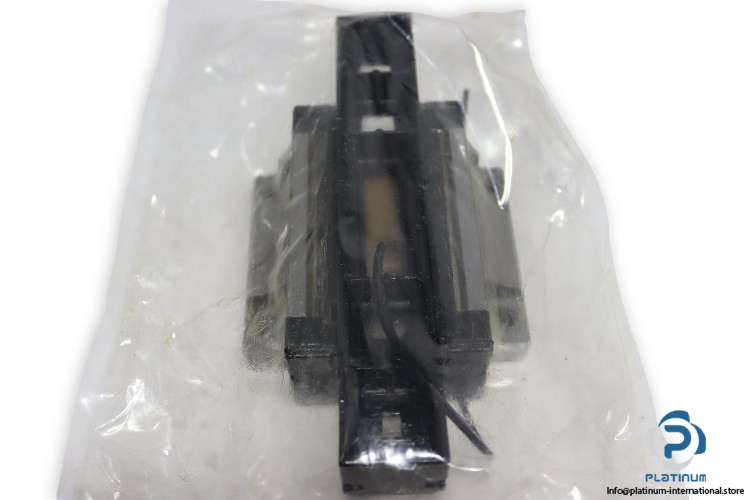

NSK LAH30 EMZ Linear Guide Rail Block
Neu
Auf Lager4 EinheitenVersandbereit
149,99$
LINEAR GUIDE RAIL BLOCK NSK LAH30-EMZ Linearführungsblock, Größe 30, mit 42 mm Höhe, 90 mm Breite, EM geflanschtes Design, Z Vorspannung, dynamische Traglast 2980 kgf und statische Traglast 5490 kgf.
Umfangreiches Lager
Weltweiter Versand
Experten-Support
Qualitätsgarantie
NSK LAH30-EMZ Linear Guide Rail Block
The NSK LAH30-EMZ is a precision-engineered linear guide rail block designed for high-load capacity and smooth linear motion. Built with a flanged EM type design and Z preload, it ensures stability, durability, and accuracy in demanding industrial and automation applications.
Manufacturer: NSK
Type: Linear Guide Rail Block
Model: LAH30-EMZ

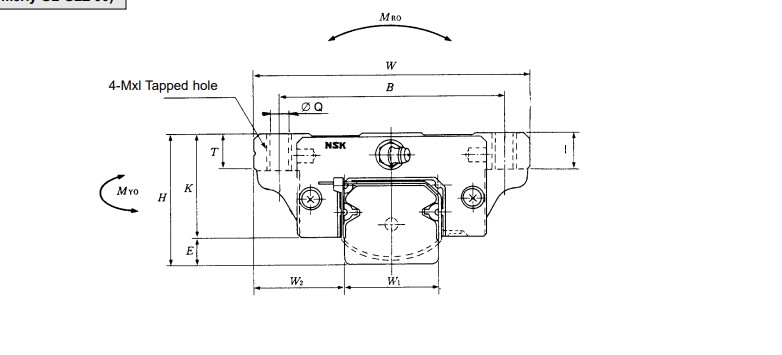

| Size | 30 |
| Height (H) | 42 mm |
| Width (W) | 90 mm |
| Block Height (K) | 33 mm |
| Block Length (L) | 98.6 mm |
| E | 9 mm |
| W2 | 31 mm |
| B | 72 mm |
| L1 | 72 mm |
| J | 52 mm |
| J1 | 10 mm |
| Basic Load Rating Dynamic (C) | 2980 kgf |
| Basic Load Rating Static (C0) | 5490 kgf |
| Screw | M10 x 12 |
| Mounting Hole Thread | M6 x 0.75 |
| Ball Slide Type | LAH |
| Flanged Type | EM (Tapped & Thru hole), Standard, High load |
| Preload Type | Z |
