NSK NAH20ANZ-L Linear Guideway Block

Manufacturer: NSK
Type: LINEAR GUIDEWAY BLOCK
Model: NAH20ANZ L

Size: 20 mm

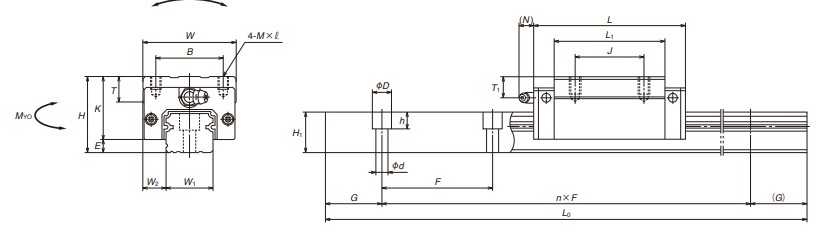

Dimensions
Total Height H: 30 mm
Block Width W: 44 mm
Block Length L: 69.8 mm
Block Height K: 25 mm
E: 5 mm
B: 32 mm
Interchangeable ball slide model code: NAH
Ball slide shape code: AN
Preload: Z, Slight preload
Option code: L, Equipped with NSK K1-L
Block Type: Square Standard Type
Load Type: High Load
Basic Load Ratings:
Dynamic C: 23700 N
Static C₀: 32500 N
Allowable Static Moment:
X axis M_RO: 219 Nm
Y axis M_YO: 185 Nm
Z axis M_PO: 155 Nm
