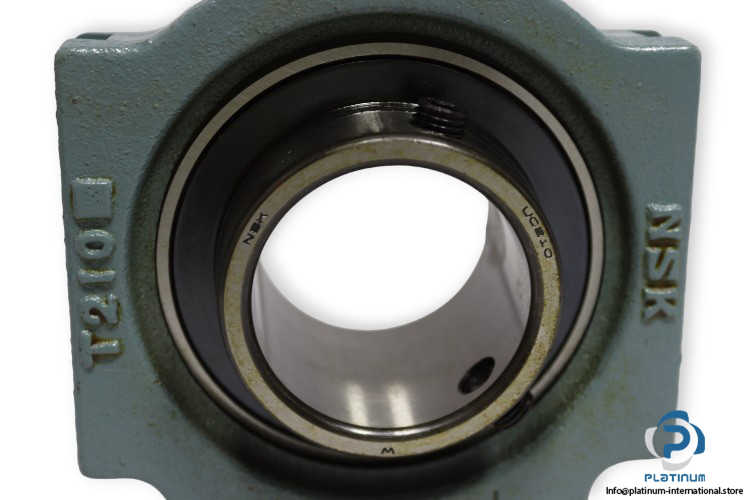

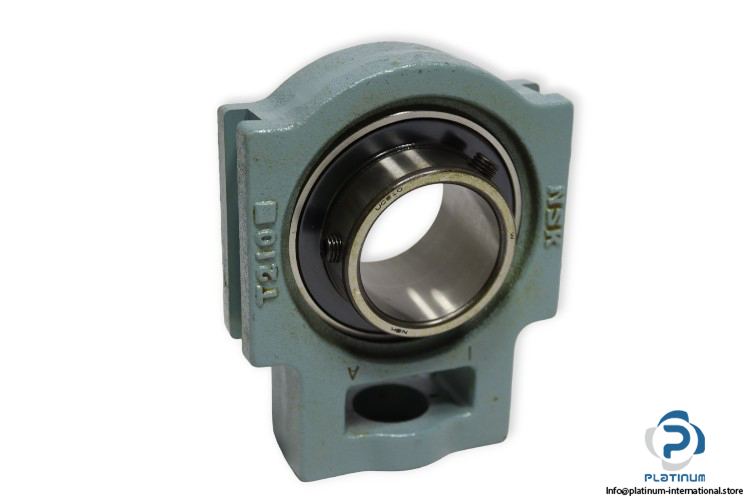

NSK UCT210 Take UP Ball Bearing Unit

Name: NSK UCT210 TAKE UP BALL BEARING UNIT
SKU: 1049027
Availability: LimitedAvailability

nsk-UCT210-take-up-ball-bearing-unit-(new)

nsk-UCT210-take-up-ball-bearing-unit-(new)-1

nsk-UCT207-take-up-ball-bearing-unit-(new)-3

Neu

Auf Lager1 EinheitVersandbereit

Hersteller: NSK Typ: Nachspannkugellagereinheit Modell: UCT 210 Gehäusenr.: T210 Lagernr.: UC210

Hersteller

NSK

SKU

1049027

Kategorie

Plummer Block Housing Units

Zustand

Neu

bearing Block flanged NSK Pillow Take UCT Unit up

Umfangreiches Lager

Weltweiter Versand

Experten-Support

Qualitätsgarantie

Manufacturer: NSK
Type: Take up ball bearing unit
Model: UCT 210
Housing No.: T210
Bearing No.: UC210

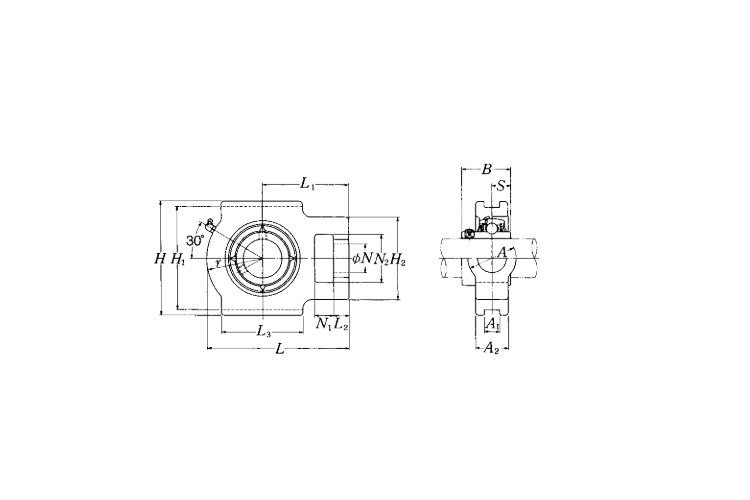

Shaft diameter: 50 mm
Overall width A: 49 mm
Width of inner ring B: 51.6 mm
Width of piloting groove A1: 16 mm
Overall height H: 117 mm
Height of attachment end H2: 83 mm
Overall length L: 151 mm
Diameter of attachment bolt hole N: 29 mm
Length of attachment slot N1: 19 mm
Height of attachment slot N2: 49 mm
Length of piloting groove L3: 86 mm
Housing type: Take-up
Material, housing: Cast iron
Locking Device: set screw locking
