NTN 3304S Double ROW Angular Contact Ball Bearing

Name: NTN 3304S DOUBLE ROW ANGULAR CONTACT BALL BEARING
SKU: 1085323
Availability: LimitedAvailability

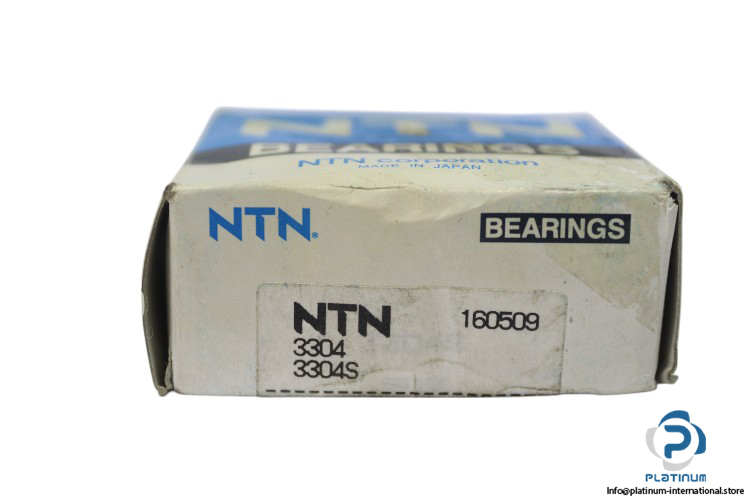

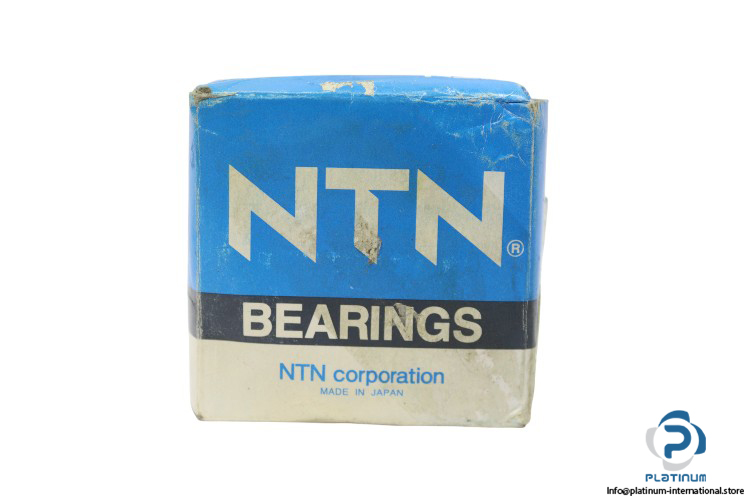

ntn-3304S-double-row-angular-contact-ball-bearing-new-carton

ntn-3304S-double-row-angular-contact-ball-bearing-new-carton-1

Neu

Auf Lager1 EinheitVersandbereit

Doppelreihiges Rillenkugellager mit 32° Kontaktwinkel, Doppelreihen-Konstruktion und robustem gepresstem Stahlkäfig, bietet überlegene Leistung bei axialen und radialen Lastanwendungen.

Hersteller

NTN?

SKU

1085323

Kategorie

Angular Contact

Zustand

Neu

20 32 3304S 52 Angle Angular Ball bearing bore Cage Contact Degree diameter Double High Load mm NTN Outer pressed Row Steel

Umfangreiches Lager

Weltweiter Versand

Experten-Support

Qualitätsgarantie

NTN 3304S DOUBLE ROW ANGULAR CONTACT BALL BEARING

The NTN 3304S is a high-performance double row angular contact ball bearing engineered for applications requiring combined axial and radial load capacity. With a 32° contact angle and durable pressed steel cage, this bearing is ideal for precision, high-load mechanical assemblies.

Manufacturer: NTN

Type: Double Row Angular Contact Ball Bearing

Model: 3304S

Bore Diameter (d)	20 mm
Outer Diameter (D)	52 mm
Width (B)	22.2 mm
Contact Angle	32°
Static Load Rating	18000 N
Dynamic Load Rating	20800 N
Cage	S, Pressed Steel Cage
