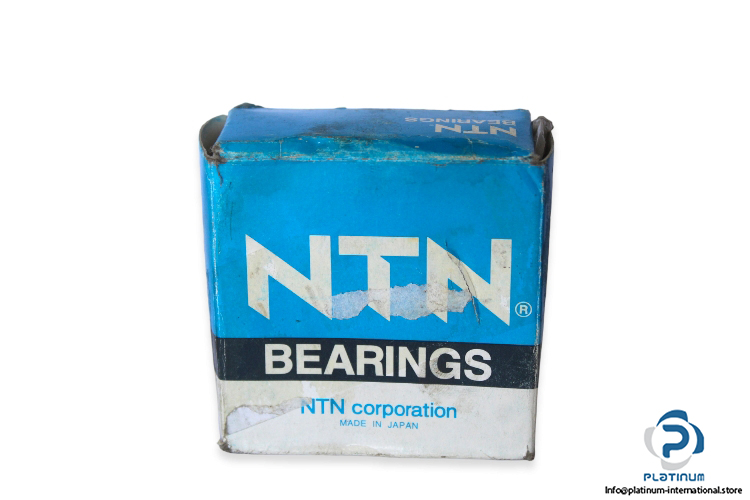

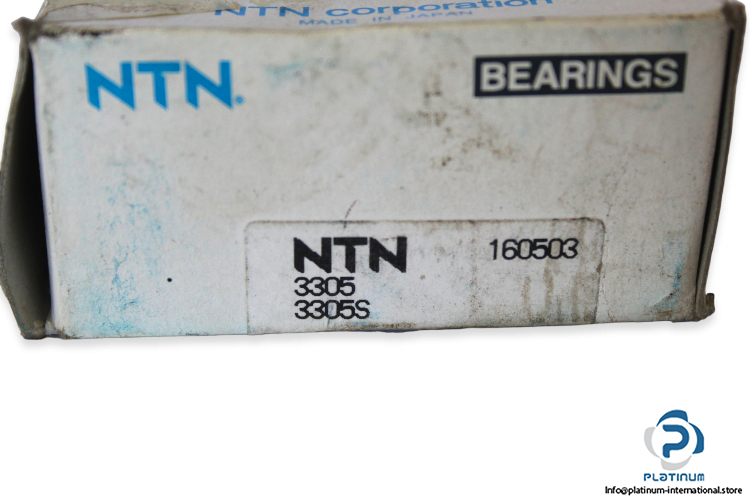

Name: NTN 3305S DOUBLE ROW ANGULAR CONTACT BALL BEARING
SKU: 999551
Availability: LimitedAvailability

Manufacturer: NTN

Type: Double Row Angular Contact Ball Bearing

Model: 3305 S

Dimensions

Bore Diameter d: 25 mm

Outer diameter D: 62 mm

Width B: 25.4 mm

Contact angle: 32 °

Basic load ratings, radial:

Dynamic C_r: 27300 N

Static C_0r: 26600 N

Spezifikation	Wert
Weight	0,42 kg
Condition	New
Shelf No.	230221

Preis	Auf Anfrage
Lager	Auf Anfrage verfügbar
Kategorie	Angular Contact
Zustand	Neu
SKU	999551

Weight	0,42 kg
Condition	New
Shelf No.	230221

NTN 3305S Double ROW Angular Contact Ball Bearing
