NTN 51101 Thrust Ball Bearing

Manufacturer: NTN

Type: Single Direction Thrust Ball Bearings

Model: 51101

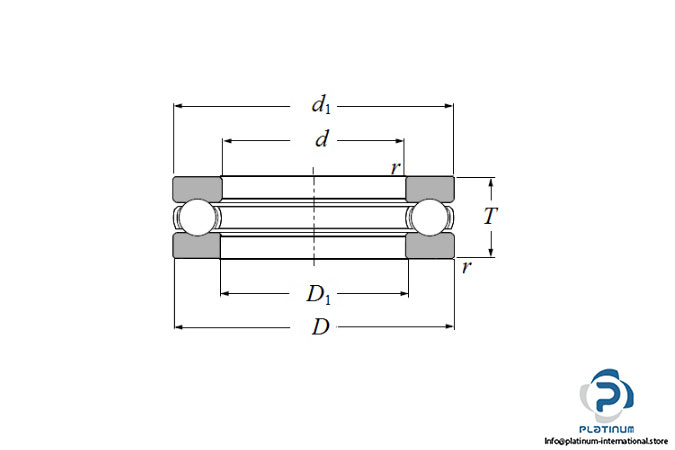

Dimensions

Bore diameter d: 12 mm

Outer diameter D: 26 mm

Height T: 9 mm

Outside diameter shaft washer d₁: 26 mm

Inner diameter housing washer D₁: 13 mm

Minimum chamfer dimension r_{s min}: 0.3 mm

Basic load ratings:

Dynamic C_a: 10300 N

Static C_0a: 15400 N

Allowable speed:

Grease lubrication: 6400 rpm

Oil lubrication: 9200 rpm

Cage Material: Resin

Cage Type: Molded
