NTN 7312 BL1DB Angular Contact Ball Bearing
Neu
Auf Lager2 EinheitenVersandbereit
Duplex-Winkelkontakt-Kugellager NTN 7312 BL1DB Duplex-Winkelkontakt-Kugellager mit Rücken-an-Rücken (DB) Anordnung, 40-Grad Kontaktwinkel und hoher Tragfähigkeit für präzise Industrieanwendungen.
Umfangreiches Lager
Weltweiter Versand
Experten-Support
Qualitätsgarantie

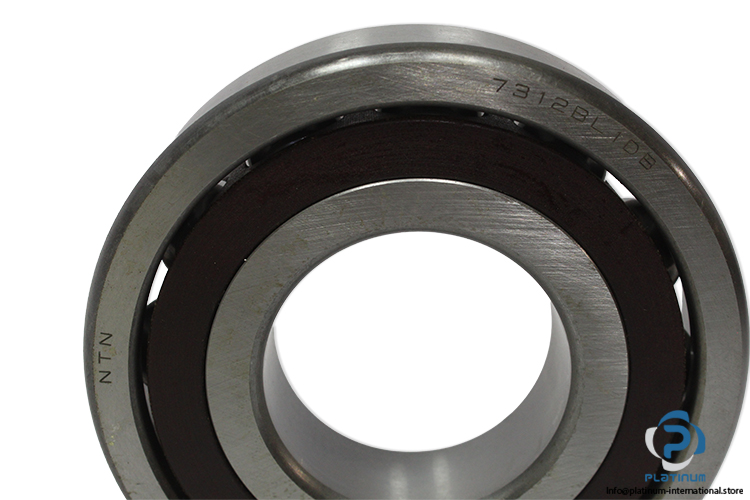

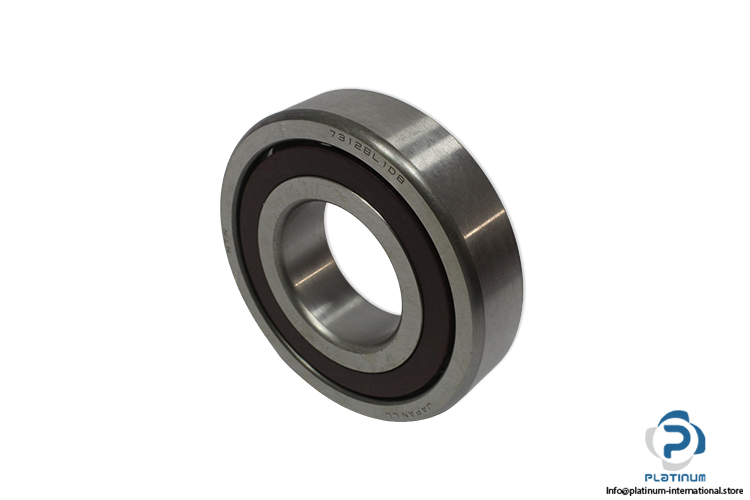

NTN 7312 BL1DB Duplex Angular Contact Ball Bearing
A high-precision duplex angular contact ball bearing manufactured by NTN, designed to support combined radial and axial loads with high rigidity and accuracy. This bearing features a back-to-back (DB) matched arrangement and a 40-degree contact angle, making it suitable for demanding industrial applications requiring high load capacity and stable rotational performance.
Manufacturer: NTN
Type: Duplex Angular Contact Ball Bearing
Model: 7312 BL1DB
Basic Load Ratings
Speed Ratings
| Bore Diameter (d) | 60 mm |
| Outer Diameter (D) | 130 mm |
| Width (B) | 31 mm |
| Contact Angle | 40 degrees |
| Dynamic Load Rating (Cr) | 99.5 kN |
| Static Load Rating (C0r) | 66 kN |
| Fatigue Load Limit | 5.15 kN |
| Limit Speed (Oil Lubrication) | 6800 rpm |
| Limit Speed (Grease Lubrication) | 5100 rpm |
| Cage | Glass fiber |
| Matched Arrangement | Back-to-back arrangement (DB) |
