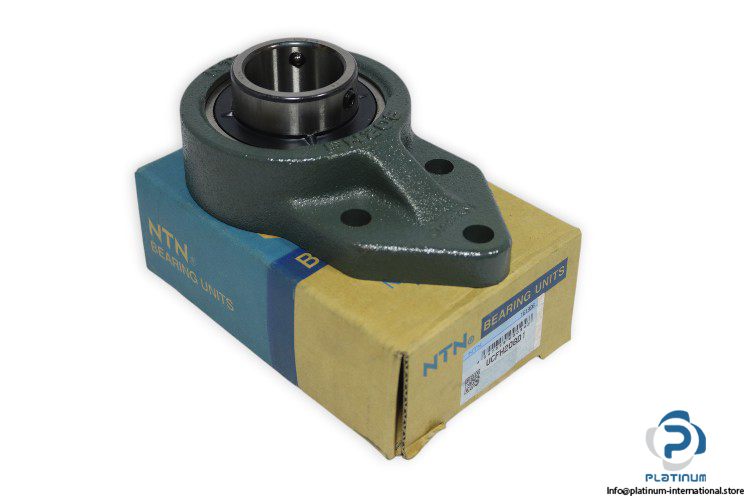

NTN UCFH208D1 Three Bolt Flanged Unit
Drei-Schrauben-Flansch-Einheit Die NTN UCFH208 D1 Flansch-Einheit verfügt über ein FC 208 Gehäuse aus Gusseisen und ein UC 208 Lager, das Präzision, Haltbarkeit und Stabilität für industrielle Anwendungen gewährleistet. Entwickelt für Hochlastleistung mit einem Drei-Schrauben-Flanschmontagesystem.
NTN UCFH208 D1 Three-Bolt Flanged Unit
The NTN UCFH208 D1 Three-Bolt Flanged Unit is a reliable and durable component designed for industrial applications requiring precision and stability. This unit features a robust FH 208 housing and a high-performance UC 208 bearing, ensuring consistent performance even in demanding environments.
Manufacturer: NTN
Type: THREE BOLT FLANGED UNIT
Model: UCFH208 D1
Engineered for strength and precision, the NTN UCFH208 D1 is ideal for industrial systems requiring stability, durability, and reliable operation in high-load and high-speed conditions.

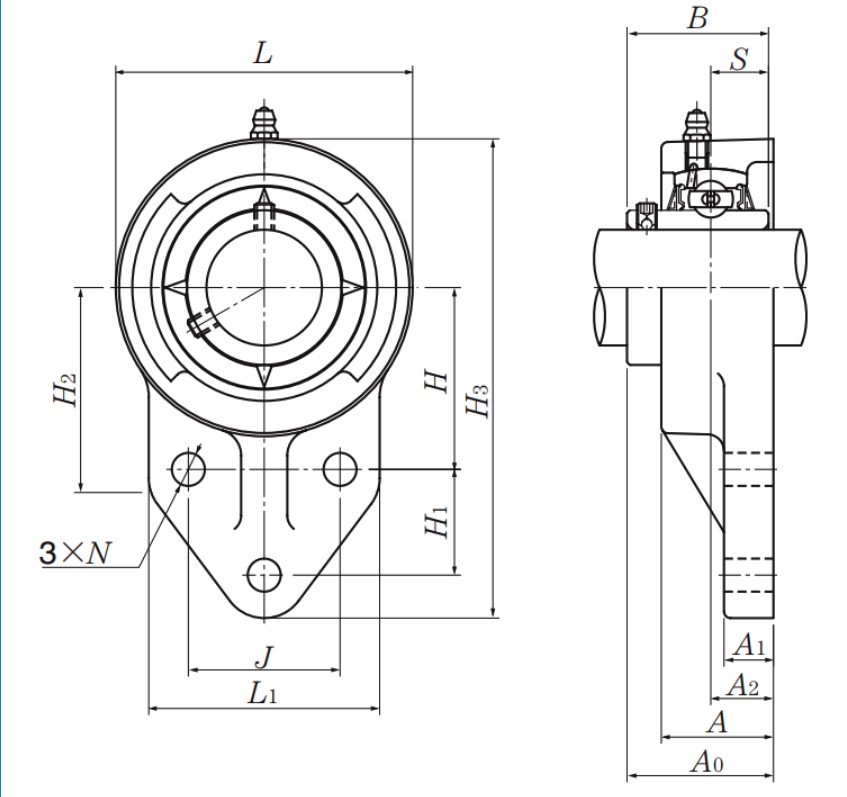

| Housing No. | FH 208 |
| Bearing No. | UC 208 |
| Bore Diameter | 40 mm |
| Overall Length | 100 mm |
| Overall Width | 51.2 mm |
| Width of Inner Ring | 49.20 mm |
| J | 50 mm |
| H1 | 41 mm |
| Overall Height | 164 mm |
| Static Load Rating | 17800 N |
| Dynamic Load Rating | 29100 N |
| Rotational Speed | 3700 RPM |
| Mounting Type | Three-Bolt Flange |
| Locking Device | Set Screws |
| Material | Cast Iron |
| Lubrication Type | D1 |
