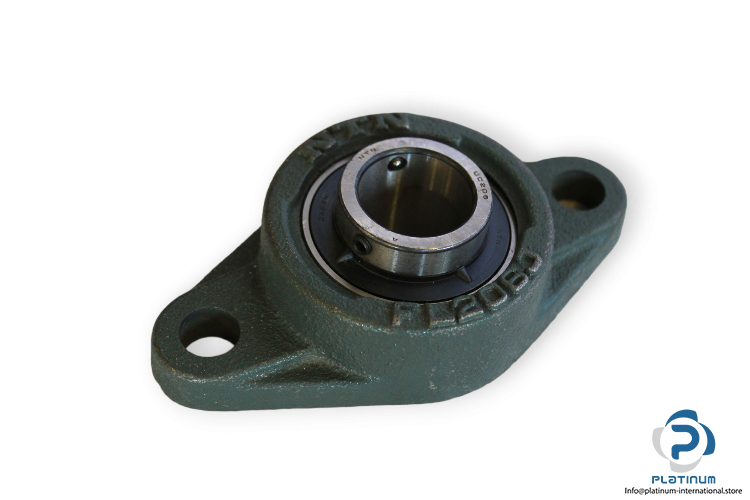

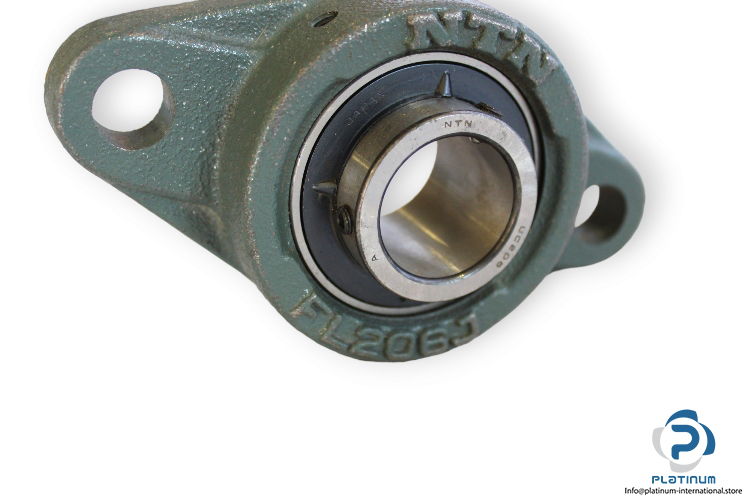

NTN Ucfl 206 Oval Flange Ball Bearing Unit

Name: NTN UCFL 206 OVAL FLANGE BALL BEARING UNIT
SKU: 1005323
Availability: LimitedAvailability

ntn-UCFL-206-oval-flange-ball-bearing-unit-(new)-1

ntn-UCFL-206-oval-flange-ball-bearing-unit-(new)-2

Neu

Auf Lager5 EinheitenVersandbereit

Hersteller: NTN Typ: Ovales Flansch-Kugellagergehäuse Modell: UCFL 206J Lagernummer: UC206 Gehäusenummer: FL206

Hersteller

NTN?

SKU

1005323

Kategorie

Plummer Block Housing Units

Zustand

Neu

30 bearing bearings flanged Housing mm NTN Oval Two-Bolt Unit Units Žhousing

Umfangreiches Lager

Weltweiter Versand

Experten-Support

Qualitätsgarantie

Manufacturer: NTN
Type: Oval flange ball bearing unit
Model: UCFL 206J
Bearing Number: UC206
Housing Number: FL206

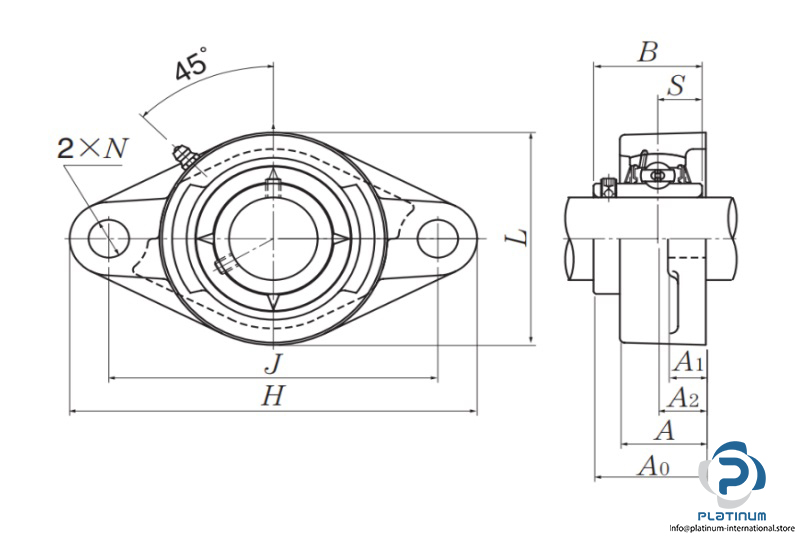

Dimensions
Bore Diameter d: 30 mm
Overall Length L: 80 mm
Overall Height H: 148 mm
Width of inner ring B: 38.1 mm
Distance Between Attachment Bolts J: 117 mm
Overall unit width A₀: 40.2 mm
Dynamic Load Rating: 19500 N
Static Load Rating: 11300 N
Maximum Rotational Speed: 4900 rpm
Mounting: Oval Flange
Housing Material: Cast Iron
Locking Device: Set Screw
