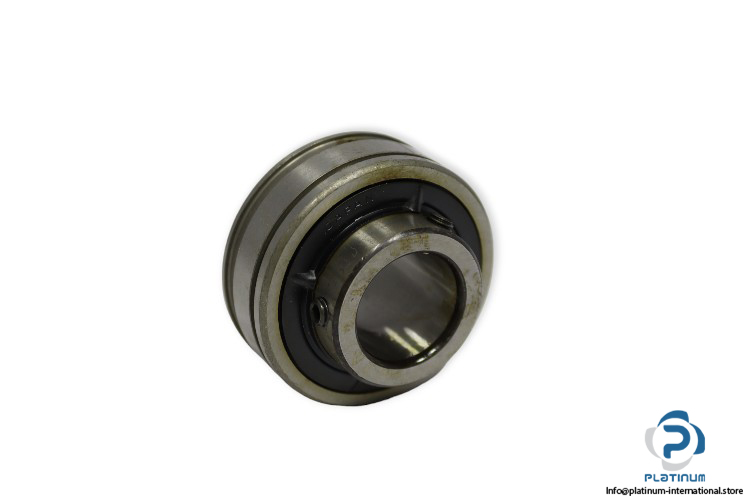

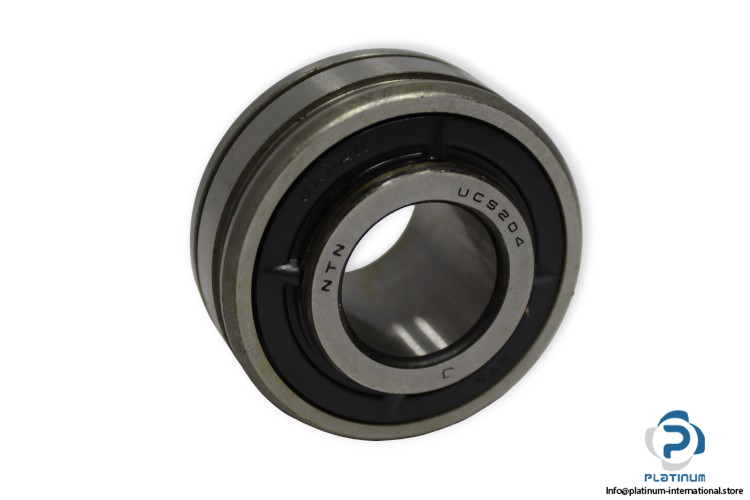

NTN UCS204 Insert Ball Bearing
Manufacturer: NTN
Type: Insert Ball Bearing
Model: UCS 204

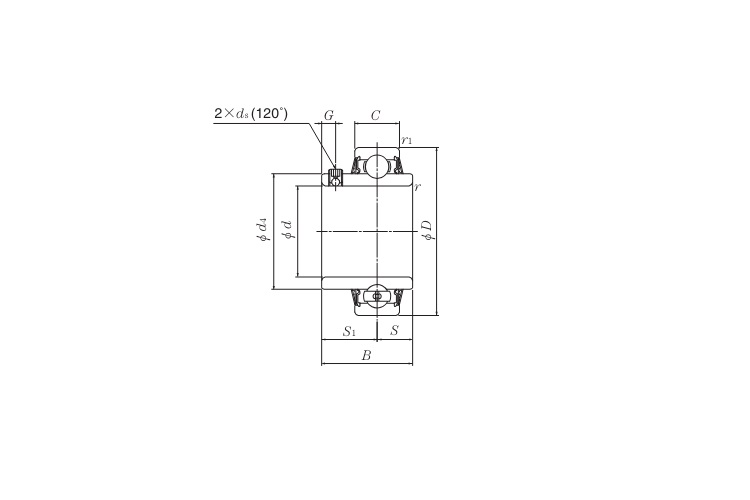

Dimensions
shaft diameter d: 20 mm
Outer diameter D: 47 mm
Width of inner ring B: 31 mm
Width of outer ring C: 17 mm
Set screw size: M5x0.8
Basic load ratings:
Dynamic C: 12800 N
Static C0: 6650 N
Locking device: Set Screw
