Bearings Housing Units Insert Bearing

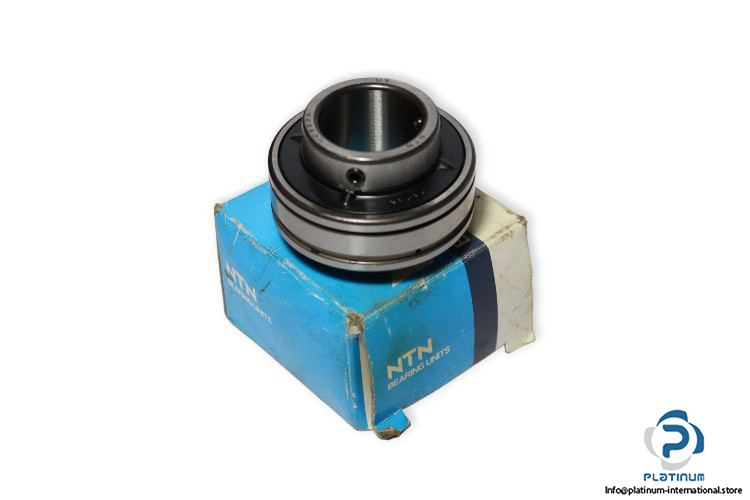

NTN UCS205LD1N Insert Ball Bearing

Name: NTN UCS205LD1N INSERT BALL BEARING
SKU: 1030374
Availability: LimitedAvailability

ntn-UCS205LD1N-insert-ball-bearing-(new)-(carton)

ntn-UCS205LD1N-insert-ball-bearing-(new)-(carton)-1

ntn-UCS205LD1N-insert-ball-bearing-(new)-(carton)-2

Neu

Auf Lager4 EinheitenVersandbereit

Hersteller: NTN Typ: Einbaulager Modell: UCS 205 LD1N

Hersteller

NTN?

SKU

1030374

Kategorie

Insert Bearing

Zustand

Neu

25 Ball bearing bearings insert mm NTN

Umfangreiches Lager

Weltweiter Versand

Experten-Support

Qualitätsgarantie

Manufacturer: NTN
Type: Insert Ball Bearing
Model: UCS 205 LD1N

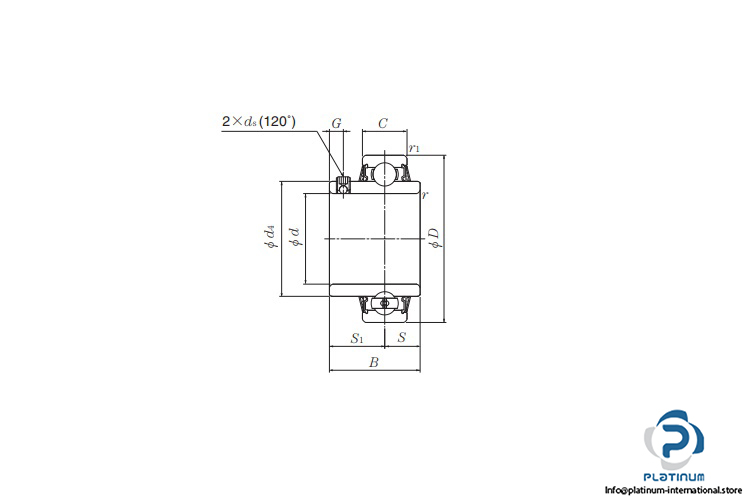

Dimensions
shaft diameter d: 25 mm
Outer diameter D: 52 mm
Width of inner ring B: 34.1 mm
Width of outer ring C: 17 mm
Set screw size: M5x0.8
Basic load ratings:
Dynamic C: 14000 N
Static C₀: 7850 N
Locking device: Set Screw
Lubrication: D1, Relubricatable type
Suffix: N, Snap Ring Groove
