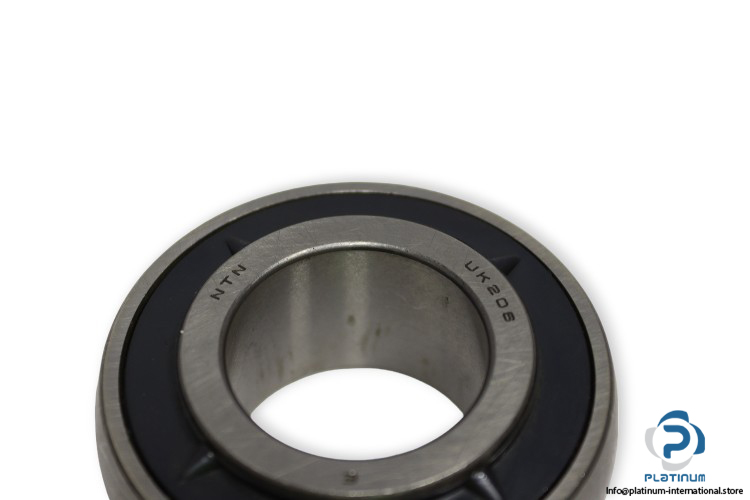

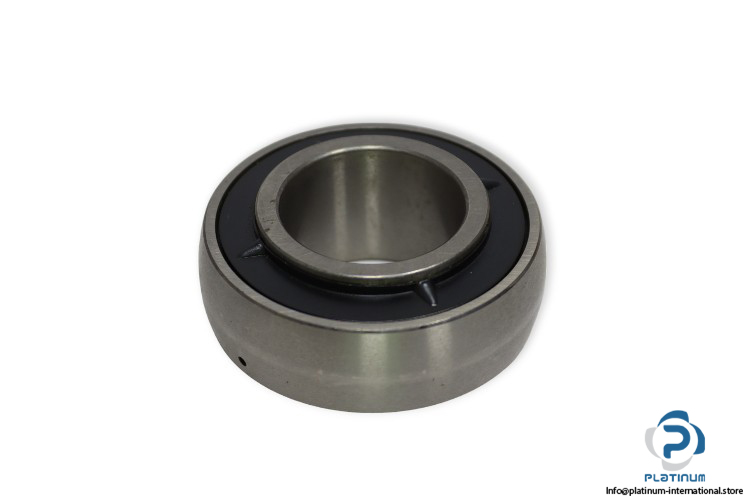

NTN UK206 Insert Ball Bearing
Manufacturer: NTN
Type: Insert Ball Bearing, Adapter Type
Model: UK 206

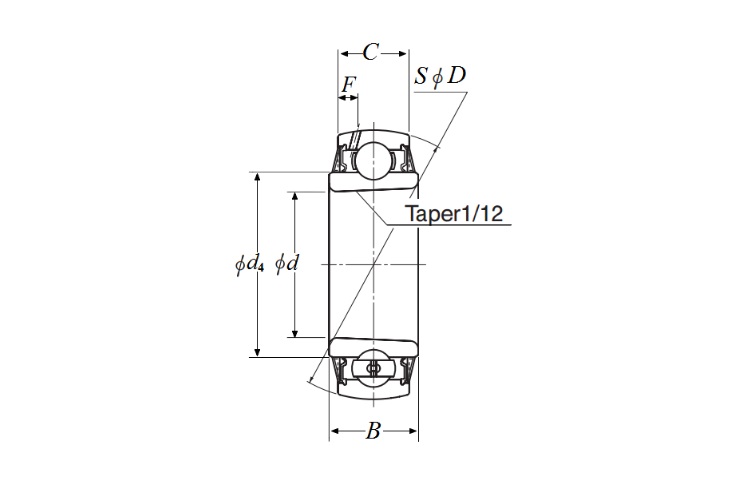

Dimensions
shaft diameter d: 30 mm
Outer diameter D: 62 mm
Width of inner ring B: 26 mm
Width of outer ring C: 19 mm
Basic load ratings:
Dynamic C: 19500 N
Static C0: 11300 N
Bore Type: Tapered (1:12)
Seal Type: Contact
Enclosure: Double Sealed
Locking device: Adapter
Material: Through Hardened Steel
